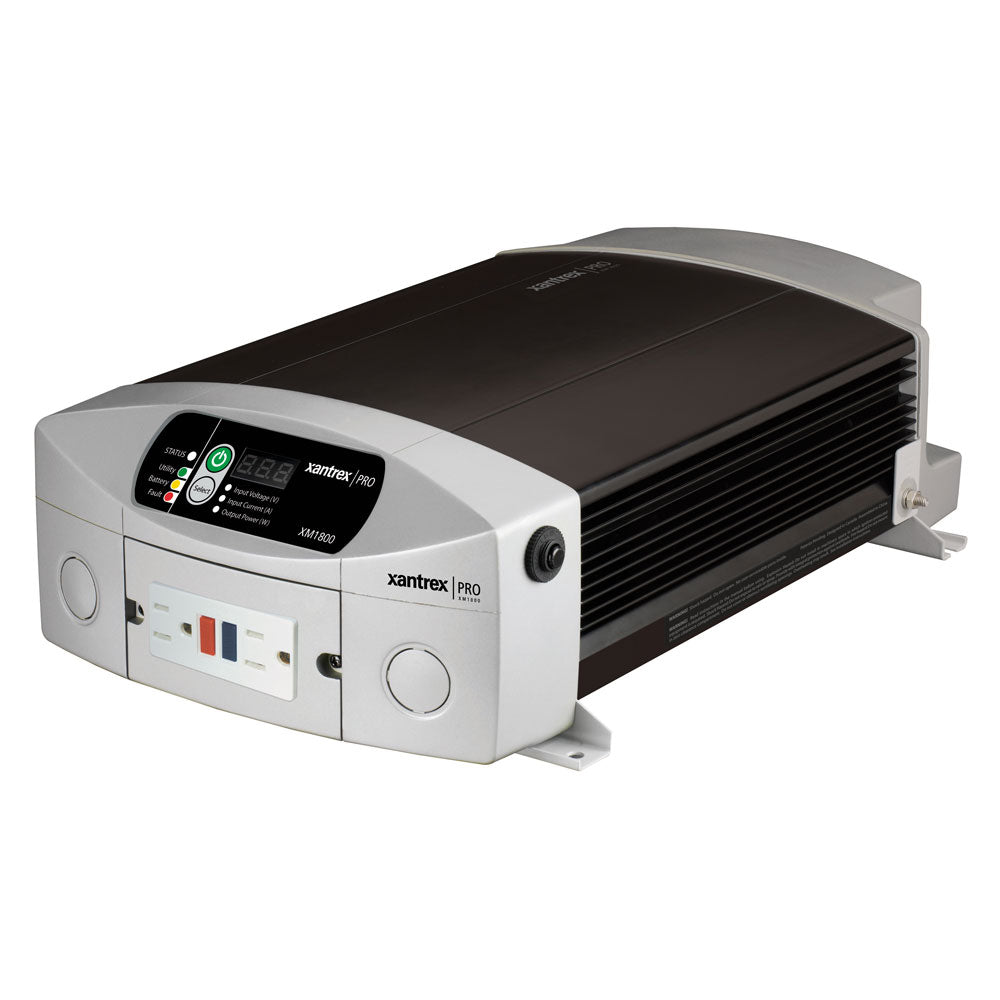

Xantrex XM1800 Pro Series Inverter

The Xantrex PRO Series Inverters are expertly engineered to provide reliable and efficient power solutions tailored for marine and boating electrical systems. Whether you're navigating open waters or docked at a marina, these inverters ensure your onboard electronics and appliances operate smoothly, even in the absence of shore power or a generator.

Description

Designed to integrate seamlessly with existing battery chargers or generators, the Xantrex PRO Series Inverters deliver modified sine wave power ideal for running small appliances, televisions, and other essential marine electronics from your boat’s battery bank. Perfectly suited for the demanding conditions of marine environments, these inverters combine user-friendly features with exceptional versatility, making them an indispensable component of your boat’s electrical system.

Featuring a detachable digital remote control, the PRO Series allows you to monitor inverter performance, AC source, and battery status from a convenient location onboard. The built-in transfer switch automatically detects changes in generator or shore power status, ensuring a constant and uninterrupted power supply. The 1800W model is built to withstand the rigorous demands of marine use, meeting FCC Class B regulations to minimize interference with other onboard electronics and UL 458 certification to adhere to strict marine safety standards.

Engineered for flexible installation, the PRO Series Inverters can be mounted either horizontally or vertically, easily fitting into any compartment layout on your boat. The conformal coated boards enhance durability by protecting against moisture and corrosive marine environments, ensuring long-lasting performance even in the most challenging conditions.

Performance Features

• Reliable power supply for TVs, small appliances, and other essential marine electronics
• Built-in 15A circuit breaker provides protection for GFCI-connected loads
• Supports up to 25A pass-through for hardwired marine loads
• Digital remote control displays real-time power output, AC source, and battery voltage
• Detachable remote control can be conveniently mounted within easy view
• Conformal coated electronics offer enhanced moisture resistance for marine environments
• Easy hard-wiring using a terminal strip or the included GFCI receptacle

Protection Features

• Battery over-voltage and under-voltage protection safeguards your boat’s battery system
• Over temperature shutdown prevents overheating during extended use
• Automatic overload protection avoids damage from excessive power draw
• Short-circuit protection enhances overall system safety
• Ground fault protection provides additional safety against electrical faults

Specifications

Feature	Details
DC Connection Type	Hardwire
GFCI	Yes
Inverter Input Voltage	12V
Outlet Quantity	1 Duplex GFCI
Inverter Surge Rating	3600W
Waveform	Modified Sine Wave
Inverter Output Voltage	120V
AC Connection Type	Hardwire
Continuous Output Wattage	1800W
Dimensions	6" H x 10" W x 18" L
Weight	13 lbs
UPC	715535113537

Compliance and Certifications

The Xantrex PRO Series Inverters comply with FCC Class B regulations, ensuring minimal interference with other onboard electronics. Additionally, they are UL 458 certified, meeting stringent marine safety standards to guarantee reliable and safe operation in marine environments.

Installation and Use

Installing the Xantrex PRO Series Inverter is straightforward, thanks to its versatile mounting options and user-friendly design. Whether mounted horizontally or vertically, these inverters fit seamlessly into your boat’s compartment, allowing for efficient use of space. The included GFCI receptacle simplifies the hard-wiring process, making installation quick and hassle-free.

Safety Warning

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), which is known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

Downloads

• Owner's Manual (PDF)
• Brochure (PDF)
