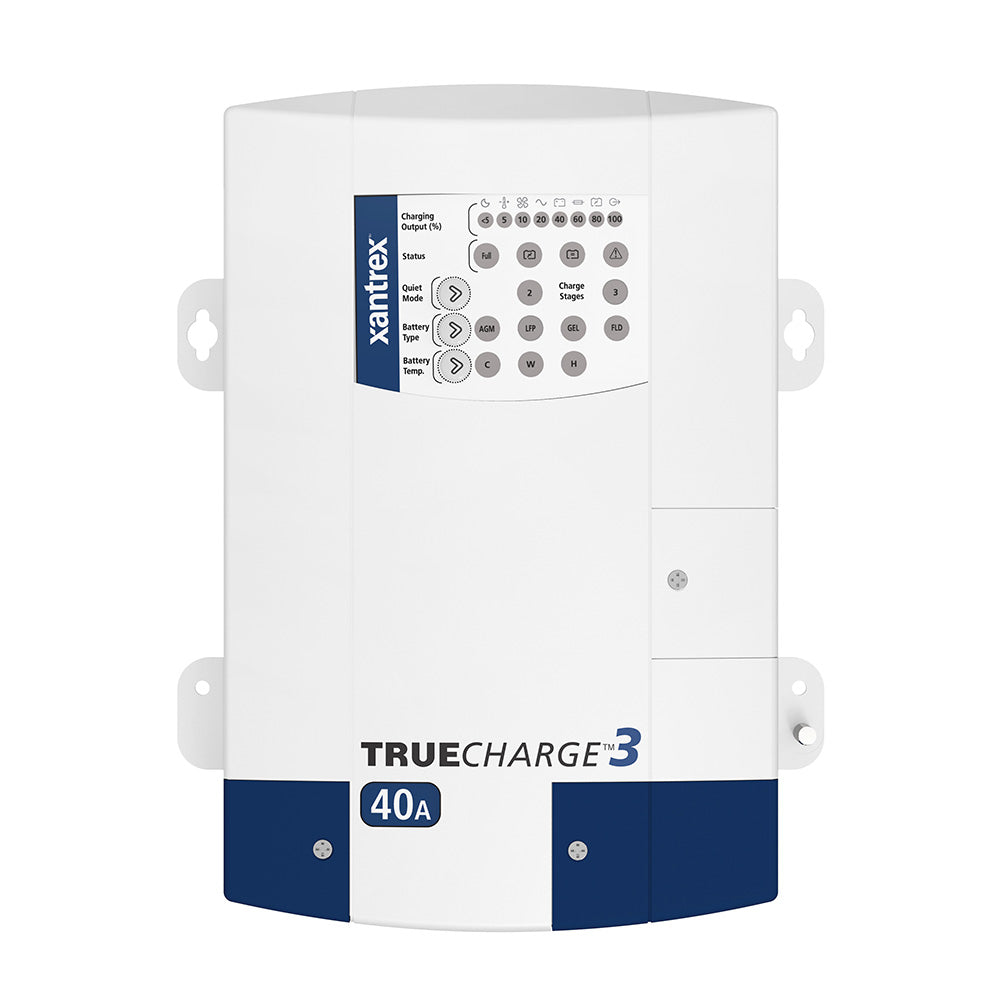

Xantrex TRUEcharge3 40A 3 Bank Battery Charger - 12V

The TRUEcharge™3 40A 3 Bank Battery Charger is the ultimate solution for marine enthusiasts, providing reliable, efficient, and versatile charging for your boat’s battery systems. Its compact and robust design ensures seamless integration into your vessel, while advanced features maintain your batteries optimally even in demanding marine environments.

Advanced Charging Technology

TRUEcharge™3 leads the industry with its ultra-compact footprint and state-of-the-art multistage charging algorithms. Designed to meet global safety and regulatory standards, this charger minimizes electrical interference and maximizes efficiency with power factor correction. Its inherent drip-proof design allows for flexible mounting positions, making it ideal for the dynamic conditions aboard your boat. Additionally, TRUEcharge™3 is fully compatible with lithium-ion batteries, offering versatility for various power storage needs.

Global Compatibility for Marine Applications

Whether you're cruising the local waters or voyaging internationally, the TRUEcharge™3 adapts effortlessly to different power standards. It accepts a wide input range of 90–265 Vac and 47–63 Hz, ensuring reliable performance even with variable shore power quality. The easy-to-read display on the 12V models can be upgraded with an optional remote panel, providing convenient monitoring of your battery status from anywhere on board. Built-in surge and spike protection safeguard your charger against erratic AC power lines commonly encountered in marine settings.

Key Features

• Microprocessor-controlled, multistage charging algorithms for optimal battery health
• Configurable for two and three-stage charging processes
• Battery equalization feature to balance cell voltages
• Supports flooded, gel, AGM, and lithium-ion battery types
• Parallel stacking capability with a remote panel (optional)
• Can revive deeply discharged batteries to extend their lifespan
• Quiet mode operation for a noiseless charging experience

Comprehensive Protection Features

• Reverse-battery polarity protection to prevent incorrect connections
• Drip-proof design for reliable operation in wet marine environments
• DC over-voltage protection to prevent battery damage
• Over-temperature protection to ensure safe operation
• Circuit breaker protection for added electrical safety

Three-Stage Charging for Optimal Battery Maintenance

The TRUEcharge™3 employs a meticulous three-stage charging process to ensure your marine batteries are maintained efficiently and safely:

1. Bulk: Delivers 70–80% of the battery’s state-of-charge at the fastest possible rate.
2. Absorption: Replenishes the remaining 20–30% of charge, completing the battery charge at a controlled, safe rate.
3. Float: Maintains the battery at full charge by holding a reduced and constant voltage, preventing overcharging and damage.

Power Factor Corrected (PFC) Charging

TRUEcharge™3's PFC technology ensures efficient use of shore power, leaving more AC power available for your boat’s electrical devices and appliances. This reduces the risk of tripping shore power breakers, making it an ideal choice for marine settings where power management is crucial.

Electrical Specifications

General Specifications

Regulatory Compliance

The TRUEcharge™3 meets all relevant safety and efficiency standards, including:

• CSA 60335-2-29
• CE Marked for the Low Voltage Directive and EMC Directive
• UL1564
• IEC 60335-2-29
• IP32 per EN.IEC 60529
• FCC Part 158
• Canada ICES-003 Class B emissions limits
• ABYC A-31
• DOE/CEC energy efficiency compliant

Additional Specifications

• Charger Output - Amps: 40 A
• Charger Output Voltage: 12 V
• Charging Banks: 3
• Portable: No
• Box Dimensions: 6"H x 11"W x 14"L
• Weight: 6.1 lbs
• UPC: 715535920814

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
