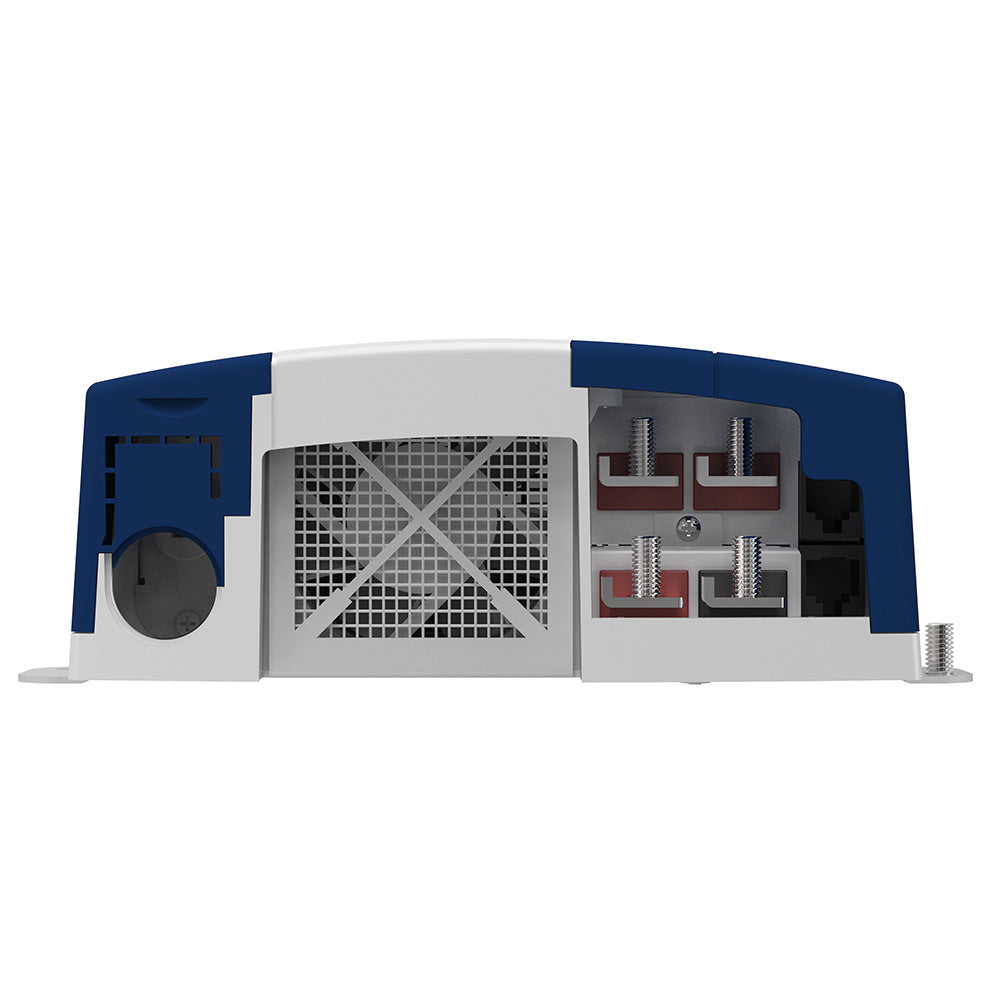

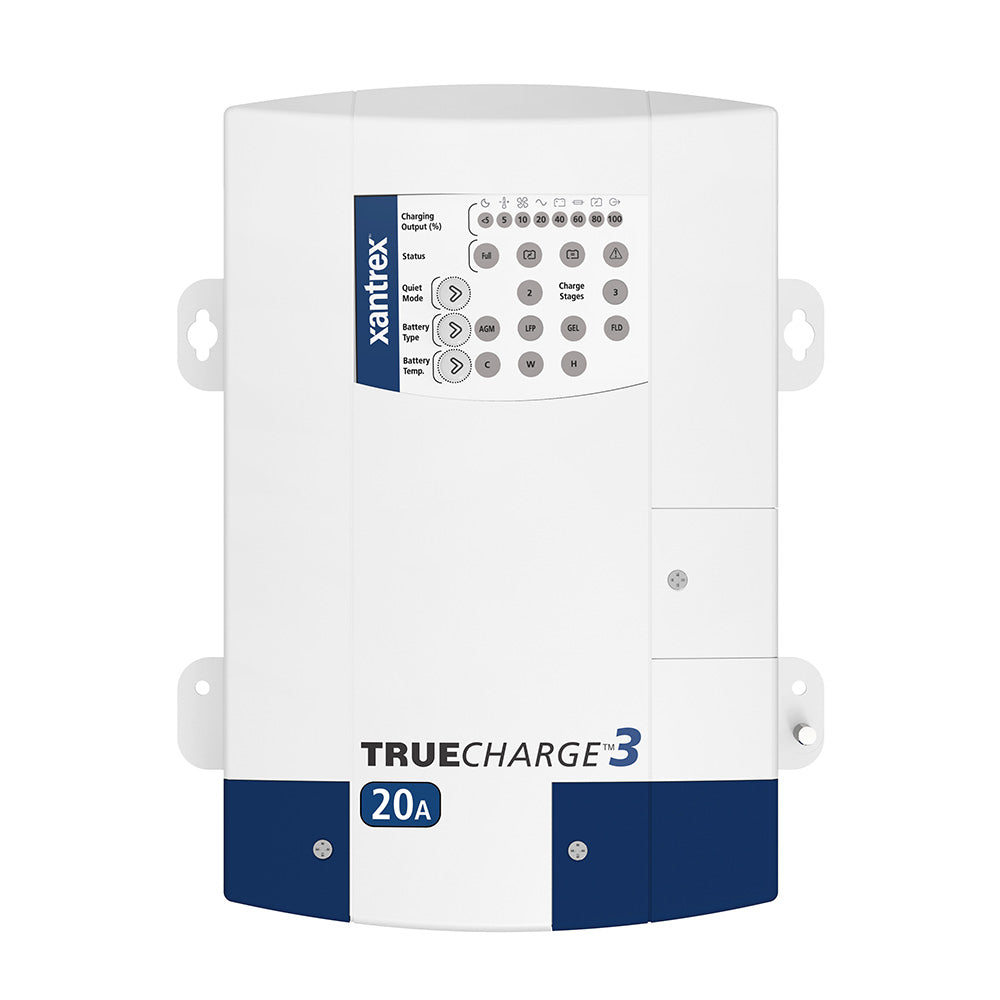

Xantrex TRUEcharge3 20A 3 Bank Battery Charger - 12V

Keep your marine batteries perfectly charged with the TRUEcharge™3 20A 3 Bank Battery Charger - 12V. Engineered for the demanding marine environment, this ultra-compact charger offers efficiency, reliability, and versatility to ensure your boating adventures are powered smoothly and safely.

Advanced Charging Technology for Marine Applications

The TRUEcharge™3 leads the industry with its small footprint and ultra-compact design, making it an ideal choice for marine and boating setups where space is at a premium. This charger not only meets global safety and regulatory standards but also features low electrical interference and efficient power factor-corrected multistage charging, ensuring optimal performance for your boat’s battery systems.

Key Features

• Microprocessor-controlled, multistage charging algorithms for precise battery management
• Supports two and three-stage charging settings to extend battery life
• Battery-equalization feature to maintain balanced charge across all batteries
• Compatible with flooded, gel, AGM, and lithium-ion batteries, including LiFePO4
• Parallel stacking capability (remote panel required) for expanding charging capacity
• Ability to charge deeply drained batteries, bringing them back to full capacity
• Added quiet mode for minimal operational noise onboard

Enhanced Protection Features

• Reverse-battery polarity protection to prevent damage from incorrect connections
• Drip-proof design ensures reliable performance in harsh marine conditions
• DC over-voltage protection safeguards your batteries from excess voltage
• Over-temperature protection maintains optimal operating temperatures
• Circuit breaker protection adds an extra layer of safety against electrical faults

Three-Stage Charging for Optimal Battery Health

Experience the benefits of multistage charging, which delivers the right amount of voltage and current to your batteries through three automatic stages, minimizing wear and tear while maximizing battery lifespan:

1. Bulk: Quickly restores 70–80% of the battery’s state of charge at the fastest possible rate.
2. Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to full charge safely and efficiently.
3. Float: Reduces and maintains the voltage to prevent overcharging, ensuring batteries remain fully charged without damage.

Power Factor Corrected (PFC) Charging

The TRUEcharge™3’s Power Factor Corrected (PFC) technology optimizes the use of shore power, allowing more AC power to be available for running your boat’s electrical devices and appliances. This reduces the likelihood of tripping shore power breakers and enhances overall power management onboard.

Electrical Specifications

General Specifications

Regulatory Approvals

The TRUEcharge™3 20A 3 Bank Battery Charger is certified to meet a range of international safety and performance standards, including:

• CSA 60335-2-29
• CE Marked for the Low Voltage Directive (safety) and the EMC Directive
• UL1564
• IEC 60335-2-29
• IP32 per EN.IEC 60529
• FCC Part 158
• Canada ICES-003 Class B emissions limits
• ABYC A-31
• DOE/CEC energy efficiency compliant

Additional Information

Please note: This product may not be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

Product Specifications

Resources

For more information, download the following documents:

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
