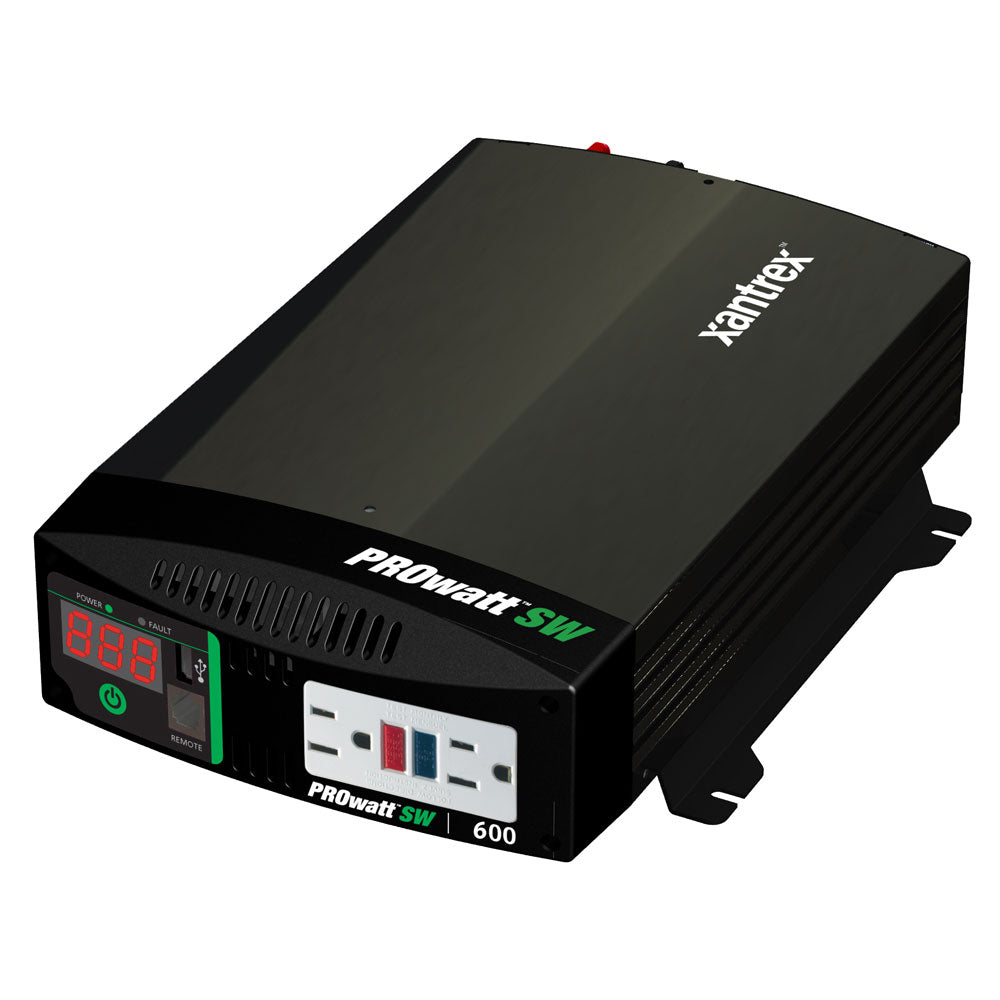

Xantrex PROwatt SW600 - True Sine Wave Inverter

The PROwatt SW Sine Wave Inverter is the perfect power solution for your marine adventures, providing reliable and pure sine wave electricity to keep all your essential devices running smoothly on board. Whether you're outfitting your boat, yacht, or marine trailer, this inverter ensures seamless operation of your electrical systems with efficiency and safety.

Key Features

• Power Output: 540W continuous and 1200W surge capacity handle a wide range of marine electronics.
• Digital Display: Monitor DC voltage and output power with the built-in display for easy management.
• USB Connectivity: Convenient USB port to charge your smartphones, tablets, and other USB-powered devices.
• Dual GFCI Receptacles: Enhanced safety with Ground Fault Circuit Interrupter protection for all AC outlets.
• Heavy-Duty Terminals: Secure and trouble-free battery connections designed for marine environments.
• Remote Control Option: Available remote switch with ignition lockout to automatically shut down the inverter when the boat’s ignition is off.
• Reliable Warranty: Two-year warranty ensures long-term performance and peace of mind.

Advanced Protection Features

• Low Voltage Shutdown: Protects your battery by shutting down at 10.5 Vdc.
• Low Voltage Alarm: Alerts you when the voltage drops to 11.0 Vdc.
• Over Voltage Protection: Prevents damage by shutting down at 15.5 Vdc.
• Overload Shutdown: Automatically shuts down to protect against excessive load.
• Over Temperature Shutdown: Maintains safe operating temperatures by shutting down when necessary.
• GFCI Protection: Ensures safe operation around water by preventing electrical faults.

Electrical Specifications

Specification	Details
Continuous Power	540W
Surge Capacity (Peak)	1200W
DC Input	12 Vdc (nominal)
AC Output Frequency	60 ± 0.5 Hz
AC Output Voltage Range	104 - 127 Vac
USB Output	5 V / 500 mA
Output Waveform	True Sine Wave
Optimum Efficiency	90%
No Load Current Draw	< 0.6 A
Input Voltage Range	10.5 - 15.5 Vdc

General Specifications

Specification	Details
Operating Temperature Range	32°F - 104°F (0°C - 40°C)
AC Receptacle	Dual GFCI
USB Receptacle	Single Port (Type A)
DC Connection	Hardwire
Recommended DC Fuse	150 A
Digital Display	DC voltage, AC output power & error codes
Dimensions (H x W x L)	3.5" x 8.7" x 12.2" (89 x 220 x 310mm)
Weight	6.5lb (3.0kg)
Warranty	Two years

Technical Specifications

• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Quantity: 1 Duplex GFCI
• Inverter Surge Rating: 1200W
• Inverter Input Voltage: 12V
• Waveform: True Sine Wave
• AC Connection Type: Hardwire
• Inverter Output Voltage: 120V
• Inverter Continuous Output Wattage: 540W
• Box Dimensions: 6"H x 10"W x 15"L
• Weight: 6.8 lbs
• UPC: 715535894061

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources:

• Quick Guide (PDF)
• Owner's Manual (PDF)
