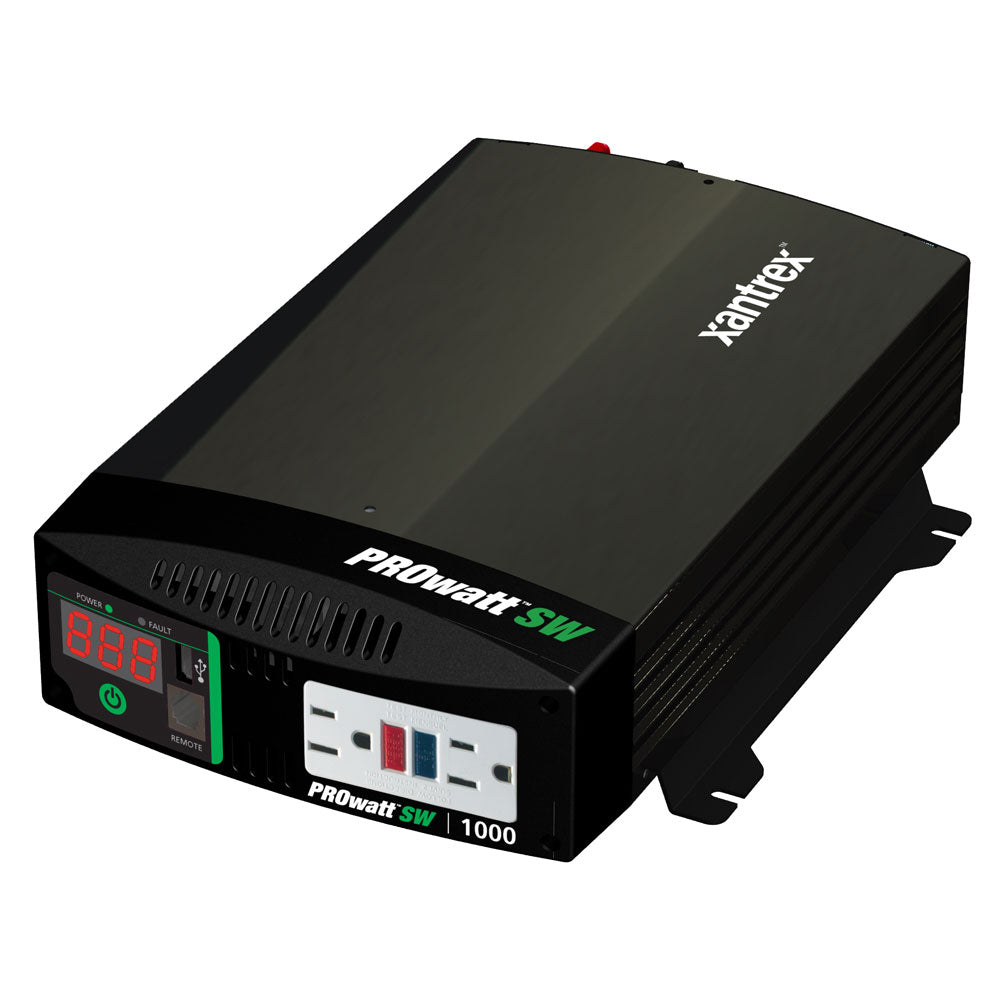

Xantrex PROwatt SW1000 - True Sine Wave Inverter

Enhance your marine adventures with the PROwatt SW Sine Wave Inverter, designed specifically for boating and marine applications. This compact and robust inverter delivers reliable pure sine wave power, ensuring your essential electrical devices operate smoothly on the open water.

Why Choose the PROwatt SW Sine Wave Inverter?

The PROwatt SW series stands out in the marine industry by providing a perfect balance of affordability and high-quality performance. Whether you're powering navigation systems, entertainment devices, or essential appliances, this inverter ensures consistent and safe power delivery, even for demanding electrical loads.

Key Features

• 900W Continuous Power with a 2000W Surge Capacity to handle peak power demands
• Integrated digital display showing DC volts and output power for easy monitoring
• Convenient USB port for charging your mobile devices on the go
• Dual GFCI AC receptacles providing safe and reliable power outlets
• Heavy-duty terminals ensure a stable and trouble-free battery connection
• Optional ON/OFF remote switch with ignition lockout to automatically shut down when the boat's ignition is off
• Peace of mind with a two-year warranty

Advanced Protection Features

Safety is paramount on the water. The PROwatt SW inverter is equipped with multiple protection mechanisms to safeguard both your inverter and your boat's electrical system:

• Low Voltage Shutdown at 10.5 Vdc to prevent battery drain
• Low Voltage Alarm at 11.0 Vdc for timely alerts
• Over Voltage Protection at 15.5 Vdc to protect against voltage spikes
• Overload Shutdown to prevent damage from excessive power usage
• Over Temperature Shutdown ensuring the inverter operates within safe temperature ranges
• Reliable GFCI protection to prevent electrical shocks

Electrical Specifications

Specification	Details
Continuous Power	900W
Surge Capacity (Peak)	2000W
DC Input	12 Vdc (nominal)
AC Output Frequency	60 ± 0.5 Hz
AC Output Voltage Range	104 - 127 Vac
USB Output	5 V / 500 mA
Output Waveform	True Sine Wave
Optimum Efficiency	90%
No Load Current Draw	< 0.6 A
Input Voltage Range	10.5 - 15.5 Vdc

General Specifications

Specification	Details
Operating Temperature Range	32°F - 104°F (0°C - 40°C)
AC Receptacle	Dual GFCI
USB Receptacle	Single Port (Type A)
DC Connection	Hardwire
Recommended DC Fuse	150 A
Digital Display	DC voltage, AC output power & error codes
Dimensions (H x W x L)	3.5" x 8.7" x 13.1" (89 x 220 x 339mm)
Weight	7.2lb (3.3kg)
Warranty	Two years

Additional Specifications

Specification	Details
DC Connection Type	Hardwire
GFCI	Yes
Outlet Quantity	1 Duplex GFCI
Inverter Surge Rating	2000W
Inverter Input Voltage	12V
Waveform	True Sine Wave
Inverter Output Voltage	120V
AC Connection Type	Hardwire
Inverter Continuous Output Wattage	900W
Box Dimensions	6"H x 10"W x 15"L
Weight	8.55 lbs
UPC	715535894146

Compliance and Safety

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP), known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
