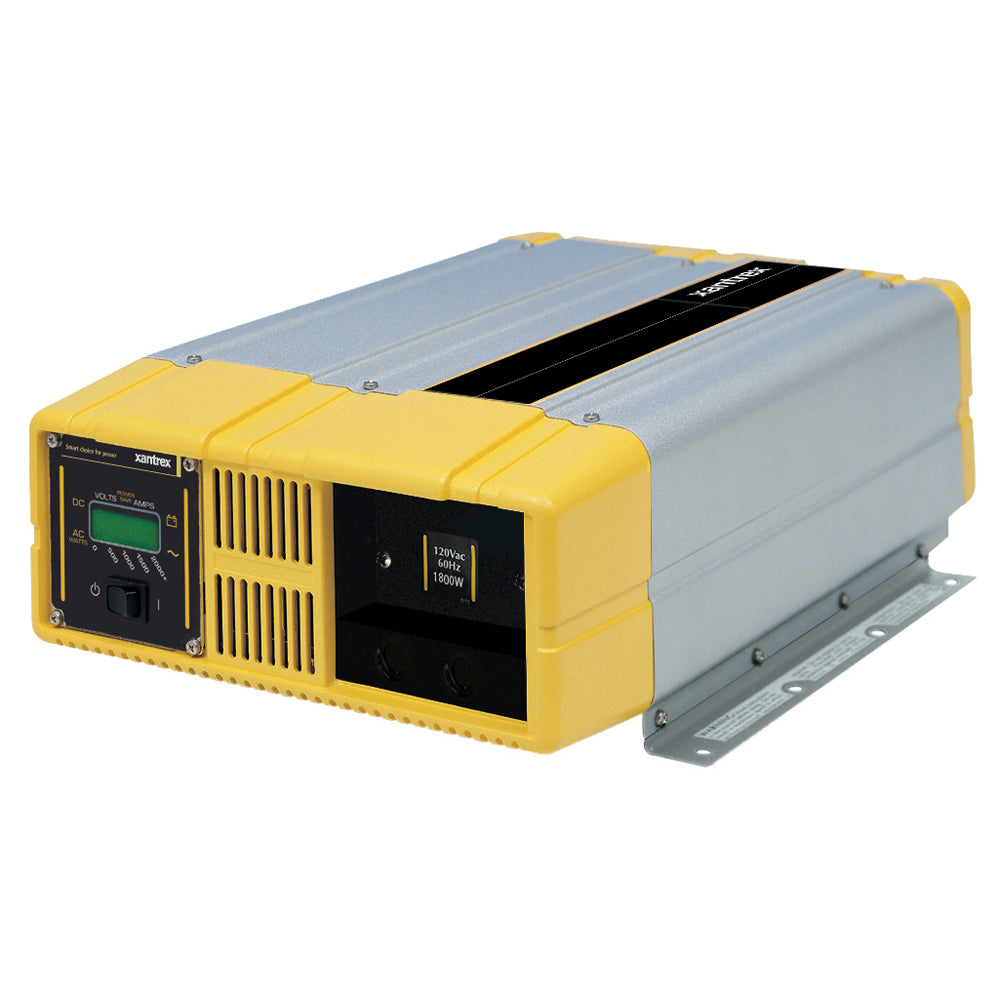

Xantrex PROsine 1800/24/120 Hard Wired Inverter

Experience reliable and clean power on your boat with the PROsine 1800 Power Inverter. Designed specifically for marine applications, this inverter delivers true sine wave AC power identical to your utility supply, ensuring optimal performance for all your sensitive electronics on board.

Superior True Sine Wave Output

The PROsine 1800 Inverter provides 1800 watts of continuous sine wave AC power from a DC source, making it perfect for powering a wide range of marine electronics. With less than 3% total harmonic distortion, it ensures that your televisions, audio systems, GPS units, and other sensitive devices operate smoothly and efficiently.

Key Features

• Power Capacity: 1800W continuous output with a surge capability of 2900W
• Output Quality: True sine wave AC output, crystal controlled for clean power
• Remote Monitoring: Removable LCD display that can be mounted remotely for easy control and monitoring
• Easy Installation: Unique DC terminals offer 180-degree connections, ideal for tight marine spaces
• Energy Efficient: Powersave mode draws only 1.5 watts when no load is connected
• Warranty: Backed by a two-year warranty for peace of mind

Advanced Protection Features

Ensure the safety of your marine electrical system with comprehensive protection features:

• Over temperature shutdown to prevent overheating
• Automatic overload protection to safeguard against excessive loads
• Over voltage and under voltage protection for consistent power stability
• Short circuit and AC backfeed protection to prevent electrical faults

Customization Options

Tailor the PROsine 1800 Inverter to fit your specific marine needs with a variety of options:

• Available in a 24-volt model for compatibility with marine battery systems
• Choose between a GFCI AC outlet or an AC hardwire terminal strip for permanent installation
• Optional 15 A transfer switch available with the hardwire option for seamless power switching
• Remote interface kit available for mounting the display module away from the inverter

Compact and Lightweight Design

Optimized for marine environments, the PROsine 1800 Inverter is lighter and more compact than comparable models. Utilizing high-frequency switching technology, it minimizes space usage without compromising on power, making it an excellent choice for boats with limited installation space.

Product Specifications

Specification	Details
Inverter Output Voltage	120V
AC Connection Type	Hardwire
DC Connection Type	Hardwire
GFCI	Yes
Outlet Quantity	1 Duplex GFCI
Inverter Surge Rating	3600W
Inverter Input Voltage	24V
Waveform	True Sine Wave
Continuous Output Wattage	1800W
Dimensions	7" H x 13" W x 19" L
Weight	18.8 lbs
UPC	715535618513

Additional Resources

Quick Guide (PDF)
Owner's Manual (PDF)
