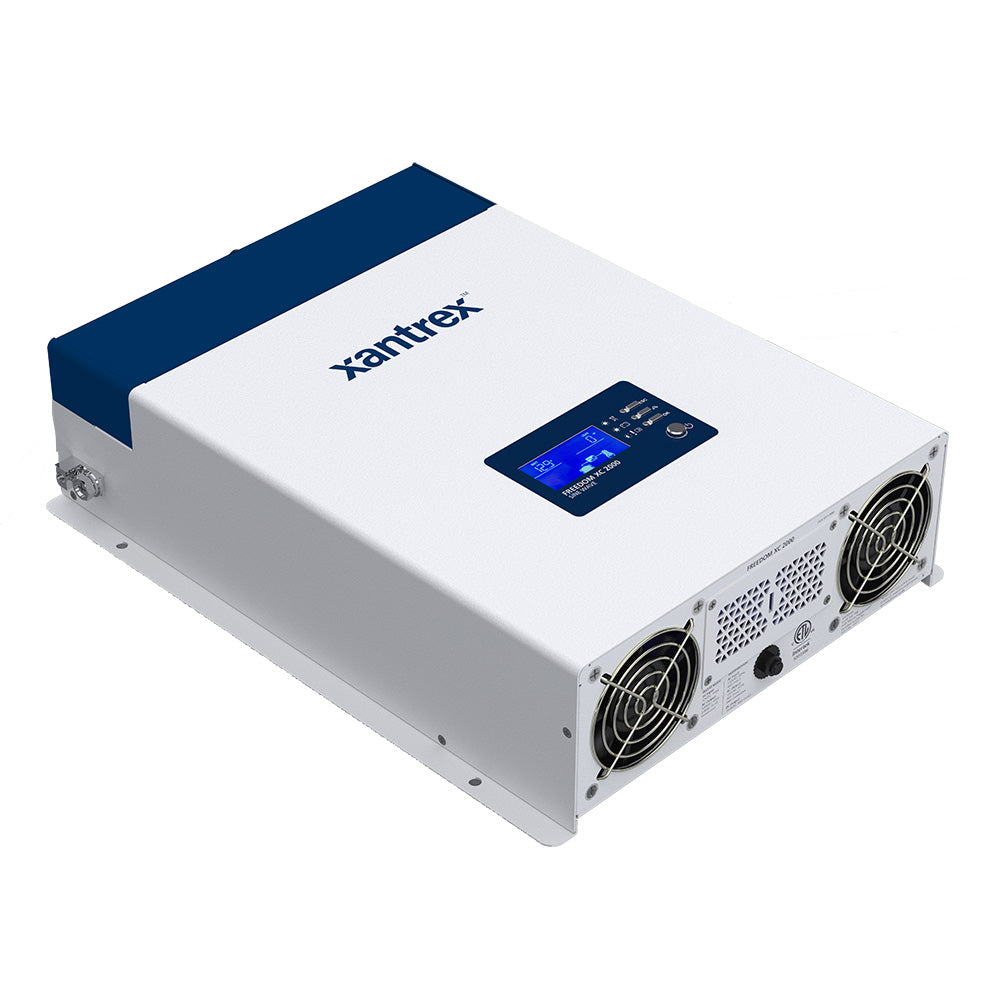

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A

Your marine adventures deserve reliable and efficient power solutions. The Freedom XC 2000 True Sine Wave Inverter/Charger is expertly designed for marine and boating applications, providing seamless power conversion and management to keep your vessel running smoothly.

Key Features

Inverter Features

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds, ideal for starting challenging marine loads such as refrigeration units and microwave ovens.
• True Sine Wave AC Power: Ensures smooth and compatible power for sensitive marine electronics and motorized marine equipment.
• Ignition Control: Allows inverter to turn on/off via a 12 VDC signal, minimizing battery drain by shutting off when boat ignition is turned off.
• Wide 10-18 VDC Input Range: Compatible with high voltage alternators common on many modern marine chassis and boats.
• Programmable AC Under-Voltage Shutdown (85-110VAC): Ideal for operating under weak shore power or generator input, ensuring reliable power management on the water.
• Built-in 30A AC Transfer Relay: Automatically senses incoming shore or generator power and transfers the load from the inverter, seamlessly switching between invert and charge modes.

Built-In Charger Features

• Power Factor Corrected Multi-Stage Charging: Efficiently utilizes shore power, freeing up more usable AC power for running marine devices and reducing the likelihood of overloading shore power connections.
• Programmable: Configurable 3-stage temperature compensated battery charging algorithm for optimal maintenance of various marine battery types up to 18V.
• Battery Equalization: Extends the life of flooded marine batteries by ensuring balanced charging.
• Dead Battery Charging: Capable of charging down to 0 Vdc, ensuring recovery of deeply discharged marine batteries.
• Power Share: Prioritizes critical AC loads by reducing charge current and maintaining total input current below breaker settings, ensuring essential marine systems remain operational.

Specifications

Feature	Specification
Waveform	True Sine Wave
Inverter Output Voltage	120 VAC
Inverter Input Voltage	12 VDC
Inverter Surge Rating	4000 W
Outlet Quantity	Optional
GFCI Protection	Optional
DC Connection Type	Hardwire
AC Connection Type	Hardwire
Inverter Continuous Output Wattage	2000 W
Dimensions	10"H x 16"W x 20"L
Weight	19.4 lbs
UPC	715535901349

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), which is known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

Owner's Manual (PDF)

Brochure (PDF)
