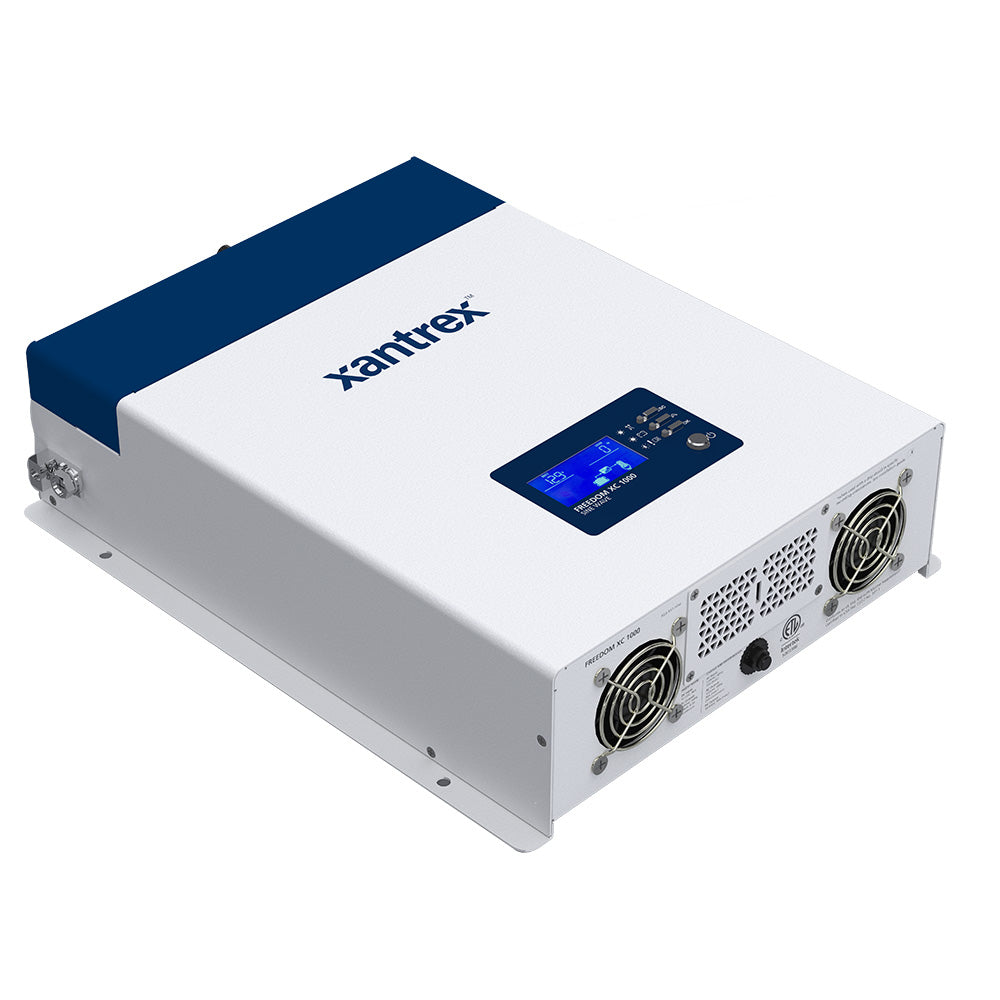

Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 1000W/50A

The Freedom XC 1000 True Sine Wave Inverter/Charger is an essential power solution for marine and boating applications. Offering reliable 12VDC to 120VAC conversion with a robust 1000W continuous output, this inverter/charger ensures your vessel remains powered efficiently and safely under all conditions.

Premium Performance for Marine Applications

Designed specifically for the demanding environment of marine and boating use, the Freedom XC 1000 delivers true sine wave AC power, ensuring seamless operation of sensitive electronics and motor-driven devices on your vessel. Its compact and lightweight design makes it easy to install in limited spaces, while the durable construction withstands the harsh conditions often encountered at sea.

Key Features

Inverter Capabilities

• Extended Surge Rating: Delivers up to 2000W for 2 seconds, perfect for starting heavy loads like marine refrigeration units and microwaves.
• True Sine Wave Output: Ensures smooth and stable power for sensitive electronics and motorized equipment on your boat.
• Ignition Control: Automatically turns the inverter on or off via a 12 VDC signal, minimizing battery drain when the ignition is off.
• Wide 10-18 VDC Input Range: Compatible with high voltage alternators commonly found in modern marine vehicles.
• Programmable AC Under-Voltage Shutdown: Operates efficiently under weak shore power or generator input, protecting your system.
• Built-in 30A AC Transfer Relay: Automatically switches between inverter and shore/generator power, ensuring a seamless power transition.

Built-In Charger Features

• Power Factor Corrected Multi-Stage Charging: Optimizes shore power usage, allowing more AC power for running devices and reducing the risk of tripping breakers.
• Programmable Charging: Customizable 3-stage temperature-compensated charging algorithm suitable for various battery types up to 18V.
• Battery Equalization: Extends the life of flooded batteries by balancing charge levels.
• Dead Battery Charging: Capable of charging batteries down to 0 VDC, ensuring your batteries are always ready.
• Power Share: Prioritizes AC loads by adjusting charge current, maintaining total input below breaker limits.

Specifications

Feature	Details
DC Connection Type	Hardwire
AC Connection Type	Hardwire
Inverter Input Voltage	12V
Inverter Surge Rating	2000W
Outlet Quantity	Optional
GFCI	Optional
Waveform	True Sine Wave
Inverter Output Voltage	120V
Inverter Continuous Output Wattage	1000W
Dimensions	9" H x 15" W x 20" L
Weight	16.5 lbs
UPC	715535901318

Safety Information

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), which is known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
