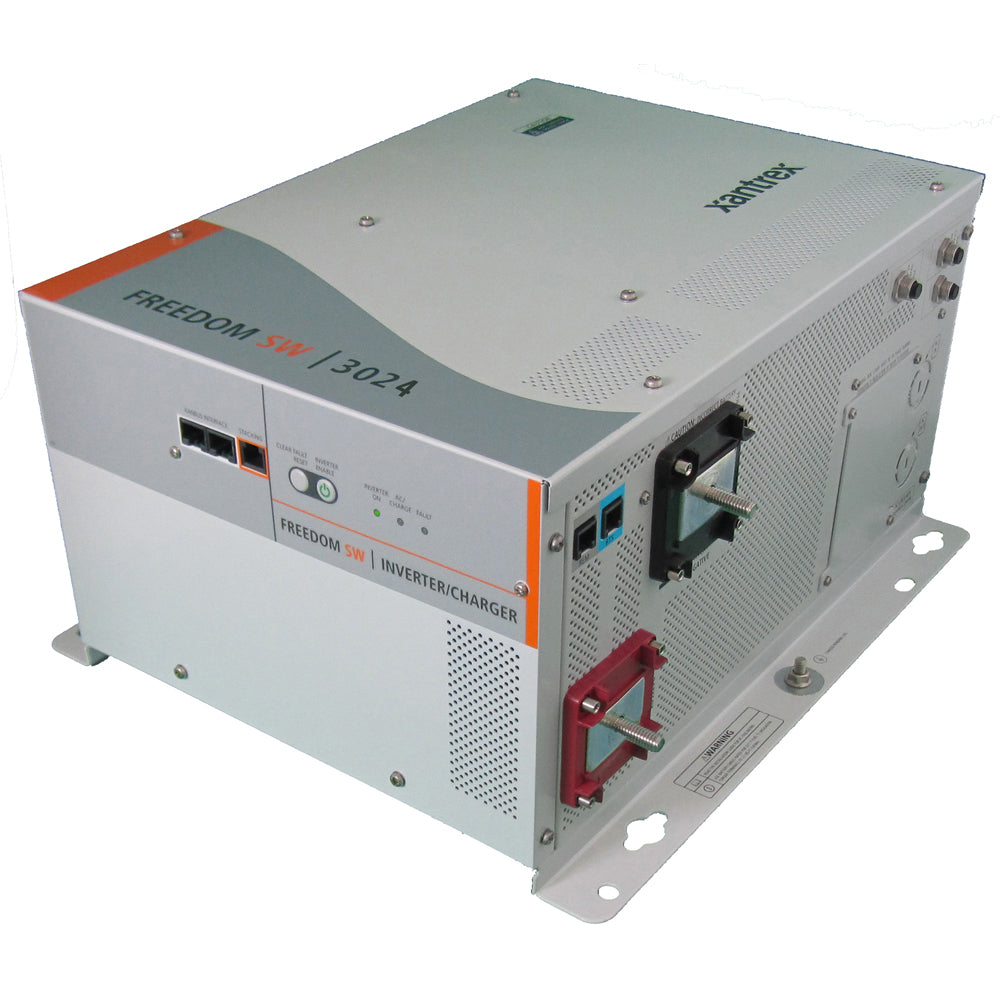

Xantrex Freedom SW3024 Inverter/Charger - 3000W - 24V

The Xantrex Freedom SW3024 Inverter/Charger is a robust and versatile power solution designed specifically for marine and boating applications. With a reliable 24V system and powerful 3000W output, it ensures your vessel remains powered and operational in all conditions.

Product Description

The second generation Freedom SW3024 Inverter/Charger has been meticulously redesigned to incorporate advanced features tailored for high-performance marine environments. Key enhancements include the innovative Generator Support Mode, which intelligently supplements a generator when AC loads exceed its capacity, ensuring uninterrupted power supply. Additionally, the improved AC transfer and input detection time allow seamless switching to battery power in under 10 milliseconds when grid or generator power is lost. This swift transition ensures that connected loads experience minimal to no interruption.

Both the 3000W model with a 150A charger and the 2000W model with a 100A charger are UL458 approved with marine supplements, CSA, ABYC, and FCC Class B certifications, guaranteeing compliance with stringent safety and performance standards.

Advanced Stacking Capabilities

The Freedom SW3024 offers unparalleled flexibility with its parallel and series stacking capabilities:

• Parallel Stacking: Combine multiple inverter/chargers to double the AC output in inverter mode, providing enhanced power for larger marine systems.
• Series Stacking: Generate 120/240 V split-phase output, ideal for vessels requiring versatile power configurations.²

Note: AC sources must be split-phase, and a Stacking Cable (Part# 808-9005) is required.

Ideal Applications

Perfectly suited for a wide range of marine and boating applications, the Freedom SW3024 Inverter/Charger is ideal for:

• Commercial vessels
• Emergency response boats
• Recreational boats and yachts
• Marine construction equipment
• Military maritime applications

Key Features

• Pure sine wave output ensures compatibility with sensitive marine electronics
• Advanced configuration options for customized marine power setups
• Parallel and series stacking for scalable power solutions
• Built-in transfer switch for automatic switching between inverter and incoming AC power
• Power factor corrected, multi-stage charger for rapid and efficient battery charging
• Temperature compensated charging adaptable to various marine climate conditions
• Ignition lockout feature prevents unnecessary battery drain when the alternator is inactive³
• Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)
• Conformal-coated circuit boards for reliable performance in humid marine environments
• Dual input/Dual output AC interface available on the 3000W model
• Capable of charging batteries drained to extremely low voltages
• Compatible with the Xantrex Automatic Generator Start⁴ (Part# 809-0915)

³ Applicable when used with the remote panel.
⁴ Sold separately.

Protection Features

• Battery over-voltage and under-voltage protection to safeguard your marine battery
• Over-temperature shutdown to prevent overheating in confined marine spaces
• Automatic overload protection ensures system stability
• Short-circuit protection for enhanced safety
• Integrated, resettable AC breakers for easy maintenance

Specifications

Specification	Details
Charger Output - Amps	75A
Charger Output Voltage	24V
Inverter Output Voltage	120V
Inverter Input Voltage	24V
Charger Input Voltage	120V
Outlet Quantity	Optional
Inverter Continuous Output Wattage	3000W
Charging Banks	1
Box Dimensions	13"H x 18"W x 21"L
Weight	69.3 lbs
UPC	687873007673

Downloads

• Quick Guide (PDF)
• Owner's Manual (PDF)

Product Videos
