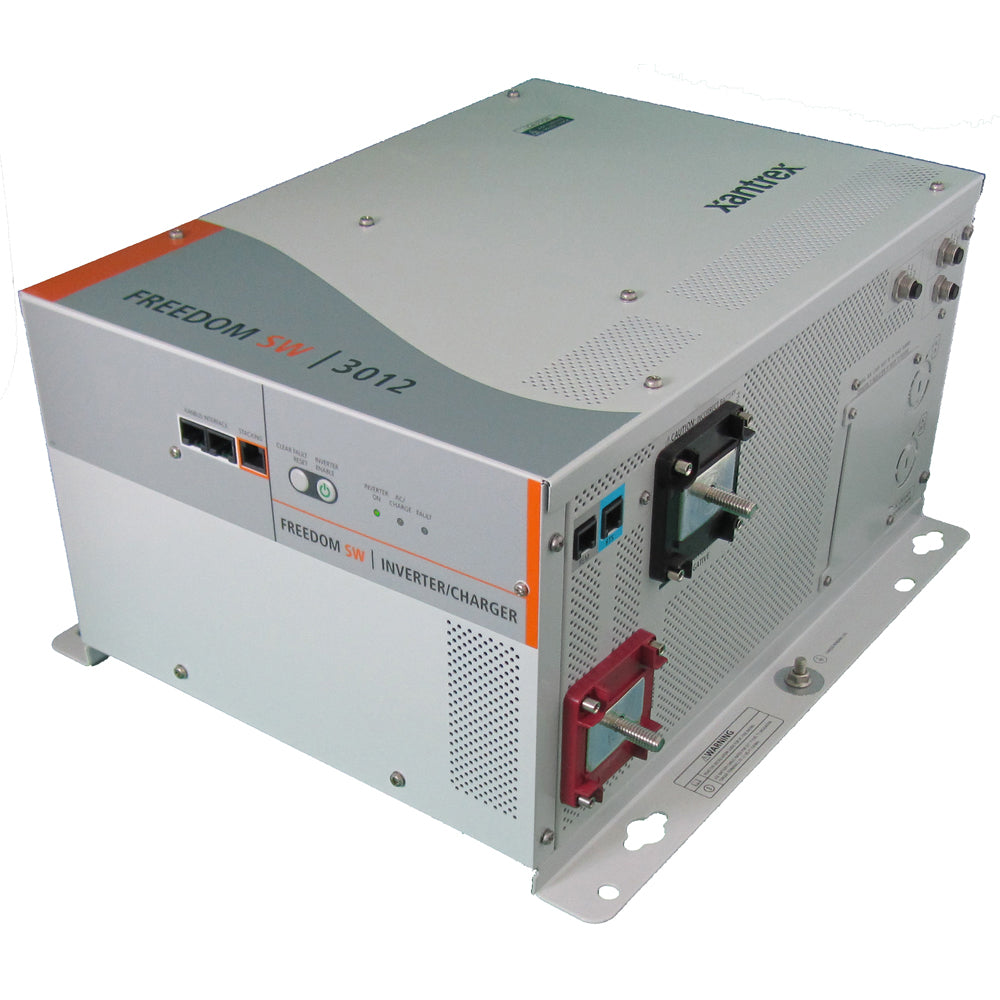

Xantrex Freedom SW3012 12V 3000W Inverter/Charger

The Xantrex Freedom SW3012 Inverter/Charger is a robust and versatile power solution tailored for marine and boating applications. Designed to deliver reliable 12V power with an impressive 3000W inverter capacity, it ensures your vessel's electronics run smoothly, whether you’re cruising the open seas or docked at the marina.

Product Description

The Freedom SW3012 Inverter/Charger from Xantrex represents the cutting edge in marine power management. This second-generation 3000W model has been meticulously redesigned to incorporate advanced features that enhance performance and reliability aboard your vessel. One standout feature is the 'Generator Support Mode,' which intelligently supplements your onboard generator when AC demands surpass its capacity, ensuring a seamless power supply. Additionally, the improved AC transfer and input detection mechanisms allow for a swift transition to battery power in under 10 milliseconds if grid or generator power is interrupted, minimizing any disruption to your electrical systems. Certified to UL458 with marine supplements, CSA, ABYC, and FCC Class B standards, the Freedom SW3012 guarantees safety and compliance in marine environments.

Key Features

• Pure sine wave output for safe operation of sensitive marine electronics
• Advanced configuration options for customized marine power setups
• Parallel and series stacking capability to enhance power output and flexibility
• Built-in transfer switch for automatic switching between inverter and incoming AC power
• Power factor corrected, multi-stage charger for fast and efficient battery charging
• Temperature compensated charging, ideal for varying marine climate conditions
• Ignition lockout feature to prevent unnecessary battery drain when the alternator is inactive³
• Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)
• Conformal coated circuit boards for enhanced performance in humid marine environments
• Dual input/Dual output AC interface for the 3000W model
• Capability to charge batteries even when drained to extremely low voltages
• Compatibility with the Xantrex Automatic Generator Start⁴ (Part# 809-0915)

Protection Features

• Battery over-voltage and under-voltage protection to safeguard your batteries
• Over-temperature shutdown to prevent overheating
• Automatic overload protection to handle power surges
• Short-circuit protection for enhanced safety
• Integrated, resettable AC breakers for reliable circuit protection

Parallel and Series Stacking

The Freedom SW3012 offers flexible power management through parallel and series stacking:

• Parallel Stacking: Combine multiple inverter/chargers to double the AC output in inverter mode, providing greater power capacity for larger marine setups.
• Series Stacking: Generate a 120/240V split phase output², ideal for more complex electrical systems on larger vessels.

² Requires a split-phase AC source and the use of a Stacking Cable (Part# 808-9005).

Technical Specifications

Specification	Details
Charger Output Voltage	12V
Inverter Output Voltage	120V
Inverter Input Voltage	12V
Charger Input Voltage	120V
Outlet Quantity	Optional
Charging Banks	1
Inverter Continuous Output Wattage	3000W
Charger Output Amperage	150A
Box Dimensions	12"H x 18"W x 21"L
Weight	69.4 lbs
UPC	008153012413

Applications

The Freedom SW3012 is engineered for a wide array of marine applications, making it an essential component for:

• Commercial vessels
• Emergency boats
• Recreational yachts and boats
• Marine construction equipment
• Military marine equipment

Compliance and Safety

This product is certified to meet industry standards, ensuring safety and reliability in marine environments. It is approved to UL458 with marine supplement, CSA, ABYC, and FCC Class B requirements.

Additional Resources

For more detailed information, refer to the following documents:

• Quick Guide (PDF)
• Owner's Manual (PDF)

Video Guides

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), which is known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Important Notes

• ³Ignition lockout feature is effective when used with the remote panel.
• ⁴Xantrex Automatic Generator Start is sold separately (Part# 809-0915).
