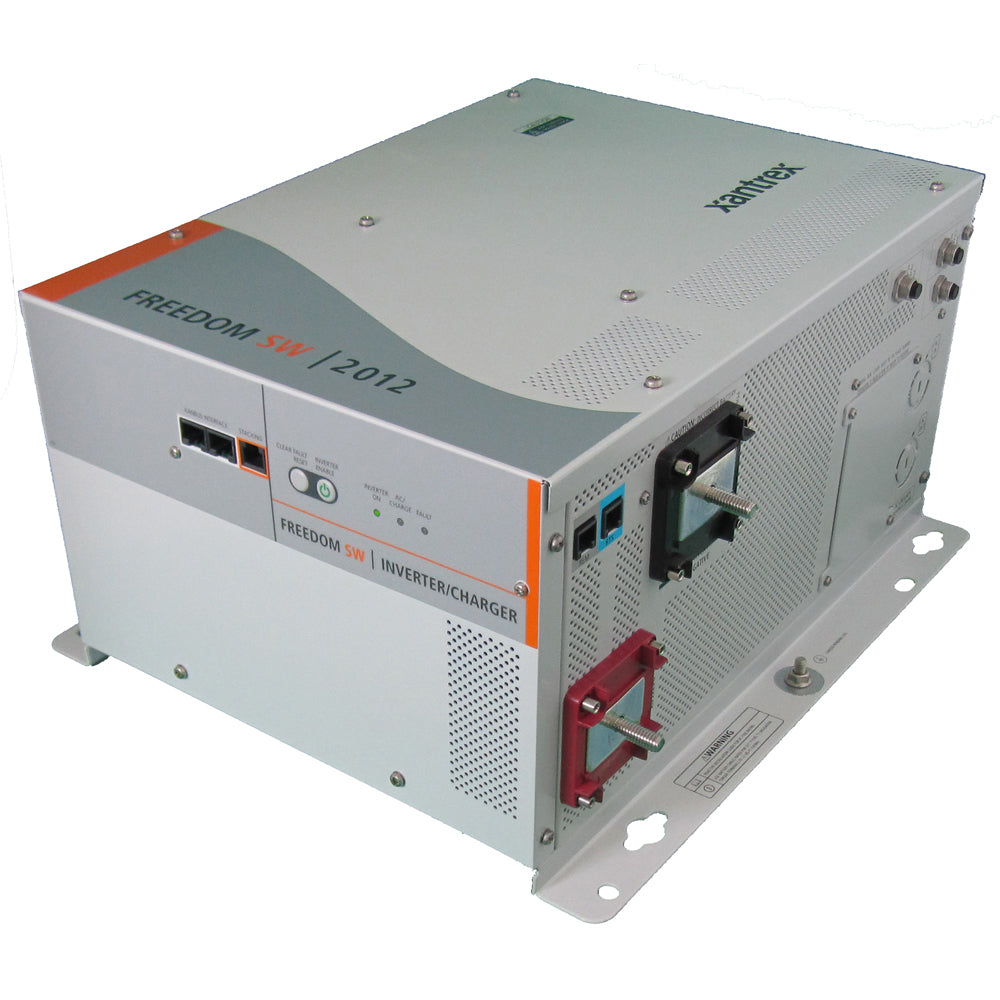

Xantrex Freedom SW2012 12V 2000W Inverter/Charger

The Xantrex Freedom SW2012 Inverter/Charger is a robust and versatile power solution designed specifically for marine and boating applications. With its 12V input and 2000W continuous output at 120V AC, it delivers reliable power to keep your vessel’s systems running smoothly, whether you're cruising the open seas or anchored at your favorite spot.

Advanced Features for Superior Performance

The Freedom SW series stands out in the market with its highly sophisticated inverter/chargers. The SW2012 model offers exceptional versatility with a 2000W inverter and a 100A charger, making it ideal for a wide range of marine applications. The second-generation design incorporates enhancements found in the higher power models, ensuring top-notch performance and reliability.

Generator Support Mode

One of the key upgrades in the new generation SW2012 is the 'Generator Support Mode'. This feature allows the inverter/charger to seamlessly supplement a generator when your AC loads exceed the generator’s capacity, ensuring uninterrupted power supply during critical operations.

Rapid AC Transfer

Improved AC transfer and input detection times enable the Freedom SW2012 to switch from incoming AC power to battery power in less than 10 milliseconds. This ultra-fast transfer ensures that connected loads experience virtually no interruption during power transitions.

Stacking Capabilities for Enhanced Power Output

The Freedom SW2012 supports both parallel and series stacking, providing flexibility to meet various power requirements:

• Parallel Stacking: Combine two SW2012 units to double the AC output in inverter mode, perfect for larger marine setups.
• Series Stacking: Generate 120/240 V split-phase output by linking multiple units, ideal for vessels that require dual-phase power.

² Requires a split-phase AC source and the Stacking Cable (Part# 808-9005).

Designed for Marine Applications

The Freedom SW2012 is engineered to meet the demanding needs of marine environments. Whether you’re outfitting a commercial vessel, emergency response boat, recreational craft, or military equipment, this inverter/charger provides the reliable power you need.

Comprehensive Product Features

• Pure Sine Wave Output: Ensures smooth and stable power for sensitive marine electronics.
• Advanced Configuration Options: Customize settings to match your specific marine power requirements.
• Parallel and Series Stacking Capability: Expand your power system as needed.
• Built-in Transfer Switch: Automatically switches between inverter power and incoming AC power for seamless operation.
• Power Factor Corrected Multi-Stage Charger: Provides fast and efficient battery charging.
• Temperature Compensated Charging: Adapts to a variety of marine climate conditions for optimal battery health.
• Ignition Lockout Feature: Prevents unnecessary battery drain when the alternator isn’t supplying power.³
• Wide Operating Temperature Range: Functions reliably from -4°F to 140°F (-20°C to 60°C).
• Conformal Coated Circuit Boards: Protects against moisture and corrosion in humid marine environments.
• Dual Input/Dual Output AC Interface: Available on the 3000W model for enhanced connectivity.
• Deep Battery Charging Capability: Recovers batteries drained to extremely low voltages.
• Compatibility with Xantrex Automatic Generator Start: (Part# 809-0915 sold separately) for automated generator operation.

³ When used with the remote panel.

Robust Protection Features

• Battery over-voltage and under-voltage protection to safeguard your batteries.
• Over-temperature shutdown to prevent overheating.
• Automatic overload protection ensuring safe operation under demanding loads.
• Short-circuit protection for enhanced safety.
• Integrated, resettable AC breakers for easy troubleshooting and maintenance.

Product Specifications

Specification	Details
Charger Output - Amps	75A
Charger Output Voltage	12V
Charging Banks	1
Outlet Quantity	Optional
Inverter Output Voltage	120V
Inverter Input Voltage	12V
Charger Input Voltage	120V
Inverter Continuous Output Wattage	2000W
Box Dimensions	13"H x 18"W x 21"L
Weight	61.7 lbs
UPC	715535897154

Compliance and Safety

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
