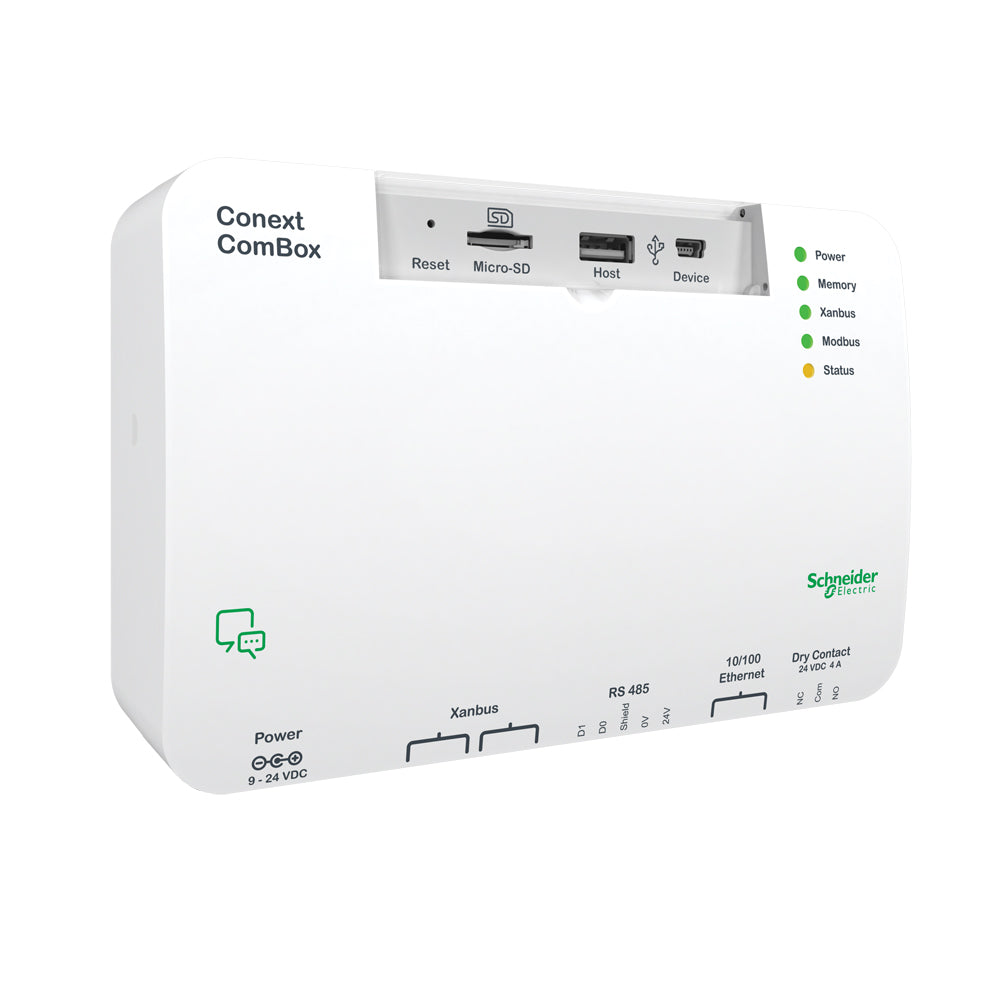

Xantrex Conext Combox Communication Box f/Freedom SW Series Inverters/Chargers

The Conext ComBox Freedom SW Series Communication Box is an essential component for marine and boating applications, offering comprehensive system performance monitoring and control for your vessel's power management systems.

Overview

The Conext ComBox Freedom SW provides a complete overview of your marine power system's performance, making it ideal for RVs, marine vessels, construction, and other heavy-duty applications. With the ComBox Freedom SW, you can configure your system and devices, monitor performance in real-time, and access detailed data logs through a web-based application on your laptop or an Android tablet app. The intuitive, icon-based display screen (tablet not included) visually represents energy flow between utility power, generator power, Freedom SW Inverter/Charger, your boat's battery system, and AC loads.

Key Features

User Level Access

Feature	Description
Control Inverter	Enable or disable the inverter as needed.
Control Generator	Turn the generator off, on, or set it to auto mode.
Real-Time Clock	Maintains system time across all components.
Shore Breaker Size	Selectable range from 5A to 50A to match your shore power requirements.
User Interface	Provides a comprehensive and user-friendly interface, replacing the SCP system control panel.
Data Logging	Tracks battery charge (Watt-hours), load consumption (Wh), utility grid input (Wh), and generator input (Wh).

Admin Level Access

• Setup: Advanced access for installers and technician support to configure and optimize system settings.

Hardware Features

• Network Powered: Operates via Xanbus network (Freedom SW Inverter/Charger) or a supplied AC/DC adapter.
• Data Storage: Supports USB thumb drives and micro SD cards for additional data storage.
• Compact Design: Lightweight and easy to install, perfect for marine environments.
• Non-Volatile Memory: Preserves settings even during power interruptions or network disruptions.
• Firmware Upgrades: Allows for firmware updates of Xanbus-enabled devices on the network.

Compatibility

The ComBox Freedom SW is fully compatible with Freedom SW Inverter/Charger, SCP (System Control Panel), and AGS (Automatic Generator Start), ensuring seamless integration with your marine power management system.

Safety Information

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), which is known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

Resources

Owner's Manual (PDF)

Watch the ComBox Freedom SW in Action
