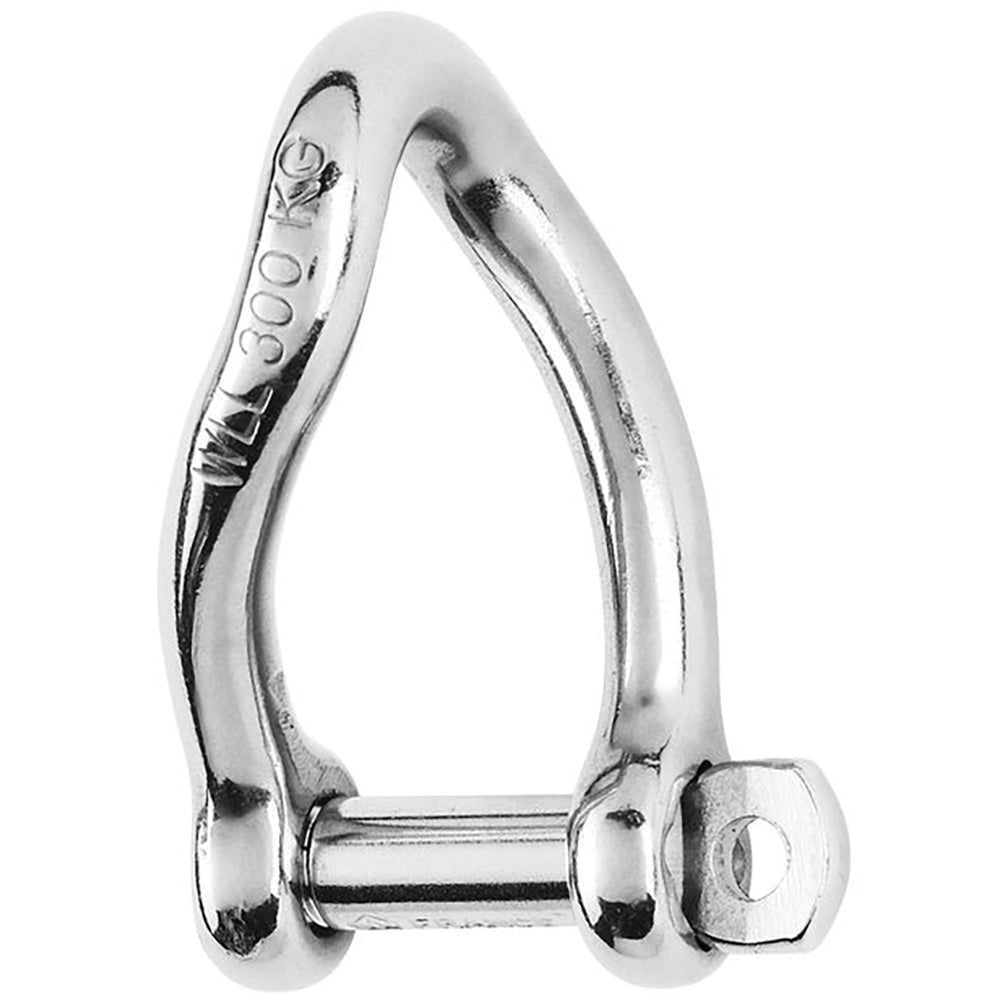

Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32"
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Self-Locking Twisted Shackle is an essential component for marine and boating applications, providing reliable and secure connections even in the most demanding environments. Crafted from high-grade 316L stainless steel, this shackle ensures durability and resistance to corrosion, making it ideal for nautical use.
Features
- Self-locking twisted shackle forged from premium grade 316L stainless steel for enhanced durability
- Automatic pin locking mechanism engages into one of the multiple indentations for secure fastening
- Designed to prevent loosening caused by vibrations, ensuring consistent performance
- Exceptional working and breaking load capacities suitable for heavy-duty marine applications
Applications
- Ideal for setups requiring a precise 90° angle twist, ensuring optimal tension and stability
- Perfect for attaching non-articulated parts such as blocks on rails or mounting purchases
- Suitable for various marine rigging tasks, including sailboat fittings and anchor systems
Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Working Load | 3,170 lbs / 1,440 kg |
| Breaking Load | 9,920 lbs / 4,500 kg |
| Weight | 0.28 lbs / 127 g |

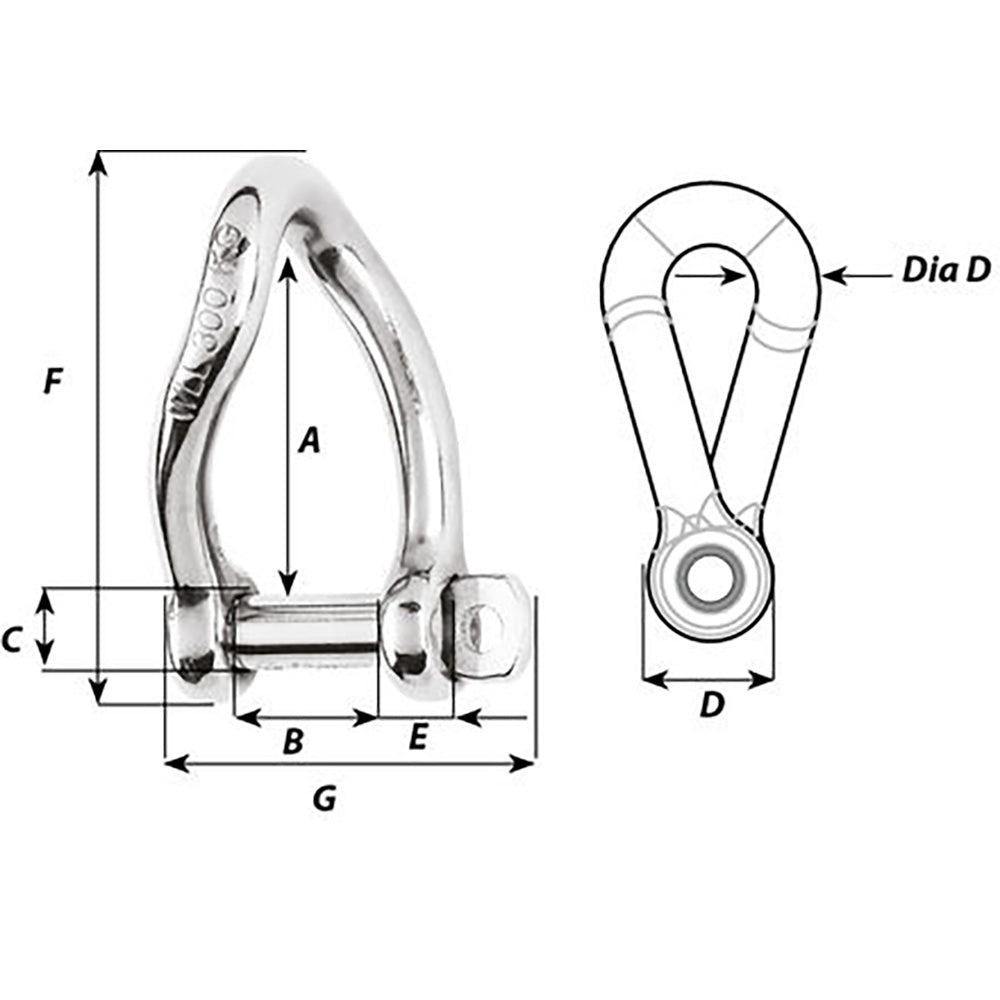

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 31/32" | 50 mm |
| B | 25/32" | 20 mm |
| C | 25/64" | 10 mm |
| D | 3/4" | 19 mm |
| D Diameter | 25/64" | 10 mm |
| E | 23/64" | 9 mm |
| F | 2 29/32" | 74 mm |
Usage and Load Ratings
- Working Load (WL): Suitable for nautical applications, providing the necessary strength for marine rigging.
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is 5 times the breaking load. Calculation: WLL = Breaking load / 5.
*Sold as an individual unit
Download Quick Guide (PDF)
