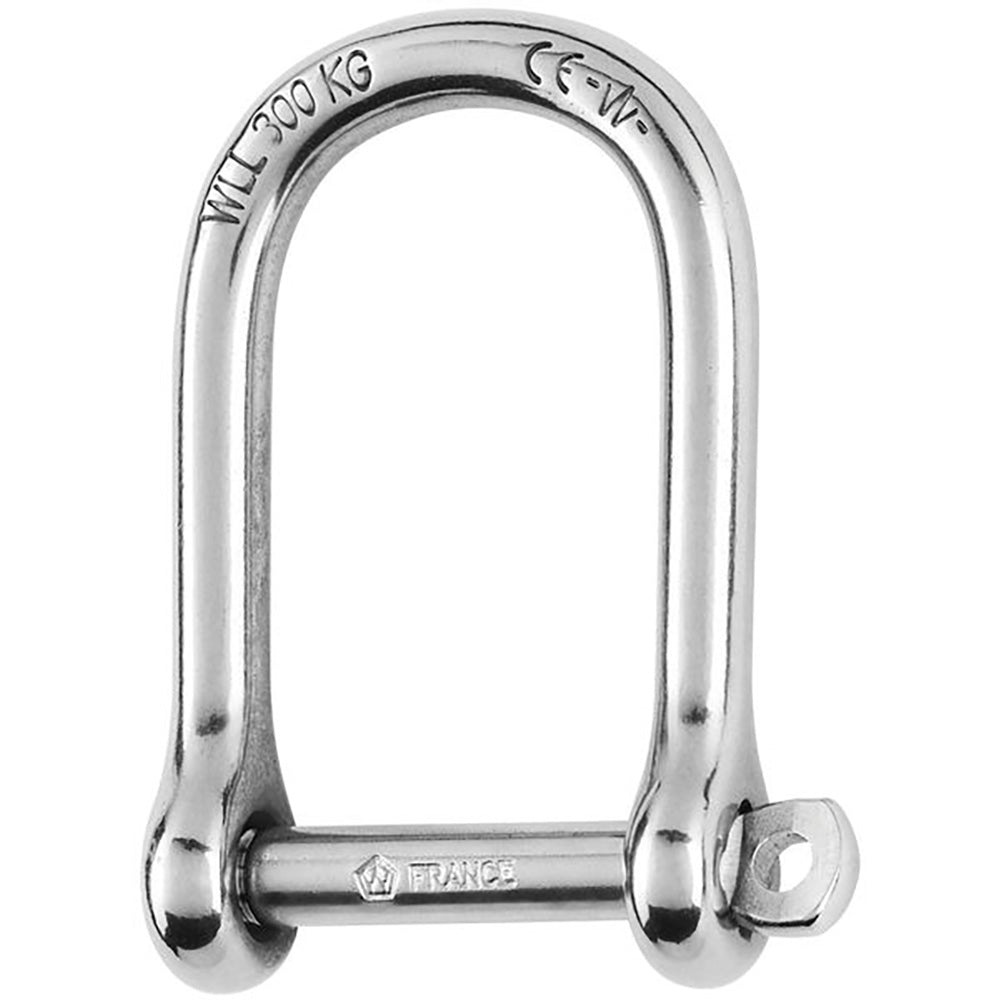

Wichard Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"
Wichard Self-Locking Large Opening Shackle - 8mm Diameter - 5/16" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Self-Locking Large Opening Shackle is meticulously engineered for marine and boating applications, providing unmatched strength and security. Crafted from high-grade stainless steel, this shackle ensures durability and reliable performance in the harshest marine environments. Its self-locking mechanism guarantees that the pin remains securely in place, eliminating the risk of accidental loosening during intense vibrations and movements typical on the water.
Features
- Premium Construction: Forged from grade 316L stainless steel for exceptional corrosion resistance and longevity.
- Self-Locking Mechanism: The pin locks securely into one of the indentations, ensuring it stays in place under dynamic conditions.
- Vibration Resistant: Designed to prevent loosening and maintain integrity despite constant vibrations.
- High Load Capacity: Outstanding working and breaking loads make it ideal for demanding applications.
- Industrial-Grade: Rated for industrial applications, including heavy lifting and rigging tasks.
- Certified Quality: Comes with CE marking, attesting to its compliance with European safety standards.
Applications
- Essential for marine rigging and securing heavy equipment on boats and ships.
- Suitable for lifting and hoisting applications in industrial maritime settings.
- Ideal for anchoring systems where a large opening shackle is required.
Specifications
| Material | 316 Stainless Steel Grade |
|---|---|
| Working Load | 1,780 lb (810 kg) |
| Working Load Limit (WLL) | 1,190 lb (540 kg) |
| Breaking Load | 5,950 lb (2,700 kg) |
| Weight | 0.148 lb (67 g) |

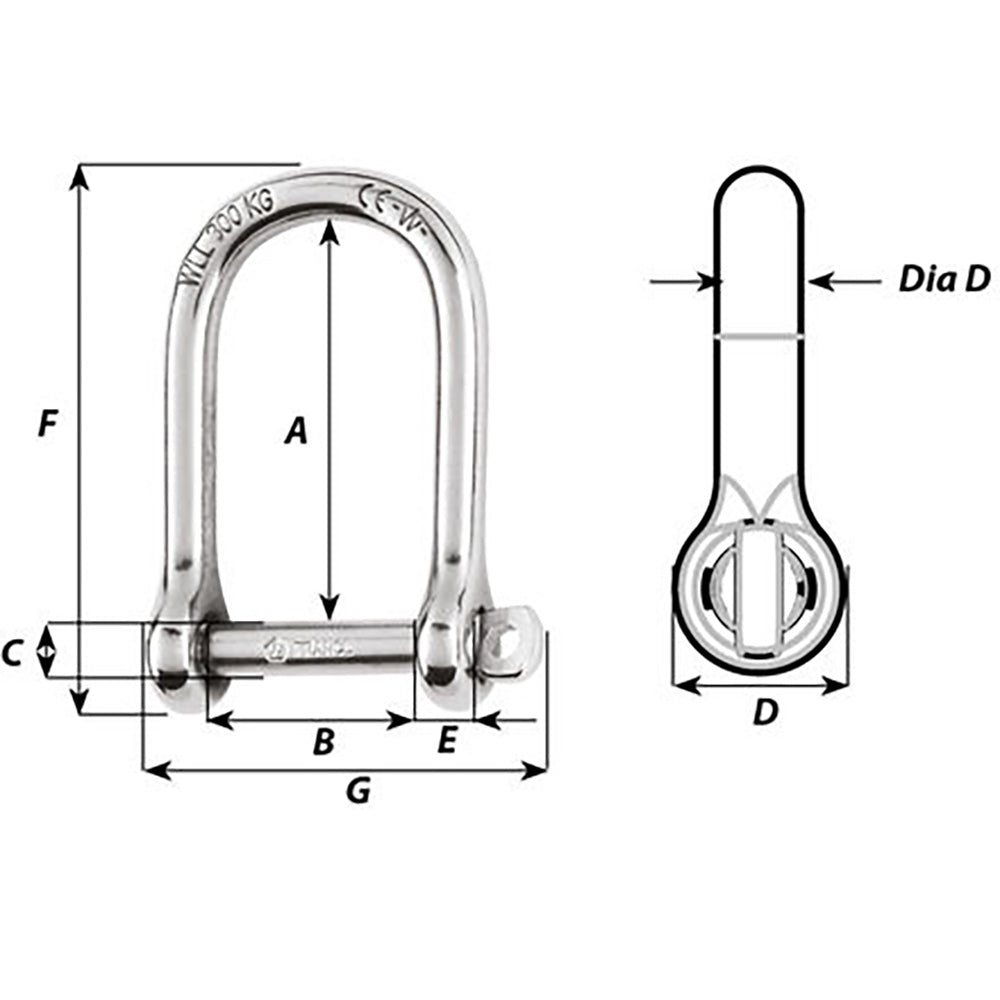

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 2 1/4" | 57 mm |
| B | 1 17/64" | 32 mm |
| C | 5/16" | 8 mm |
| D | 43/64" | 17 mm |
| D Diameter | 5/16" | 8 mm |
| E | 5/16" | 8 mm |
| F | 3 1/32" | 77 mm |
| G | 2 1/4" | 57 mm |
Safety Information
- Working Load (WL): Suitable for nautical applications, ensuring safe operation under specified loads.
- Working Load Limit (WLL): Intended for industrial applications only. The WLL is calculated by dividing the breaking load by five, providing a reliable safety factor.
*Sold as an individual unit.
