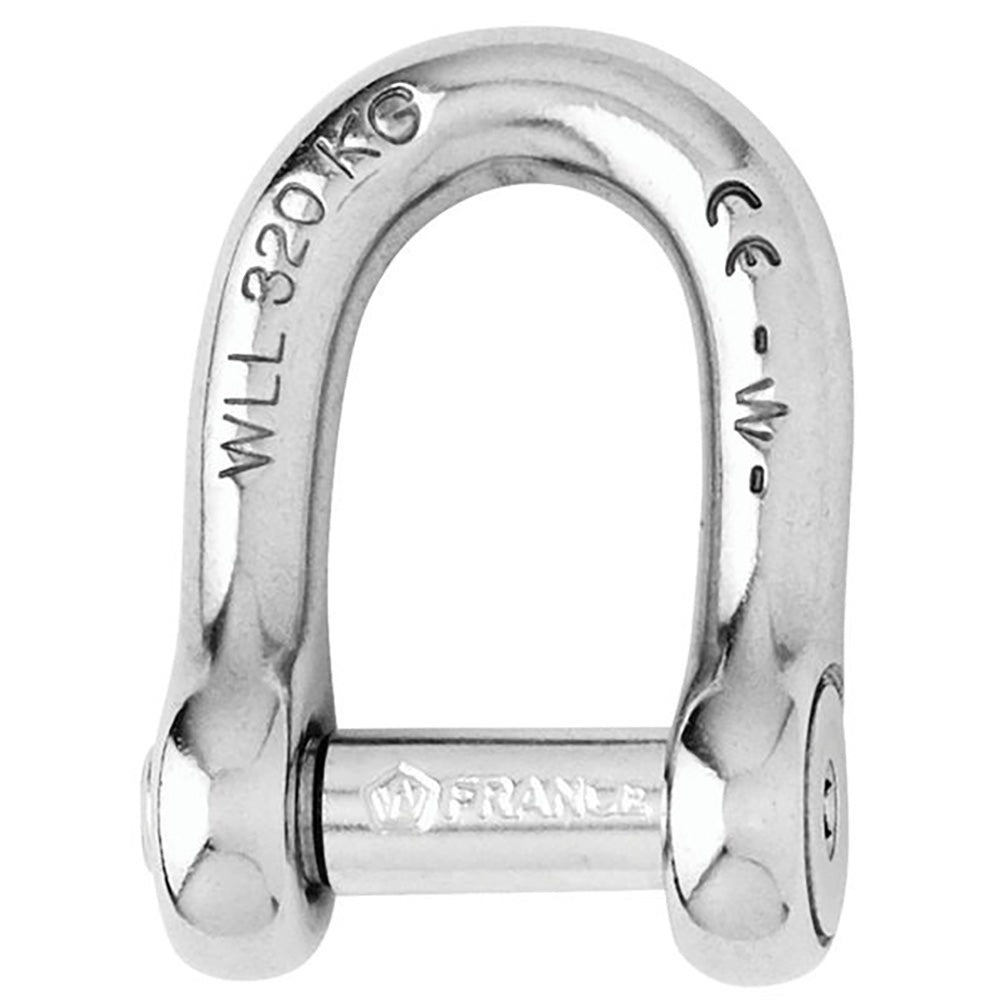

Wichard Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"
Wichard Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Self-Locking Allen Head Pin D Shackle is a reliable and robust connector designed specifically for marine and boating applications. Crafted from high-grade 316L stainless steel, this shackle ensures durability and resistance against harsh marine environments, providing secure and efficient connections for your nautical needs.
Features
- Self-locking mechanism with an allen head pin D shackle forged in premium grade 316L stainless steel
- Secure locking pin that engages with one of the multiple indentations for enhanced safety
- Flush pin design prevents snagging by ensuring the pin does not protrude from the shackle body
- Resistance to loosening, even under vibrations, ensuring consistent performance
- Exceptional working and breaking loads suitable for demanding marine applications
- Working Load Limit (WLL) designed exclusively for industrial lifting and similar applications
- Certified with CE marking, meeting stringent safety and quality standards
Applications
- Ideal for linking chains and anchors, providing secure mooring connections
- Perfect for use on halyards, ensuring sail integrity without causing damage
- Optimized for environments with reduced clutter, maintaining efficiency and organization
Specifications
| Material | 316 Stainless Steel Grade |
|---|---|
| Working Load | 1320 lb (600 kg) |
| Working Load Limit (WLL) | 700 lb (320 kg) |
| Breaking Load | 3520 lb (1600 kg) |
| Weight | 0.049 lb (22 g) |

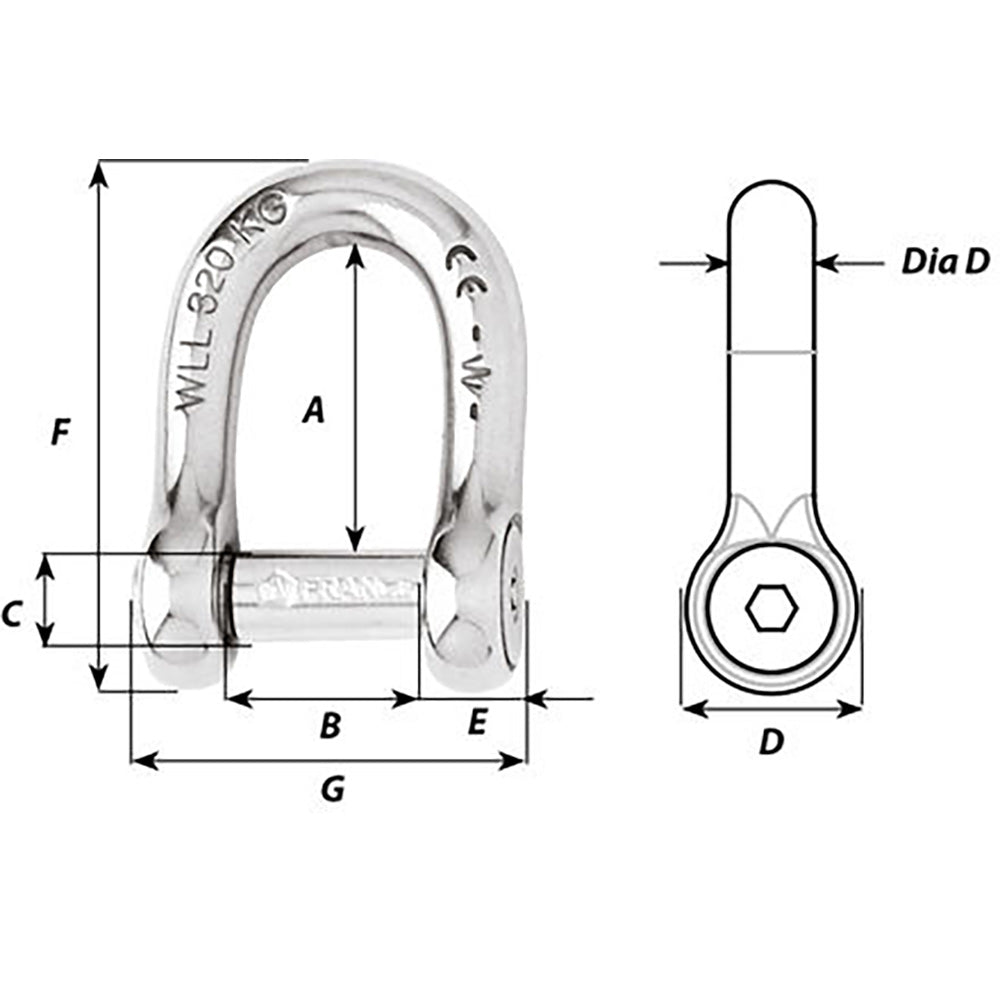

Dimensions
| Size A | 3/4" (19 mm) |
|---|---|
| Size B | 15/32" (12 mm) |
| Size C | 15/64" (6 mm) |
| Size D | 15/32" (12 mm) |
| D Diameter | 15/64" (6 mm) |
Additional Information
- Working Load (WL): Suitable for nautical applications, ensuring safe and reliable performance on the water.
-
Working Load Limit (WLL): Intended for industrial applications only. The safety factor is five times the breaking load.
WLL = Breaking Load / 5
*Sold as an individual unit
