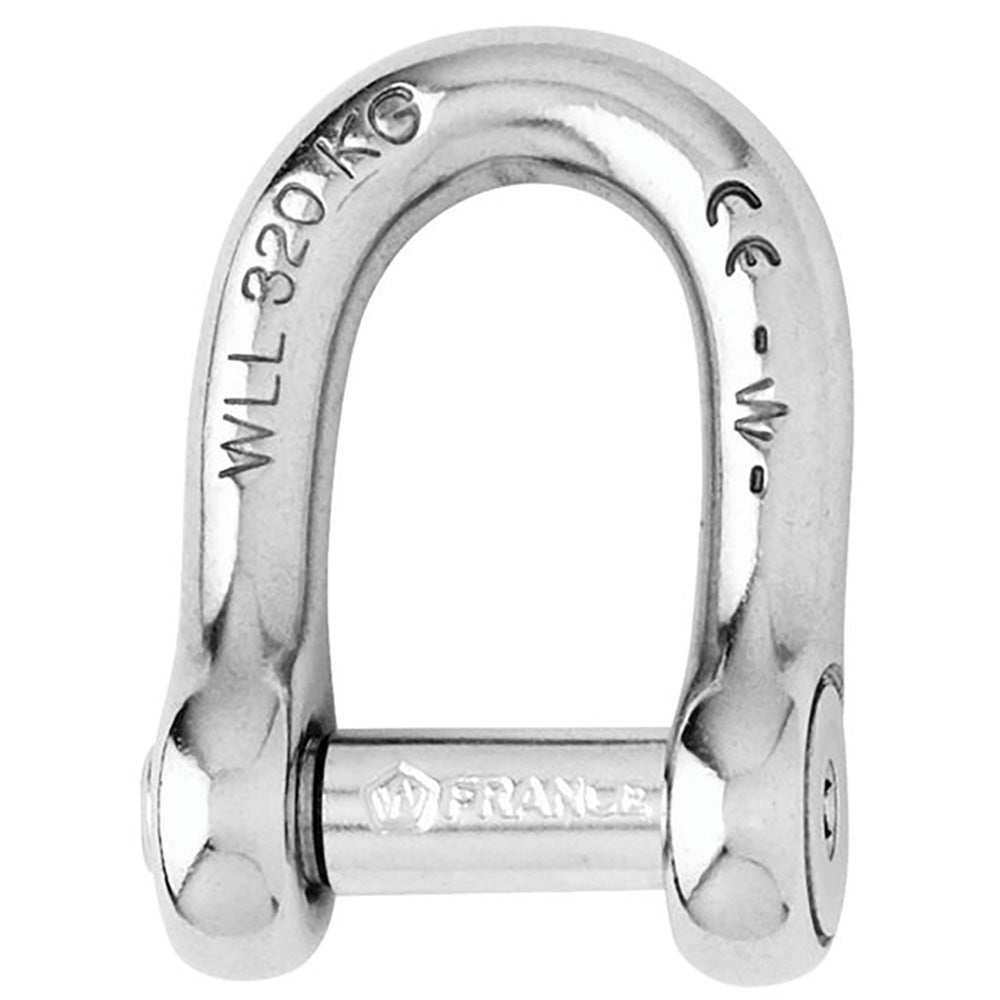

Wichard Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32"

The Self-Locking Allen Head Pin D Shackle is a high-quality, reliable fastening solution designed specifically for marine and boating applications. Crafted from grade 316L stainless steel, this 12mm diameter shackle ensures durability and performance in harsh maritime environments.

Features

• Self-locking mechanism with allen head pin D forged from grade 316L stainless steel
• Secure locking pin engages with one of the indentations for enhanced safety
• Flush pin head design prevents snagging and minimizes risk of injury
• Vibration-resistant construction eliminates the risk of loosening
• Exceptional working and breaking loads suitable for demanding applications
• Working Load Limit (WLL) designated for industrial lifting applications
• Certified with CE marking for compliance and quality assurance

Applications

• Ideal for linking chains and anchors on boats and ships
• Perfect for halyards to prevent sail damage
• Effective in clutter-reduced environments to maintain organization and safety

Specifications

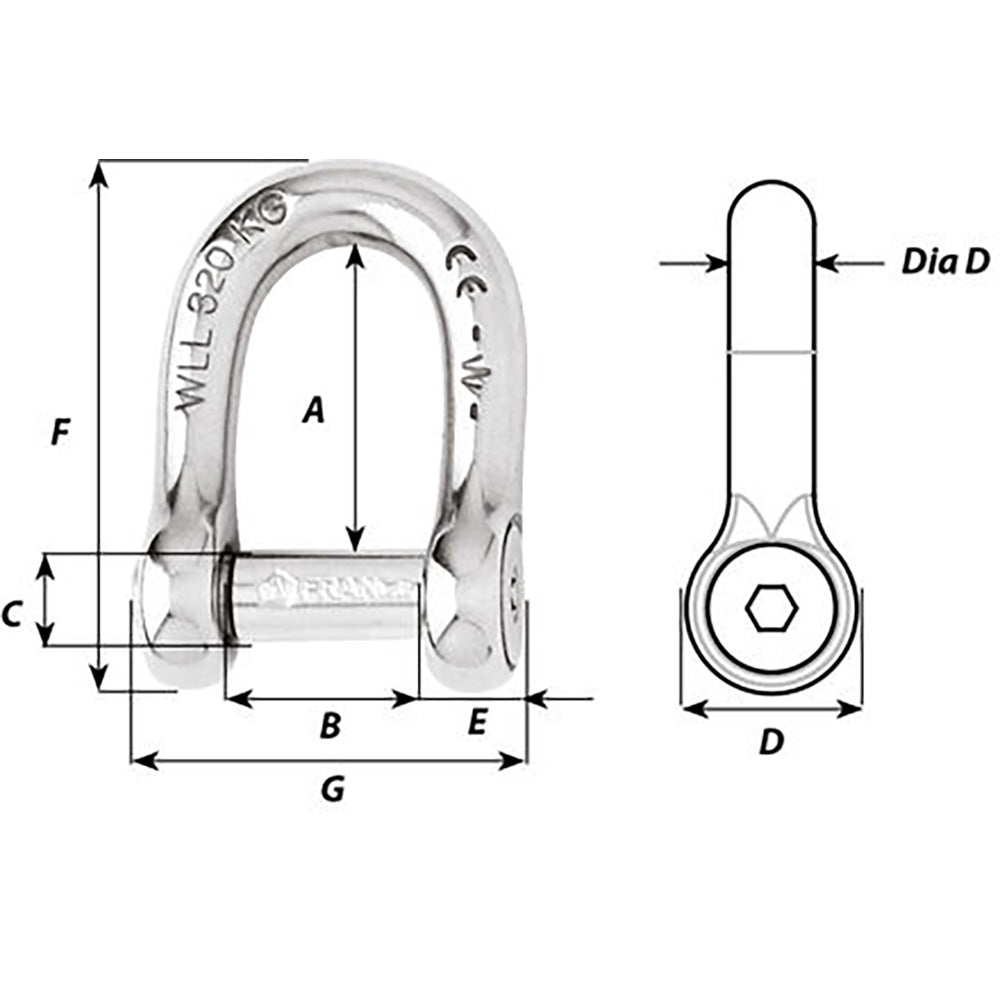

Dimensions

Additional Information

• Working Load (WL): Suitable for nautical applications, providing reliable performance under load.
• Working Load Limit (WLL): Intended for industrial applications only. The safety factor is five times the breaking load.
  WLL = Breaking load / 5

Sold individually.

Download the Quick Guide (PDF)
