Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16"
Wichard Self-Locking Allen Head Pin Bow Shackle - 8mm Diameter - 5/16" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

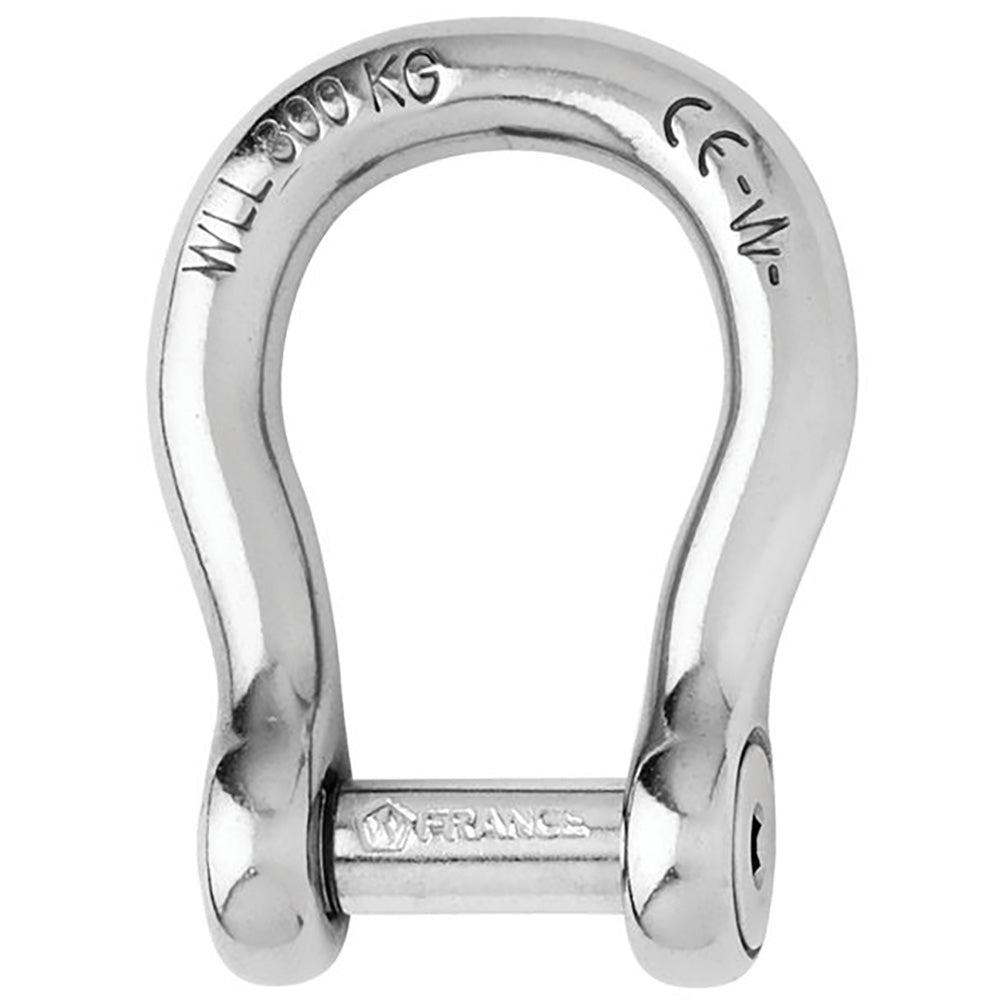

The Self-Locking Allen Head Pin Bow Shackle is a premium-grade hardware essential for marine and industrial applications. Crafted from durable 316L stainless steel, this 8mm diameter shackle ensures reliable performance and longevity in harsh marine environments. Its innovative self-locking mechanism provides enhanced safety and efficiency, making it an ideal choice for boating enthusiasts and professionals alike.
Features
- Constructed from high-quality 316L stainless steel for superior corrosion resistance.
- Self-locking twisted shackle design with an allen head pin for secure fastening.
- Pin locks seamlessly into one of the indentations, ensuring a tight fit.
- Flush head design eliminates protrusions, reducing the risk of snagging on sails or other equipment.
- Engineered to withstand vibrations without loosening, ensuring consistent performance.
- High working and breaking loads suitable for demanding marine and industrial tasks.
- CE marked for compliance with safety and quality standards.
Applications
- Ideal for linking chains and anchor systems on boats and ships.
- Securely attaches to halyards, preventing damage to sails and rigging.
- Effective in clutter-reduced environments where space optimization is crucial.
- Perfect for situations requiring ample room for equipment placement and operation.
Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Diameter | 8mm (5/16") |
| Working Load (WL) | 2,110 lbs / 960 kg |
| Working Load Limit (WLL) | 1,190 lbs / 540 kg |
| Breaking Load | 5,950 lbs / 2,700 kg |
| Weight | 0.148 lbs / 67 g |

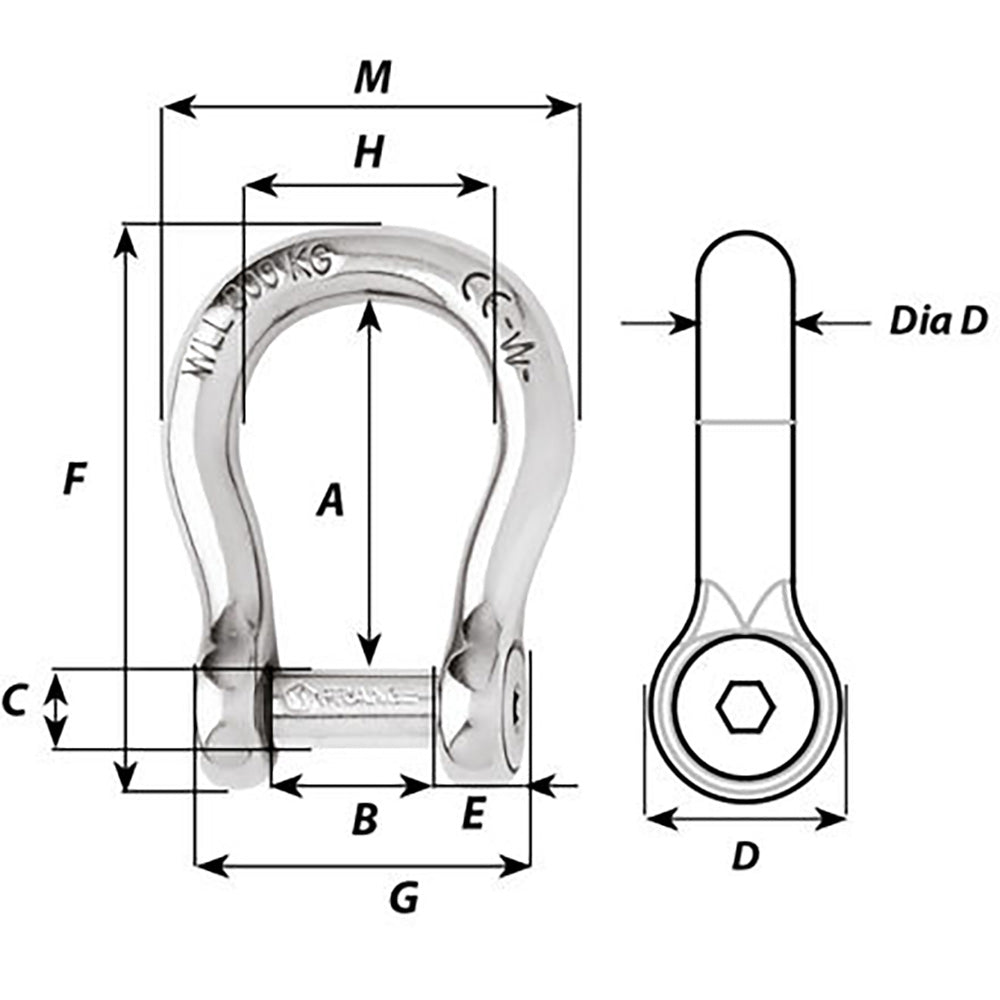

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 29/64" | 37 mm |
| B | 5/8" | 16 mm |
| C | 5/16" | 8 mm |
| D | 5/8" | 16 mm |
| D Diameter | 5/16" | 8 mm |
| E | 9/32" | 7 mm |
| F | 63/64" | 25 mm |
| M | 1 37/64" | 40 mm |
Safety Information
- Working Load (WL): Suitable for nautical applications, ensuring safe and reliable use on vessels.
-
Working Load Limit (WLL): Intended for industrial applications only. The safety factor is five times the breaking load.
WLL = Breaking load / 5
*Sold as an individual unit.
Download the Quick Guide (PDF)
