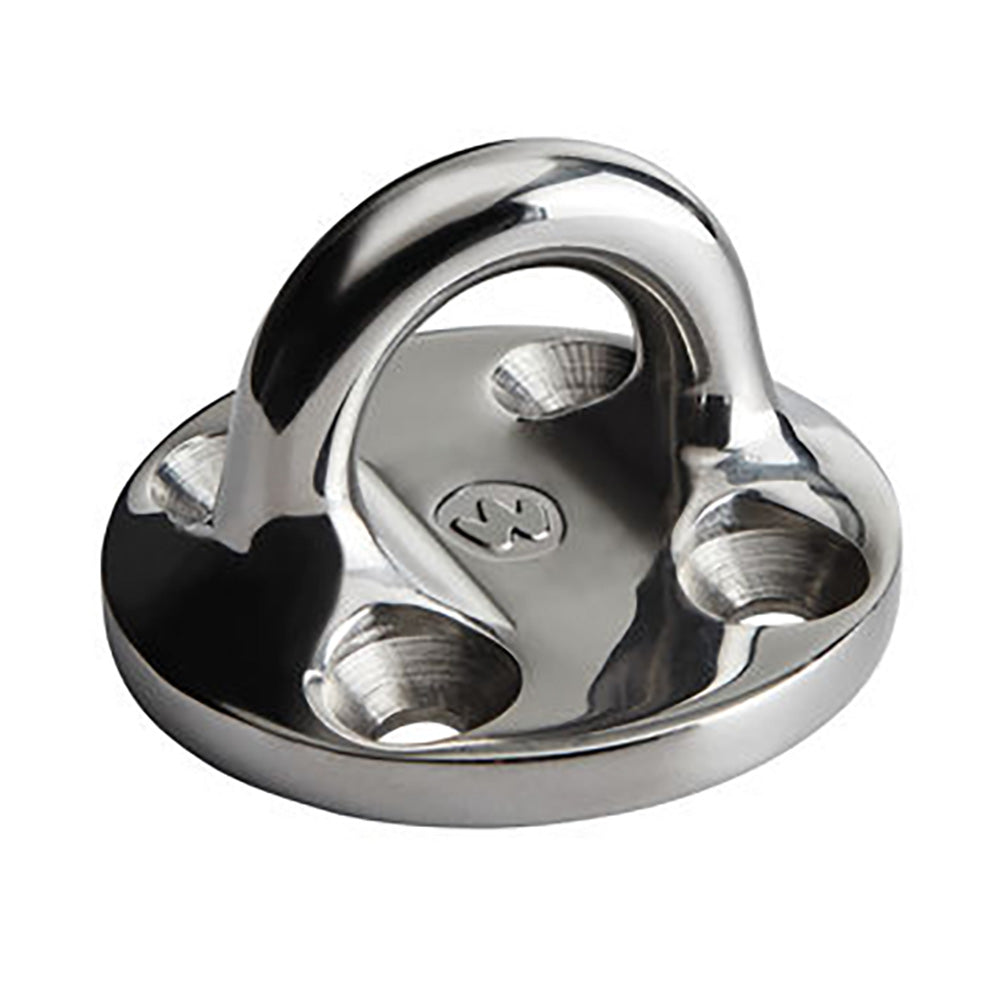

Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed
Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Round Pad Eye with a 57mm (2-1/4") diameter is a reliable fixed fastening solution designed specifically for marine and boating applications. Crafted from high-grade duplex stainless steel, this pad eye offers exceptional corrosion resistance and mechanical strength, ensuring long-lasting performance even in harsh marine environments. Whether you're securing reefing blocks or fastening points on bowsprits and blocks, this versatile pad eye is engineered to meet the demanding needs of boating enthusiasts and professionals alike. Compatible with M6 screws, it provides a secure and sturdy attachment point for various nautical rigging tasks.
Applications
- Securing reefing blocks
- Fastening points on bowsprits
- Attaching blocks and other rigging components
Specifications
| Material | Duplex Stainless Steel Grade |
|---|---|
| Weight | 0.331 lb / 150 g |
| Working Load (WL) 1 (90°) | 5070.6 lb / 2300 kg |
| Working Load (WL) 2 (45°) | 4519.4 lb / 2050 kg |
| Working Load (WL) 3 (0°) | 4299 lb / 1950 kg |
| Breaking Load (BL) 1 (90°) | 10031 lb / 4550 kg |
| Breaking Load (BL) 2 (45°) | 9038.9 lb / 4100 kg |
| Breaking Load (BL) 3 (0°) | 8598 lb / 3900 kg |

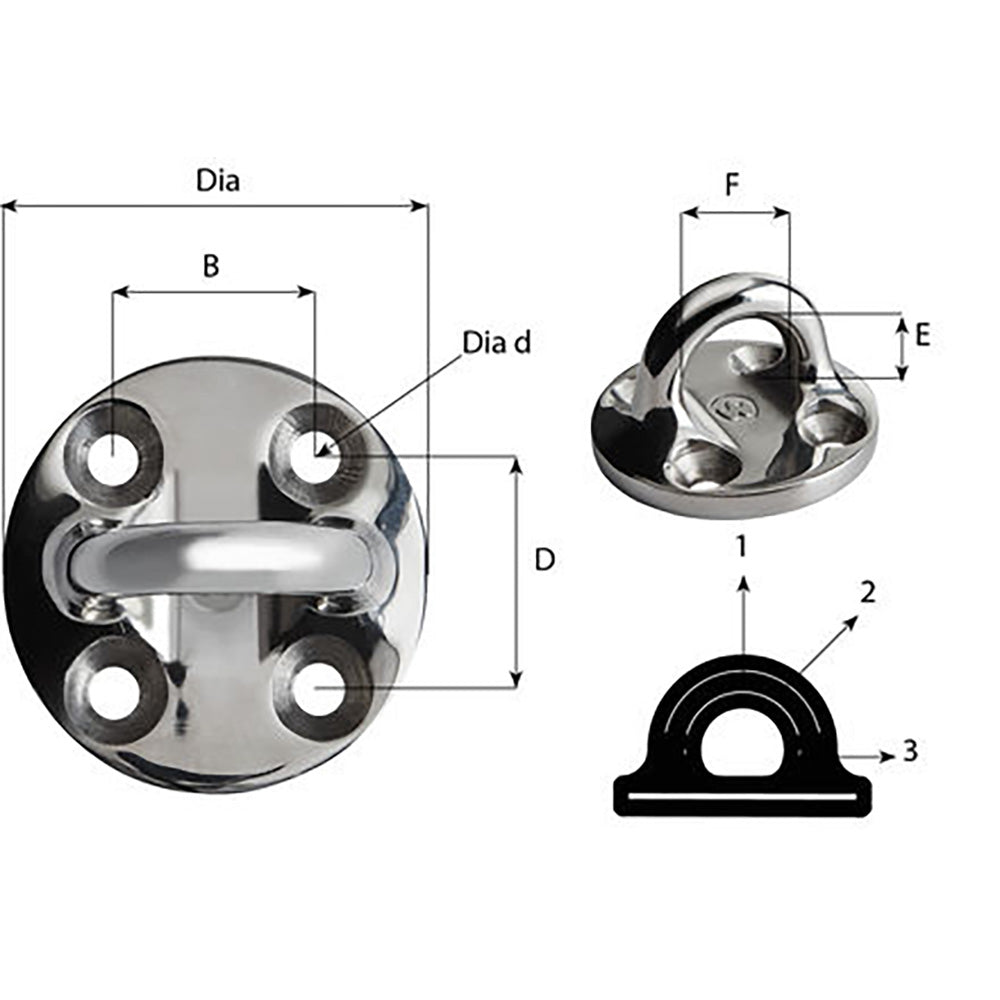

Dimensions
| Dimension A | 2 1/4" / 57 mm |
|---|---|
| Dimension B | 1 1/16" / 27 mm |
| Dimension D | 1 3/16" / 30 mm |
| Dimension E | 3/4" / 19 mm |
| Dimension F | 55/64" / 22 mm |
Safety Information
- Working Load (WL): Suitable for nautical applications, ensuring safe and reliable performance under typical marine loads.
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is five times the breaking load. Calculation: WLL = Breaking Load / 5.
*Sold individually
Download Quick Guide (PDF)
