Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16"
Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Enhance the reliability and safety of your marine operations with our 14mm Diameter D Shackle. Expertly forged from premium grade 316L stainless steel, this durable shackle is tailored for the demanding environments of boating and maritime applications. Whether you're securing moorings, attaching rigging, or handling heavy loads, this D shackle provides outstanding performance and peace of mind.
Features
- Constructed from high-grade 316L stainless steel for superior corrosion resistance
- Non self-locking design with the pin securely locked into one of the indentations
- Engineered to prevent loosening caused by vibrations
- Exceptional working and breaking load capacities suitable for heavy-duty use
- Certified with CE marking for quality and safety
- Part #01207 is a standard D shackle and does not feature a self-locking mechanism
Applications
- Standard mooring and anchoring operations
- Attachment points for blocks and winches
- Securing sails and rigging in marine vessels
- Industrial lifting tasks in shipyards and marine facilities
Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Working Load | 5,290 lb (2,400 kg) |
| Working Load Limit (WLL) | 3,520 lb (1,600 kg) |
| Breaking Load | 17,630 lb (8,000 kg) |
| Weight | 0.688 lb (312 g) |

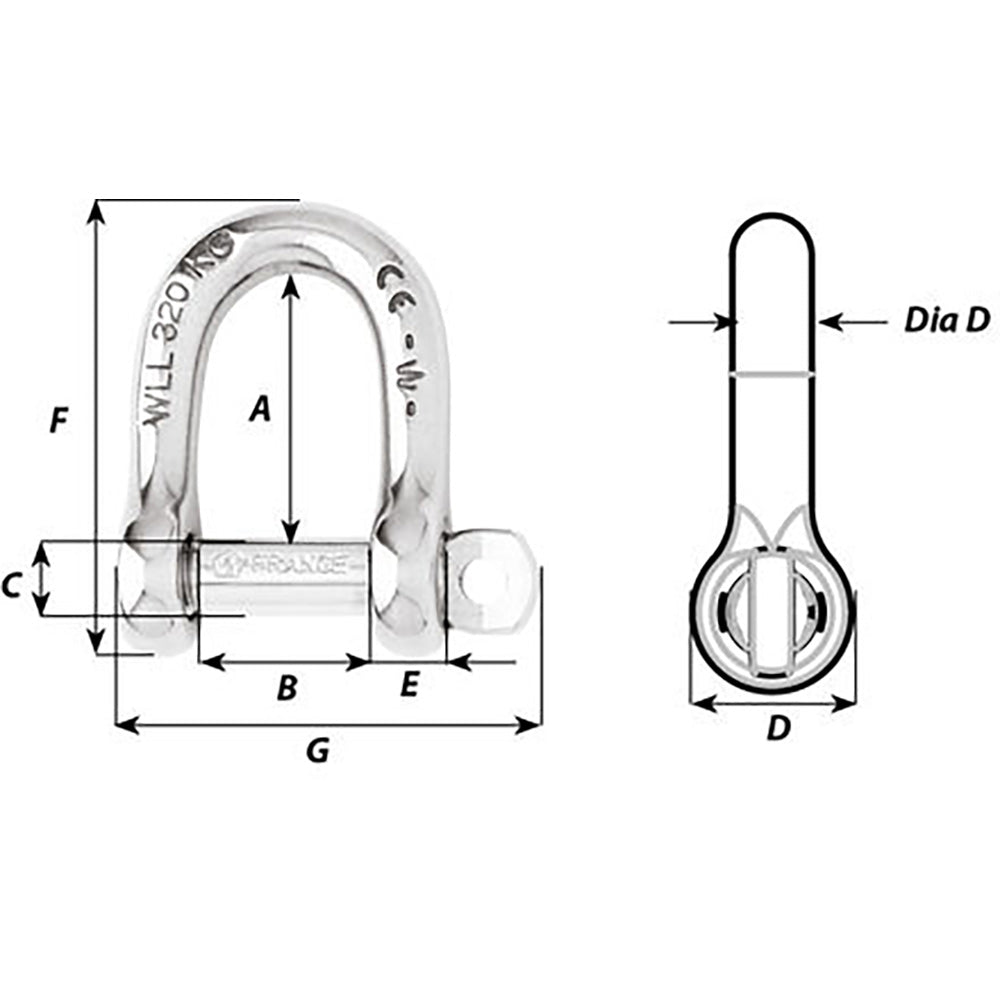

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 27/32" | 47 mm |
| B | 1 7/64" | 28 mm |
| C | 35/64" | 14 mm |
| D | 1 7/64" | 28 mm |
| D Diameter | 35/64" | 14 mm |
| E | 33/64" | 13 mm |
| F | 3 15/64" | 82 mm |
| G | 3 5/64" | 78 mm |
Safety Information
- Working Load (WL): Suitable for nautical applications, ensuring safe handling of loads in marine environments.
- Working Load Limit (WLL): Intended for industrial applications only, with a safety factor of 5 times the breaking load. Calculated as WLL = Breaking Load / 5.
Sold as an individual item.
