Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"
Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

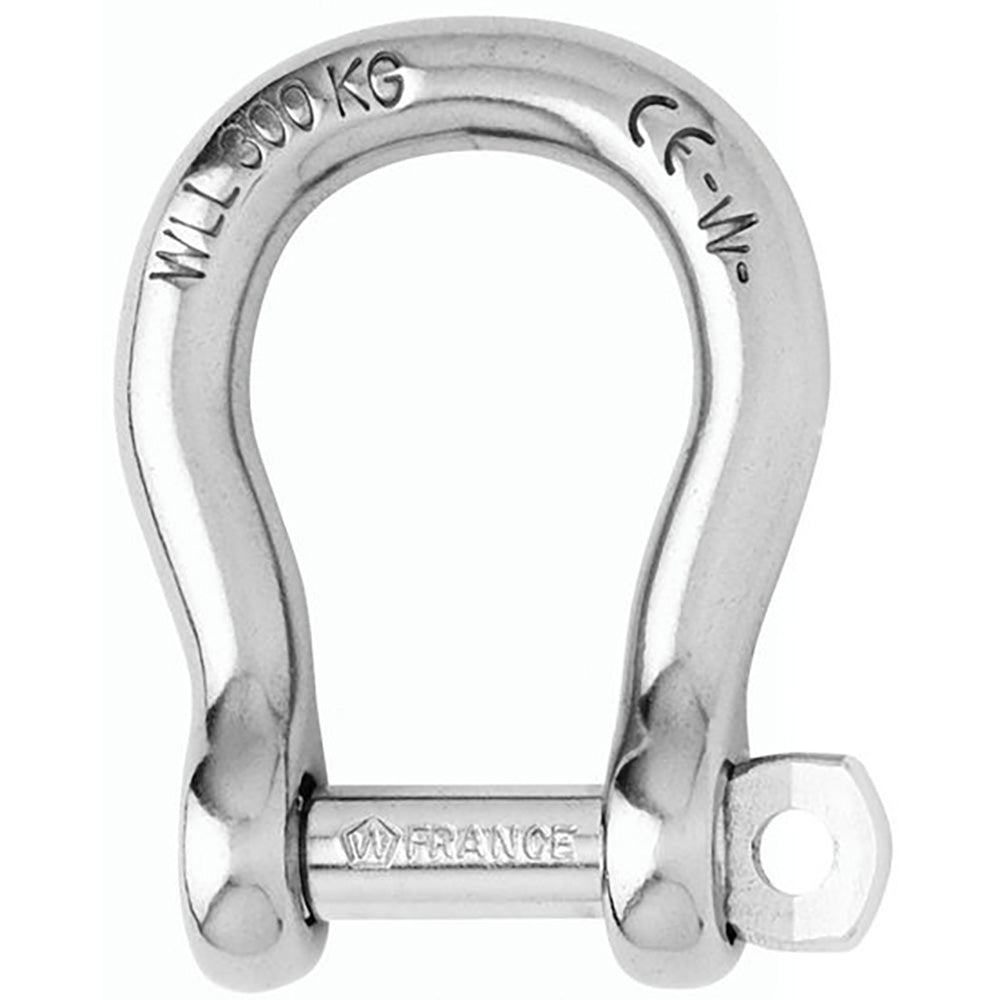

The Not Self-Locking Bow Shackle is an essential component for marine applications, offering robust performance and reliable security for all your boating needs. Crafted from premium grade 316L stainless steel, this shackle ensures durability and resistance against the harsh marine environment.
Features
- Forged from high-grade 316L stainless steel for exceptional strength and corrosion resistance
- Pin securely locks into one of the indentations, preventing accidental loosening
- Designed to withstand vibrations, eliminating the risk of loosening over time
- Superior working and breaking load capacities ensuring safe and reliable use
- Working Load Limit (WLL) suitable for industrial lifting applications
- CE marked for compliance with European safety standards
- Part # 01248 indicates a non-self-locking model for specific applications
Applications
- Ideal for situations where ample room is required for maneuvering
- Allows attachment of multiple lines or cables simultaneously, enhancing versatility
Specifications
| Material | 316 Stainless Steel Grade |
|---|---|
| Working Load (lb) | 9,920 lb / 4,500 kg |
| Working Load Limit (WLL) | 6,610 lb / 3,000 kg |
| Breaking Load | 33,060 lb / 15,000 kg |
| Weight | 2.328 lb / 1.056 kg |

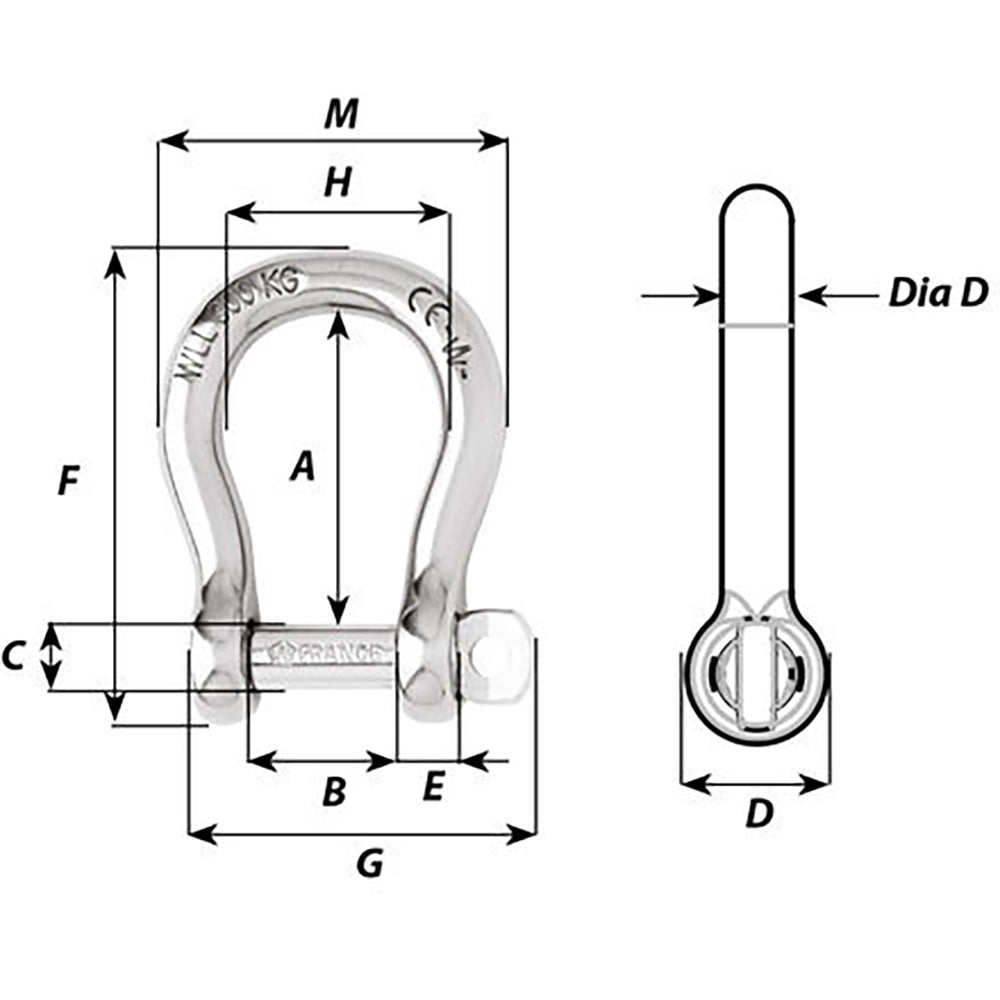

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 3 5/32" | 80 mm |
| B | 1 37/64" | 40 mm |
| C | 25/32" | 20 mm |
| D | 1 37/64" | 40 mm |
| D Diameter | 25/32" | 20 mm |
| E | 45/64" | 18 mm |
| M | 3 15/16" | 100 mm |
Safety Information
- Working Load (WL): Suitable for nautical applications ensuring safe handling on board.
-
Working Load Limit (WLL): Designed exclusively for industrial applications such as lifting. The safety factor is five times the breaking load.
WLL = Breaking load / 5
*Sold individually
