Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"
Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

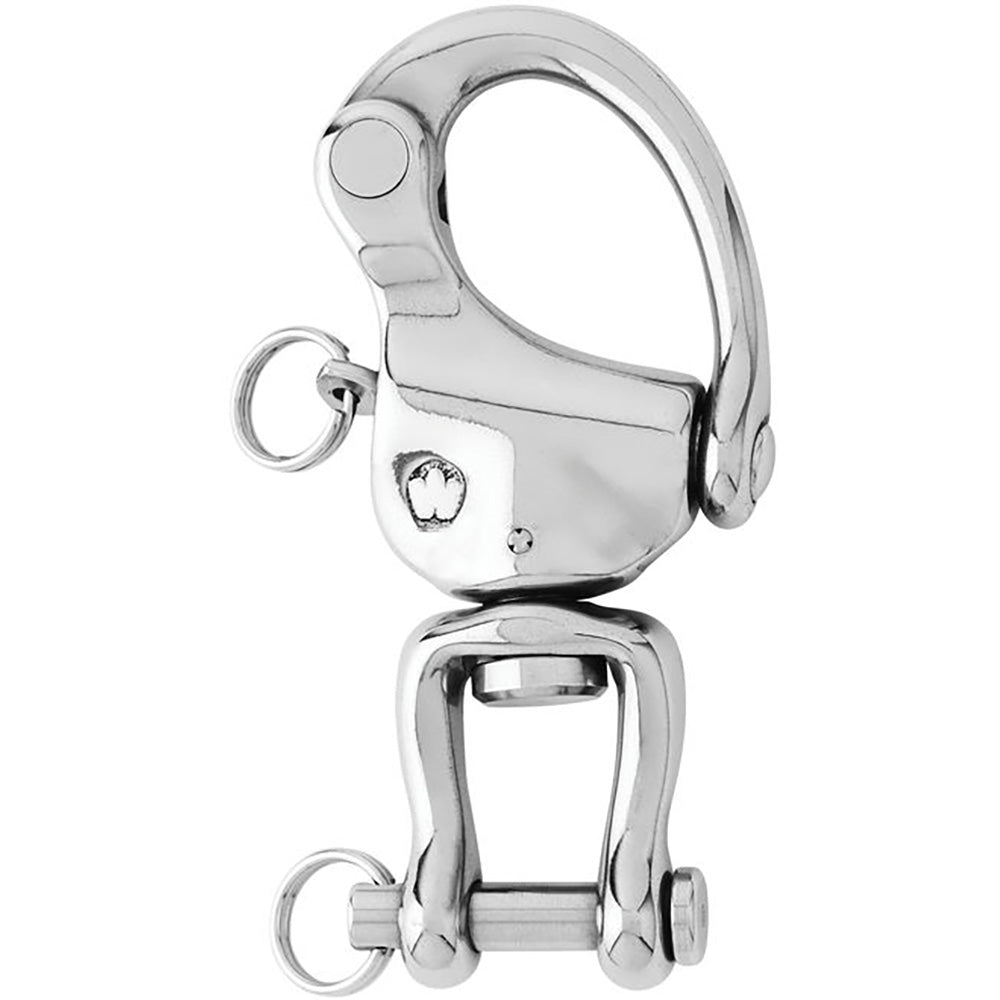

The HR Snap Shackle with Clevis Pin Swivel is an essential hardware component for marine and boating applications, offering superior strength and reliability. Crafted from high-grade stainless steel, this snap shackle ensures secure connections and effortless operation, making it ideal for various nautical uses.
Key Features
- High-Resistance Construction: Made from Grade 17.4 PH stainless steel, ensuring durability and corrosion resistance in harsh marine environments.
- Clevis Pin Swivel: Allows free rotation of the snap shackle, reducing wear and preventing kinks in ropes and cables.
- Secure Plunger Pin: The plunger pin is set captive into the hook, eliminating the risk of detachment during use.
- Exceptional Load Capacity: Designed to handle excellent working and breaking loads, providing safety and reliability.
- Easy Operation: Simple to open by pulling the plunger pin, with the option to attach a lanyard for added convenience.
Suitable Applications
Perfect for a wide range of snap shackle applications in the marine and boating industries, including:
- Securing mooring lines
- Towing and docking operations
- Connecting sails and rigging
- General deck and hardware uses
Technical Specifications
| Material | HR 17.4 PH Stainless Steel Grade |
|---|---|
| Working Load | 5,290 lb (2,400 kg) |
| Breaking Load | 15,430 lb (7,000 kg) |
| Weight | 0.919 lb (417 g) |

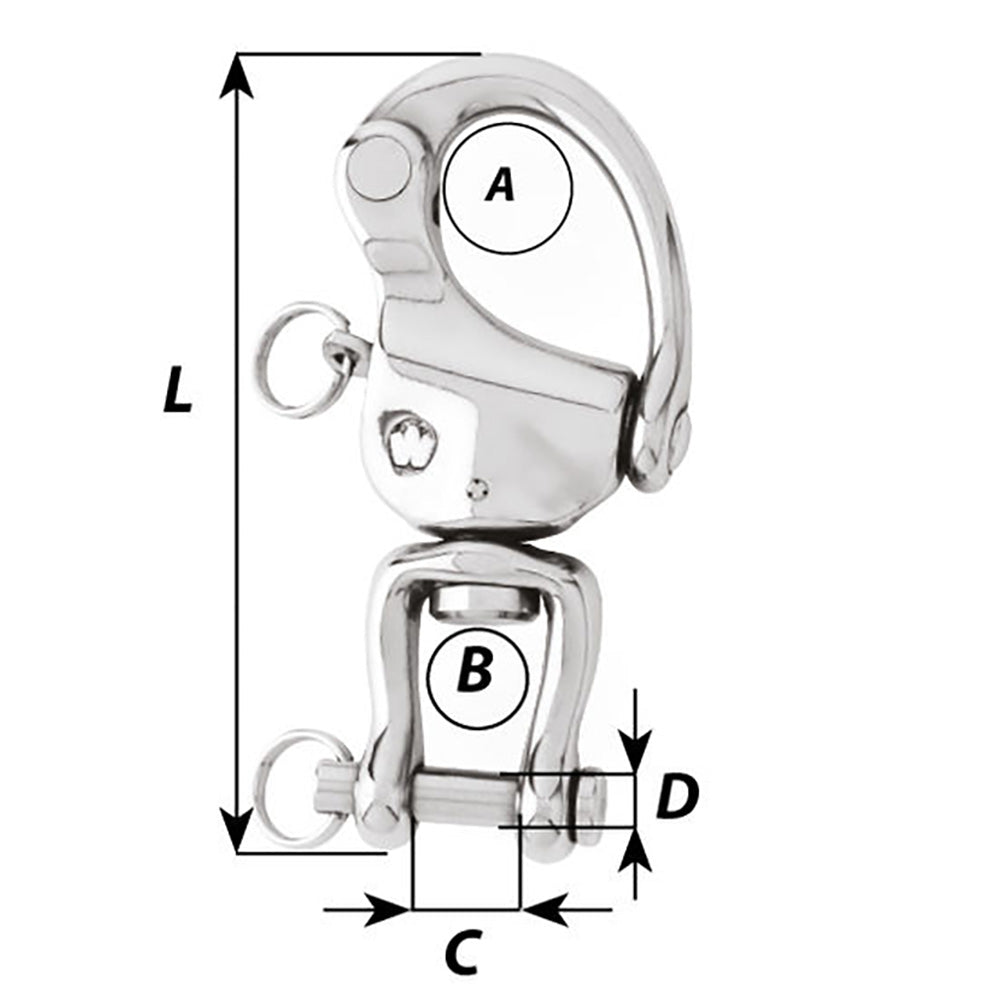

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 1/32" | 26 mm |
| B | 1 1/16" | 27 mm |
| C | 45/64" | 18 mm |
| D Diameter | 7/16" | 11 mm |
| Length | 4 23/32" | 120 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications, ensuring safety and performance on the water.
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is five times the breaking load. WLL = Breaking load / 5.
- High Resistance (HR): Guarantees long-lasting performance even in challenging marine conditions.
*Sold as an individual unit.
