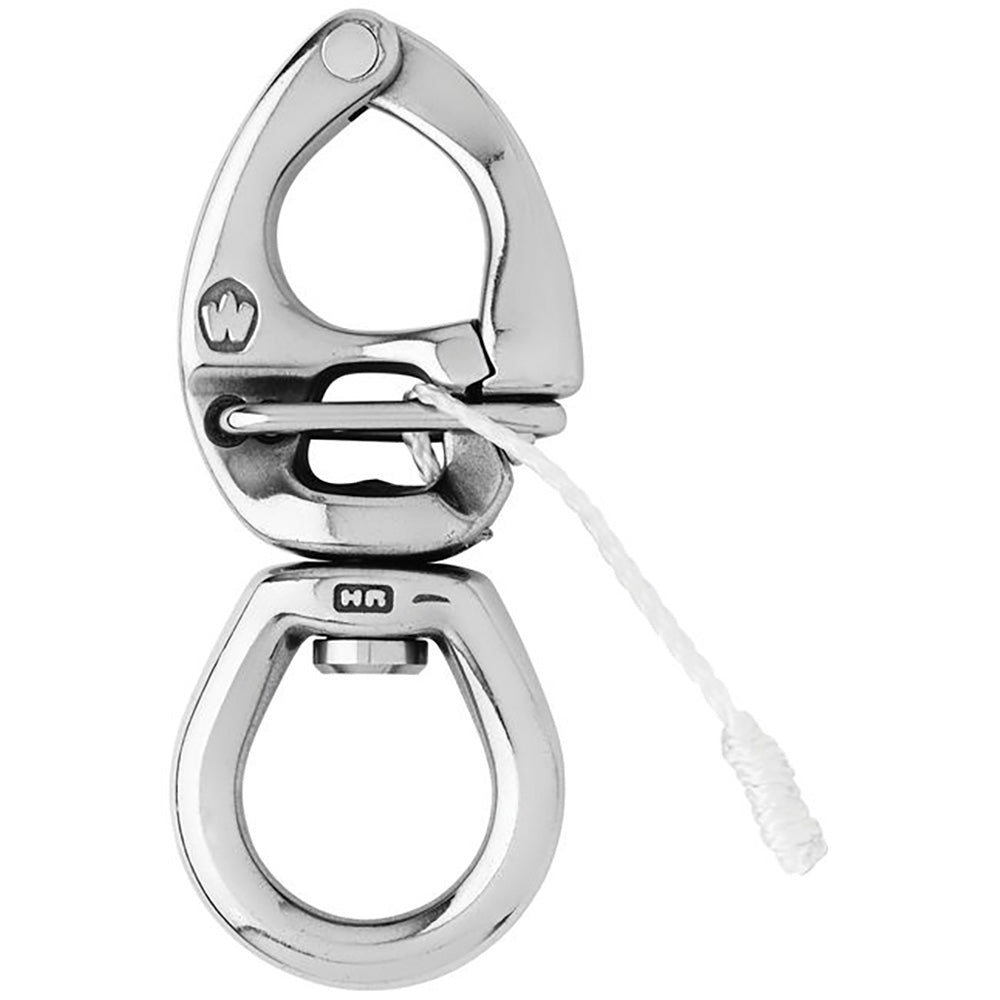

Wichard HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64"
Wichard HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HR Quick Release Snap Shackle with Large Bail is a high-performance hardware essential for marine and boating applications. Crafted from premium HR 17.4 PH stainless steel, this snap shackle offers exceptional strength and reliability, making it perfect for securing multiple lines and managing sails efficiently.
Features
- High-Resistance Forged Construction: Made from HR 17.4 PH stainless steel grade, ensuring maximum durability and strength.
- Quick-Release Mechanism: Easily opens by pulling the lanyard, allowing for swift and hassle-free operations.
- Large Bail Design: Facilitates the attachment of multiple lines, ideal for spinnaker sheets and other rigging needs.
- Exceptional Load Capacity: Outstanding working and breaking loads provide reliable performance under demanding conditions.
- Swivel Functionality: Free rotation of the snap shackle reduces line twists and enhances handling versatility.
Applications
- Spinnaker Operations: Perfect for attaching and managing spinnaker sheets, ensuring smooth sail handling.
- Multiple Line Attachment: Ideal for securing several lines simultaneously, maintaining organized and efficient rigging setups.
Specifications
| Material | HR 17.4 PH Stainless Steel Grade |
|---|---|
| Working Load | 2820 lbs / 1280 kg |
| Breaking Load | 4400 lbs / 2000 kg |
| Weight | 0.22 lbs / 100 g |

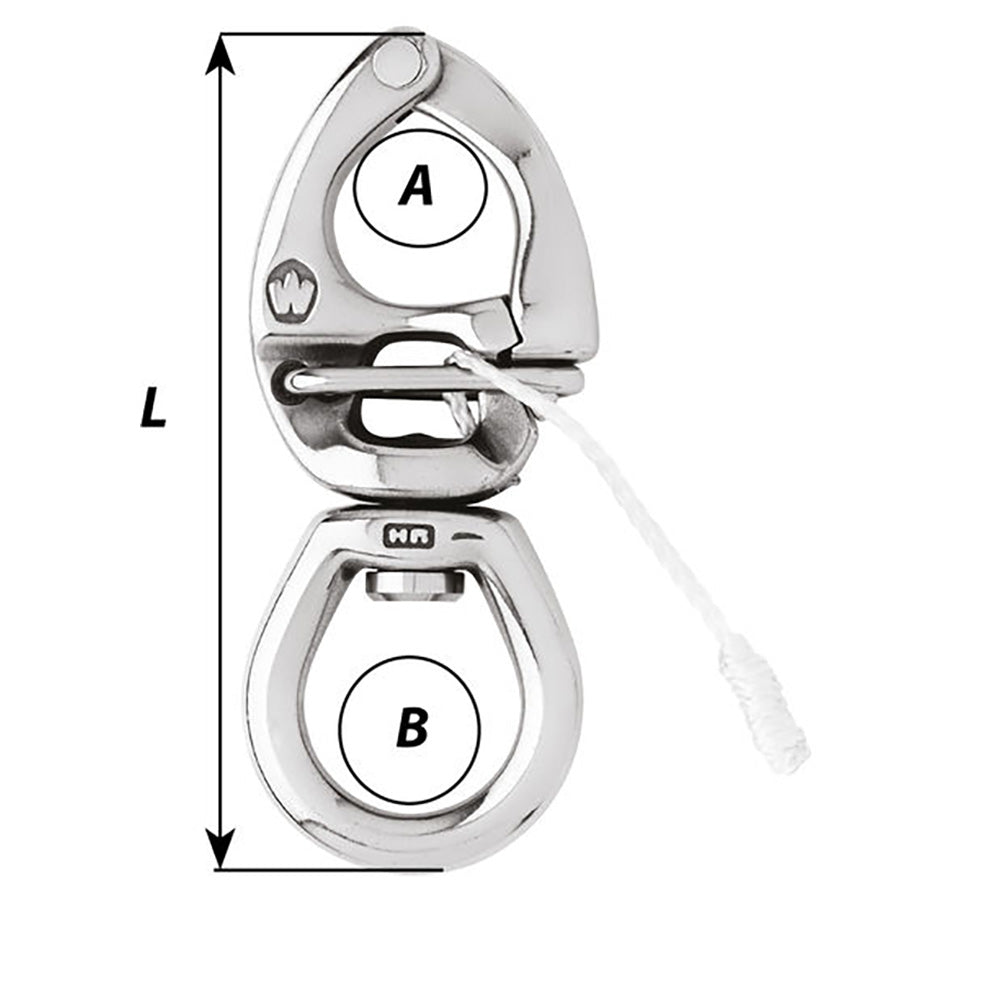

Dimensions
| A | 5/8" / 16 mm |
|---|---|
| B | 29/32" / 23 mm |
| Length | 3 35/64" / 90 mm |
Additional Information
- Working Load (WL): Designed for nautical applications, ensuring safe load limits during use.
- Working Load Limit (WLL): Suitable for industrial applications only. The safety factor is five times the breaking load. WLL = Breaking load / 5.
- High Resistance (HR): Indicates the snap shackle's superior strength and durability, ideal for rigorous marine environments.
*Sold individually.
