Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"
Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HR Quick Release Snap Shackle with Large Bail is an essential hardware component for boating and marine enthusiasts. Designed for reliability and ease of use, this snap shackle allows for swift connections and disconnections, enhancing your sailing experience. Whether you're managing spinnaker sheets or securing multiple lines, its robust construction ensures optimal performance even under demanding conditions.
Features
- High-Resistance forged (17.4 PH) stainless steel construction for enhanced durability
- Quick-release mechanism activated by pulling the lanyard for effortless operation
- Large bail design allows for attaching multiple lines simultaneously, ideal for spinnaker sheets and other applications
- Exceptional working and breaking loads ensure safety and reliability
- Swivel function provides free rotation, reducing line wear and preventing tangles
Applications
- Spinnaker operations for streamlined sail management
- Securing multiple lines such as spinnaker sheets, halyards, and sheets
- General rigging tasks requiring reliable and quick connections
- Industrial applications where high-strength shackles are necessary
Specifications
| Material | HR 17.4 PH Stainless Steel Grade |
|---|---|
| Working Load | 11,460 lbs / 5,200 kg |
| Breaking Load | 17,630 lbs / 8,000 kg |
| Weight | 1.362 lbs / 618 g |

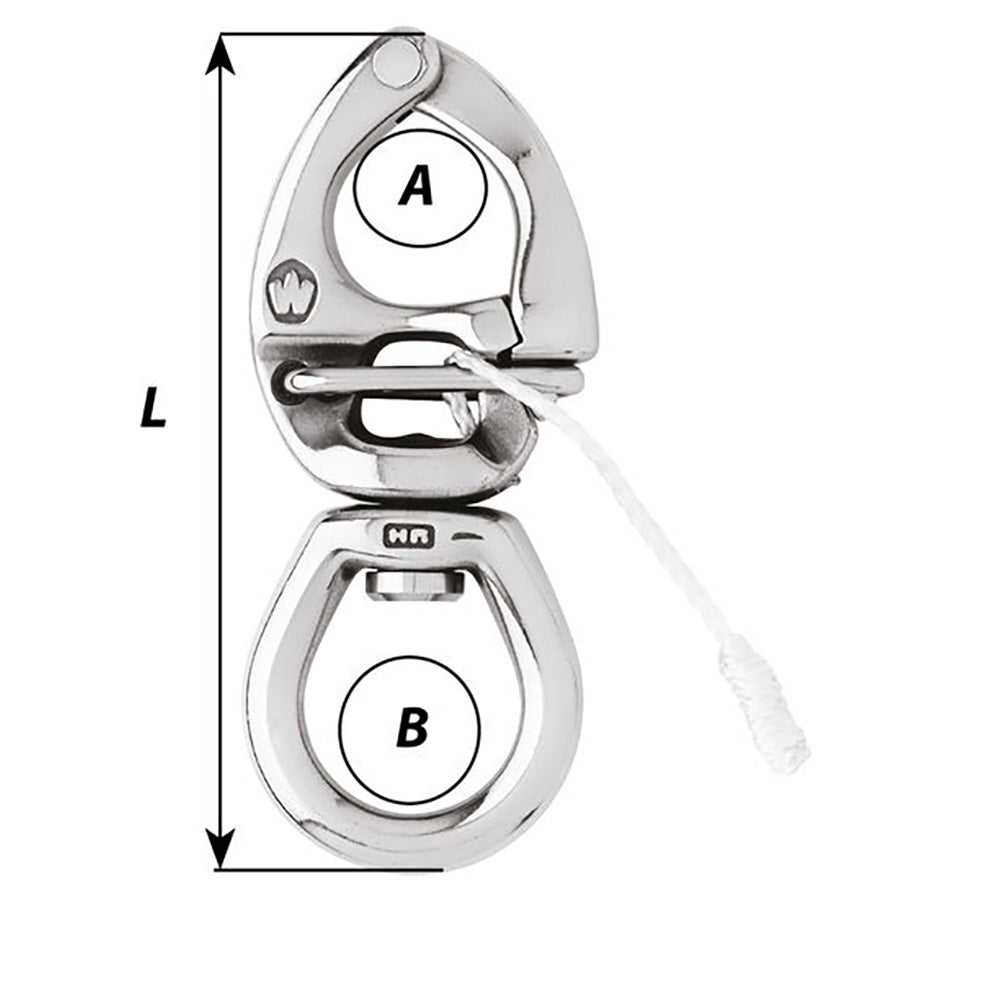

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 11/32" | 34 mm |
| B | 1 39/64" | 41 mm |
| Length | 6 19/64" | 160 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications, ensuring safe and effective use on board.
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5.
- High Resistance (HR): Ensures superior strength and longevity in demanding environments.
*Sold individually
