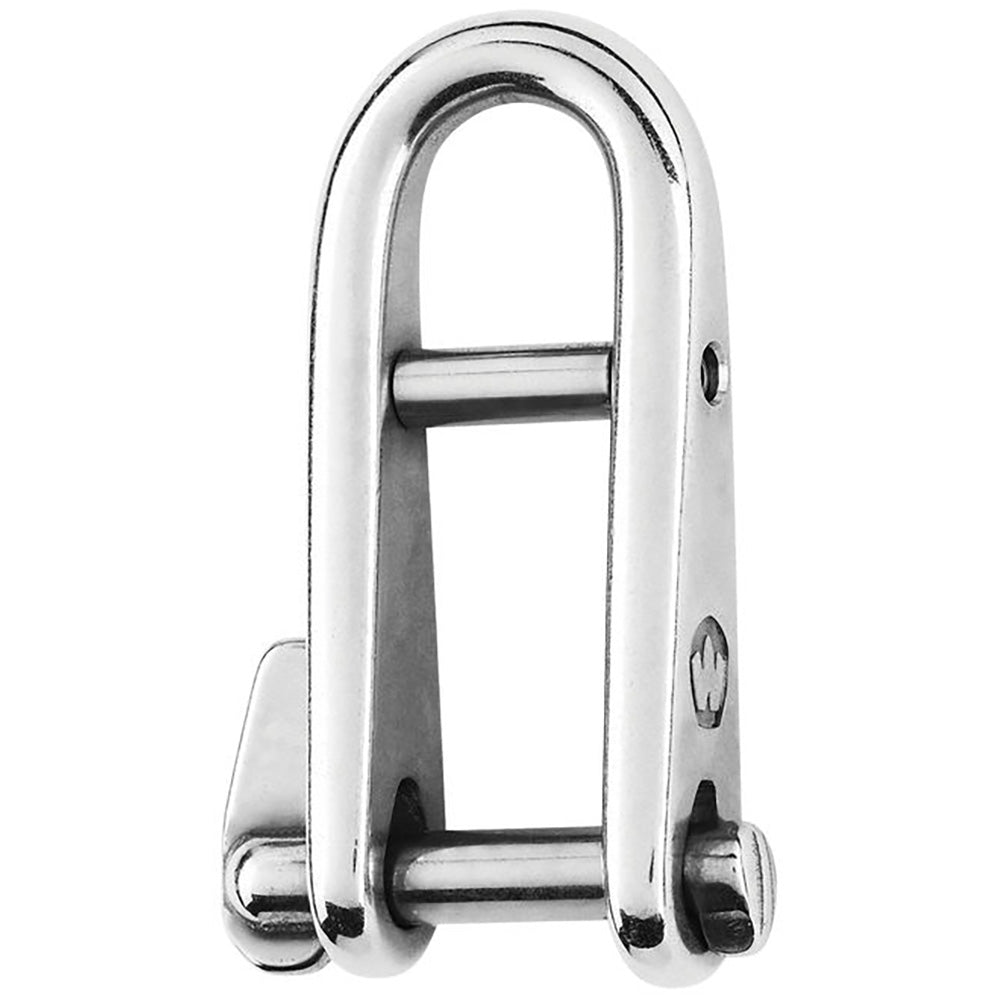

Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter
Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HR Key Pin Shackle with Bar is a robust and reliable hardware essential for any marine or boating setup. Crafted from high-resistance stainless steel, this 8mm pin diameter shackle ensures superior performance and longevity, even under the most demanding conditions on the water.
Key Features
- Superior Construction: Forged D shackle made from HR stainless steel grade (17,4 PH) for enhanced durability.
- Exceptional Load Capacity: Outstanding working and breaking load ratings ensure safety and reliability.
- High Resistance: Up to 60% more resistant than shackles made from 316L stainless steel, providing extended life in harsh marine environments.
- Industrial Grade: Designed specifically for industrial applications such as lifting, with a Working Load Limit (WLL) suitable for heavy-duty use.
- Certified Quality: CE marked, guaranteeing compliance with European safety standards.
Ideal Applications
- High Load Requirements: Perfect for applications that demand high load-bearing capacity, ensuring safety and performance.
- Frequent Operation: Ideal for halyards or any applications requiring the shackle to be opened and closed frequently without compromising strength.
- Not for Mooring: Specifically not recommended for mooring applications to ensure optimal performance and safety.
Technical Specifications
| Material | HR 17.4 PH Stainless Steel Grade |
|---|---|
| Working Load | 2110 lb / 960 kg |
| Breaking Load | 7710 lb / 3500 kg |
| Weight | 0.271 lb / 123 g |

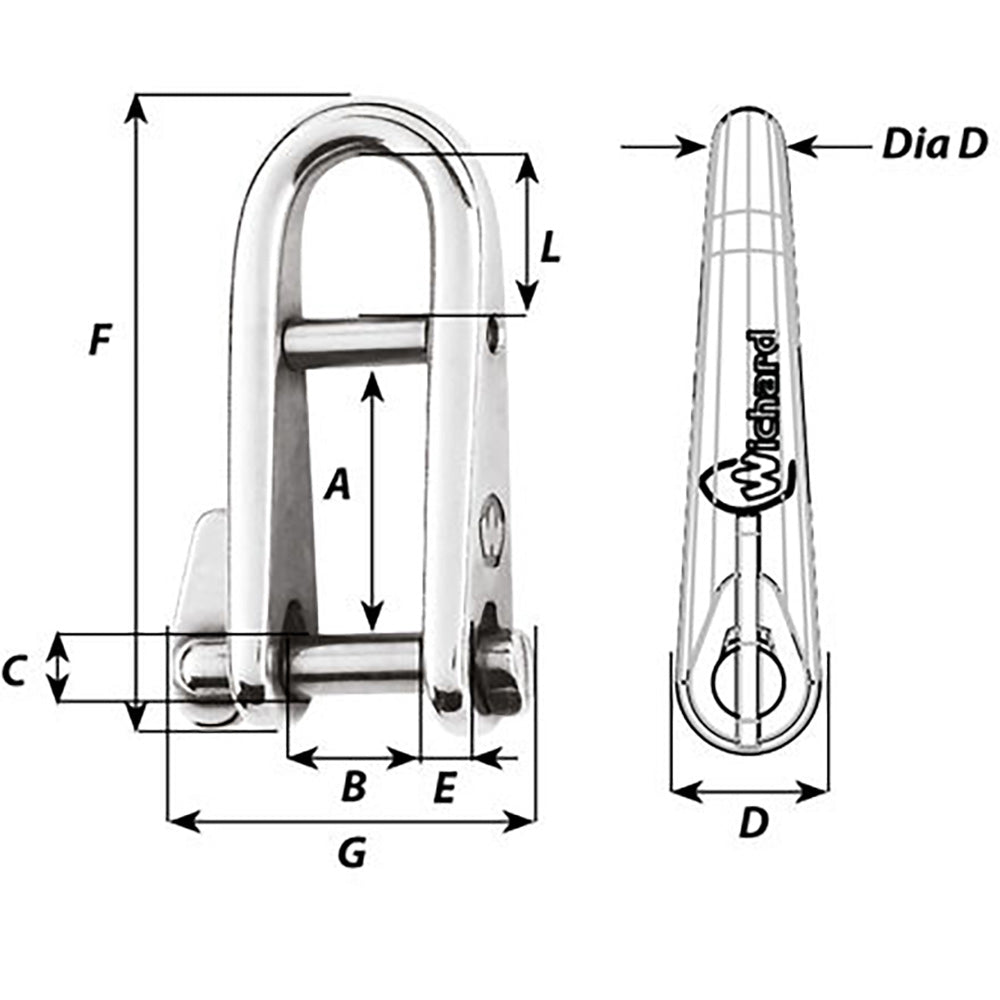

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 2 21/64" | 59 mm |
| B | 53/64" | 21 mm |
| C | 5/16" | 8 mm |
| D | 43/64" | 17 mm |
| E | 15/64" | 6 mm |
| F | 3 7/64" | 79 mm |
| G | 1 57/64" | 48 mm |
| L | 25/32" | 20 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications requiring reliable load management.
- Working Load Limit (WLL): Intended for industrial use only, with a safety factor of five times the breaking load. Calculated as WLL = Breaking Load / 5.
- High Resistance (HR): Ensures the shackle maintains its integrity and performance in challenging marine environments.
Sold individually.
