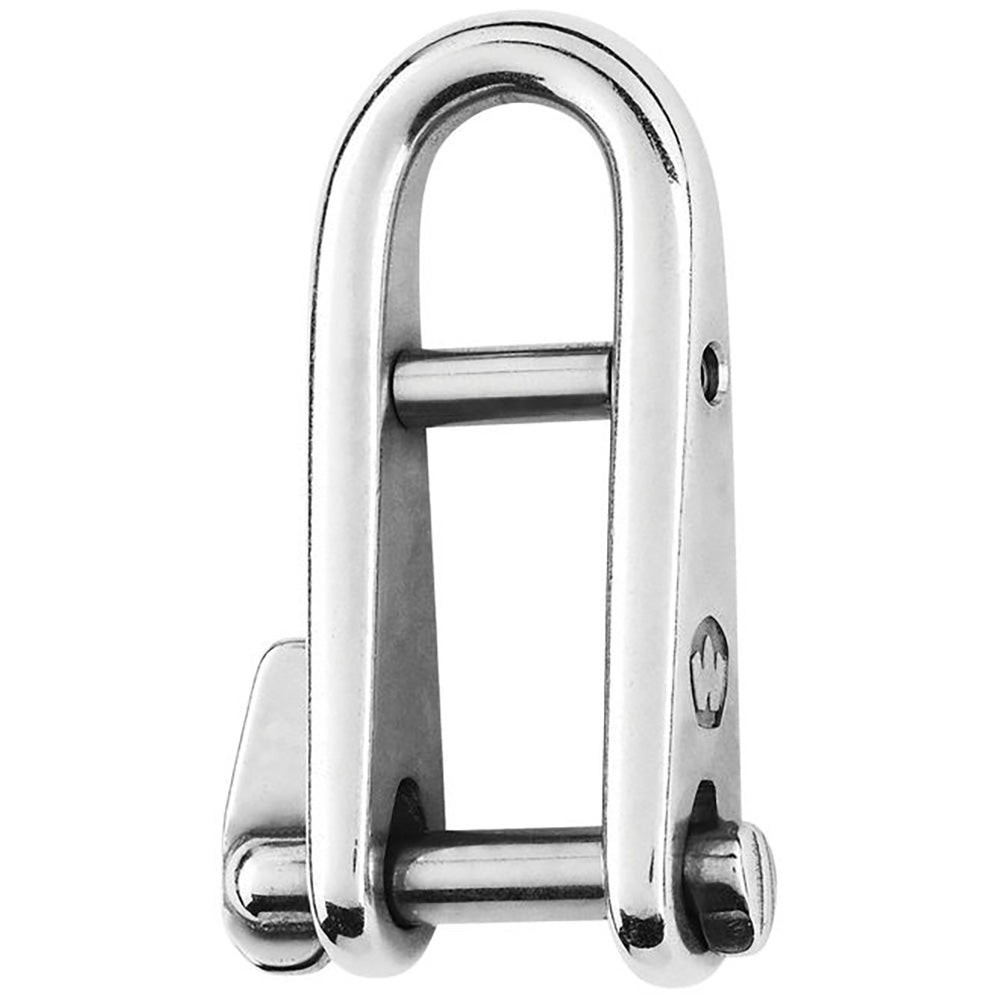

Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter
Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HR Key Pin Shackle with Bar is engineered for marine and boating enthusiasts who demand superior strength and reliability. Made from high-resistance 17.4 PH stainless steel, this shackle is perfect for heavy-duty applications, ensuring safety and longevity in challenging maritime environments.
Features
- Forged D shackle crafted from high-resistance (HR) 17.4 PH stainless steel
- Exceptional working and breaking load capacities for demanding tasks
- Up to 60% more resistant compared to 316L stainless steel shackles
- Working Load Limit (WLL) designed for industrial lifting applications
- CE marked for compliance with safety standards
Applications
- Ideal for high-load requirements in marine settings
- Perfect for halyards or applications that require frequent opening and closing of the shackle
- Not recommended for mooring applications
Specifications
| Parameter | Details |
|---|---|
| Material | HR 17.4 PH stainless steel grade |
| Working Load | 1050 lb / 480 kg |
| Breaking Load | 3300 lb / 1500 kg |
| Weight | 0.068 lb / 31 g |

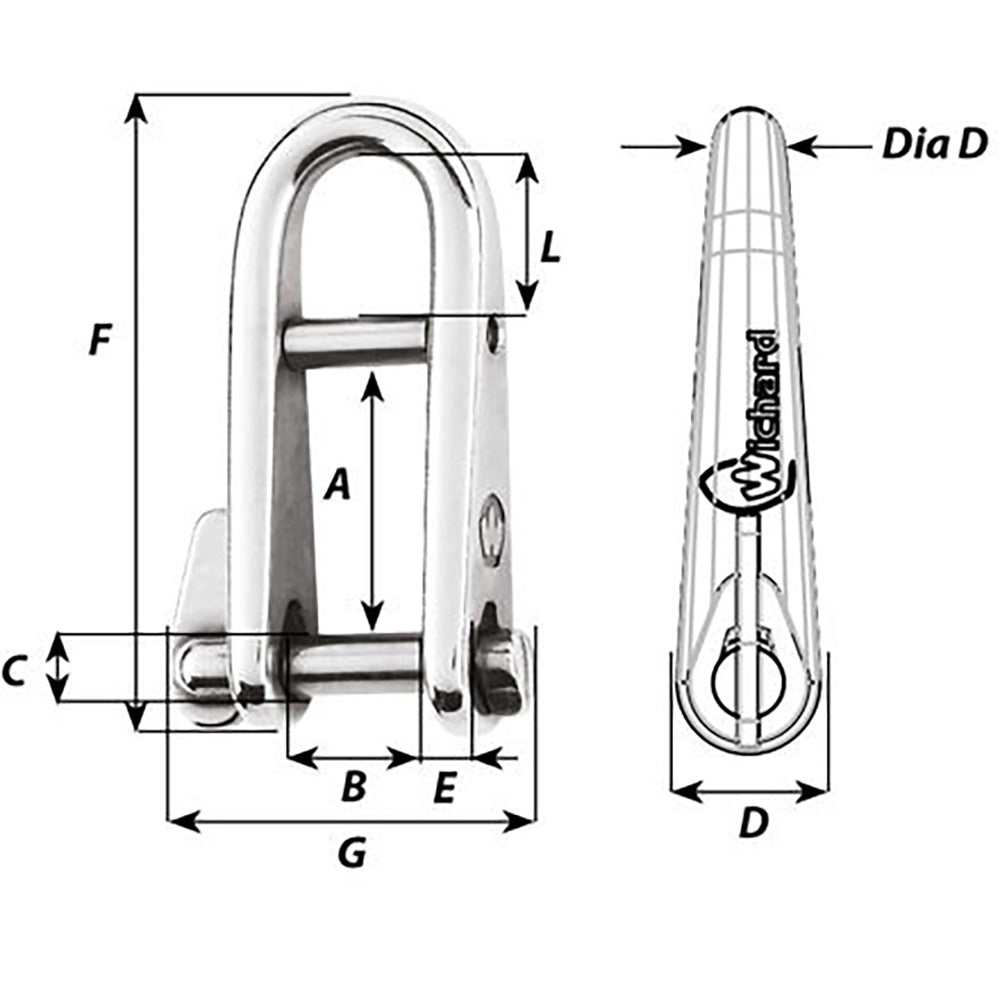

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 29/64" | 37 mm |
| B | 33/64" | 13 mm |
| C | 13/64" | 5 mm |
| D | 7/16" | 11 mm |
| E | 5/32" | 4 mm |
| F | 1 59/64" | 49 mm |
| G | 1 7/32" | 31 mm |
| L | 15/32" | 12 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking Load / 5
- High Resistance (HR): Enhanced durability and strength for prolonged use
Sold individually.
