Wichard HR D Shackle - 14mm Diameter - 35/64"
Wichard HR D Shackle - 14mm Diameter - 35/64" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

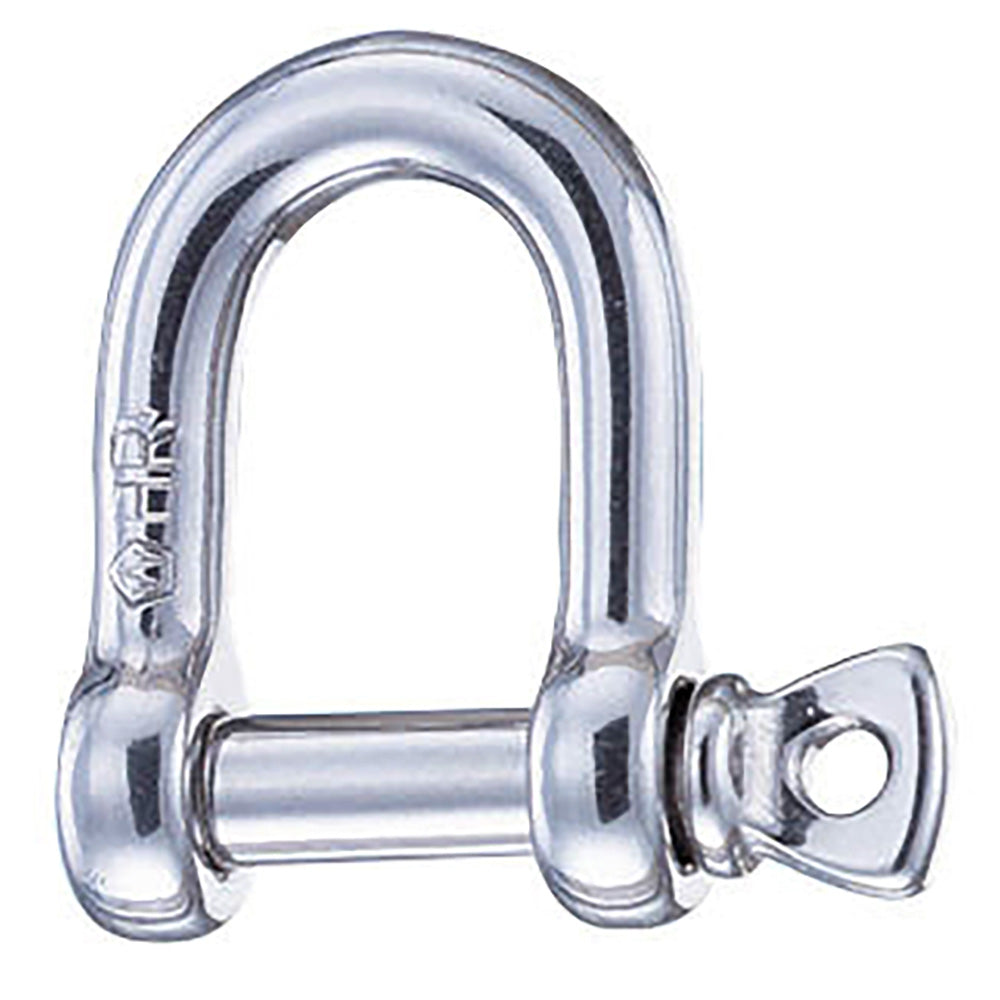

The HR D Shackle is a robust and reliable connector designed specifically for demanding marine and industrial applications. Crafted from high-resistance 17.4 PH stainless steel, this 14mm diameter shackle offers exceptional strength and durability, making it an essential component for your boating and lifting needs.
Features
- Superior Material: Forged from HR 17.4 PH stainless steel grade, ensuring longevity and resistance to harsh marine environments.
- Exceptional Load Capacity: Outstanding working and breaking load ratings provide maximum safety and performance.
- High Resistance: Up to 60% more resistant than standard 316L stainless steel shackles, offering enhanced durability.
- Certification: CE marked, adhering to European safety standards.
- Industrial Utility: Rated Working Load Limit (WLL) suitable only for industrial lifting applications.
Applications
- High-Load Requirements: Ideal for applications that demand high strength and reliability.
- Standard Shackle Uses: Perfect for various standard shackle applications on boats and marine equipment.
- Attachment Points: Suitable for attaching blocks, heads, and other rigging components.
- Not for Mooring: Not recommended for mooring applications; designed for lifting and connection tasks.
Specifications
| Specification | Details |
|---|---|
| Material | HR 17.4 PH Stainless Steel Grade |
| Working Load (WL) | 11,280 lbs / 5,120 kg |
| Working Load Limit (WLL) | 5,290 lbs / 2,400 kg |
| Breaking Load | 26,450 lbs / 12,000 kg |
| Weight | 0.67 lbs / 304 g |

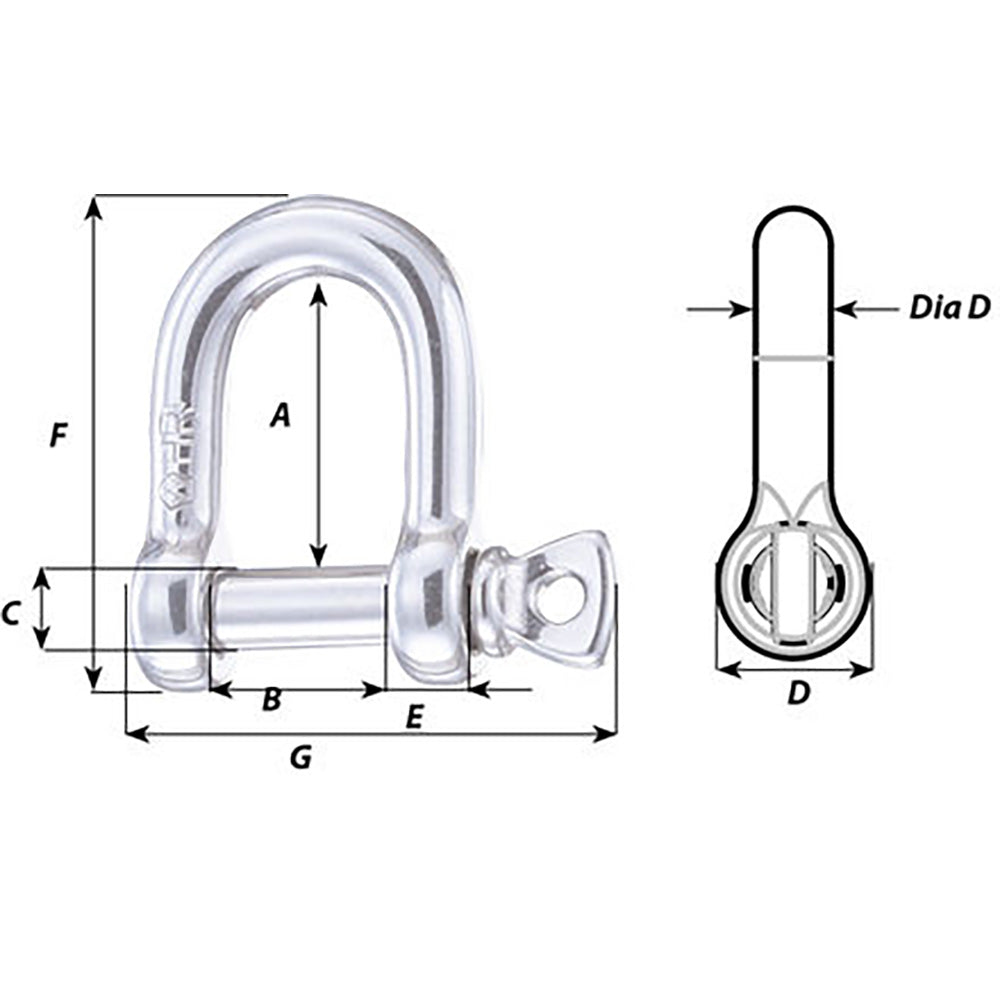

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| Length A | 1 59/64" | 49 mm |
| Length B | 1 7/64" | 28 mm |
| Diameter D | 35/64" | 14 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications, providing reliable performance in marine settings.
- Working Load Limit (WLL): Designed for industrial applications only. The safety factor is five times the breaking load. WLL = Breaking load / 5.
- High Resistance (HR): Indicates the superior resistance properties of the shackle.
- Sold Individually
