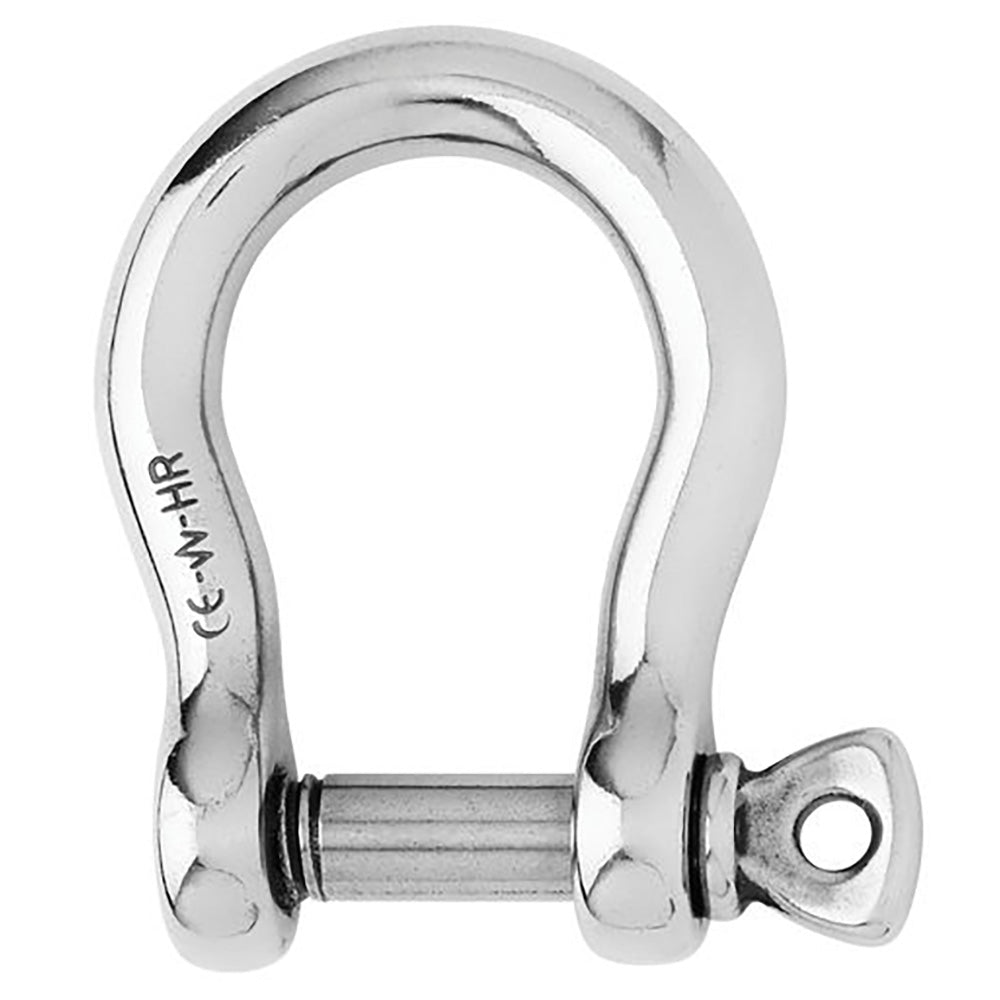

Wichard HR Bow Shackle - 24mm Diameter - 15/16"
Wichard HR Bow Shackle - 24mm Diameter - 15/16" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HR Bow Shackle is a high-performance marine-grade shackle designed to withstand demanding nautical applications. Crafted from superior HR 17.4 PH stainless steel, this shackle offers unparalleled strength and durability, making it an essential component for any boating or marine setup.
Whether you're securing heavy loads on a yacht, rigging essential equipment, or ensuring the safety and reliability of your vessel's connections, the HR Bow Shackle delivers exceptional performance and peace of mind.
Features
- Premium Material: Forged from HR stainless steel grade (17.4 PH) providing superior strength and corrosion resistance essential for marine environments.
- High Load Capacity: Exceptional working and breaking load ratings, ensuring reliable performance under heavy-duty conditions.
- Enhanced Durability: Up to 60% more resistant compared to standard 316L stainless steel shackles, offering extended service life.
- Industrial-Grade: Designed exclusively for industrial applications such as lifting, rigging, and securing equipment.
- Compliance: CE marked, adhering to European safety standards for quality and reliability.
Applications
- Heavy-Duty Marine Lifting: Ideal for hoisting sails, anchor chains, and other substantial loads on boats and yachts.
- Rigging and Equipment Securing: Perfect for attaching multiple lines or cables when ample room is required.
- Industrial Marine Operations: Suitable for various industrial tasks requiring robust and dependable shackles.
- Not for Mooring: Specifically designed for lifting and industrial use, not recommended for mooring applications.
Specifications
| Material | HR 17.4 PH stainless steel grade |
|---|---|
| Working Load | 28,210 lbs / 12,800 kg |
| Working Load Limit (WLL) | 15,430 lbs / 7,000 kg |
| Breaking Load | 77,160 lbs / 35,000 kg |
| Weight | 3.761 lbs / 1.706 kg |

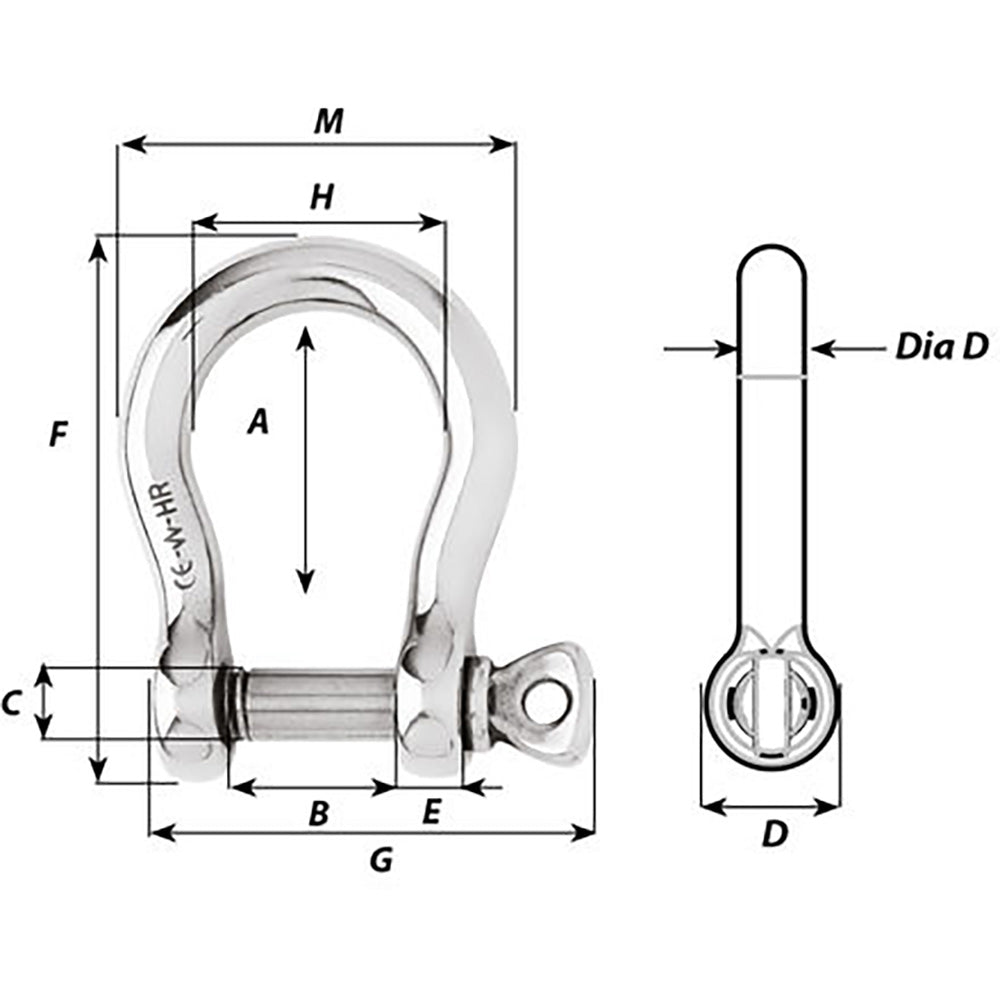

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 4 1/4" | 108 mm |
| B | 1 57/64" | 48 mm |
| C | 15/16" | 24 mm |
| D | 1 27/32" | 47 mm |
| D Diameter | 15/16" | 24 mm |
| E | 25/32" | 20 mm |
| M | 4 41/64" | 118 mm |
Additional Information
- Working Load (WL): Designed specifically for nautical lifting applications, ensuring safety and reliability.
- Working Load Limit (WLL): Intended for industrial applications only, with a safety factor of 5 times the breaking load. WLL = Breaking load / 5.
- High Resistance (HR): Engineered for enhanced durability and strength, suitable for harsh marine environments.
*Sold individually
