Wichard HR Bow Shackle - 20mm Diameter - 25/32"
Wichard HR Bow Shackle - 20mm Diameter - 25/32" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

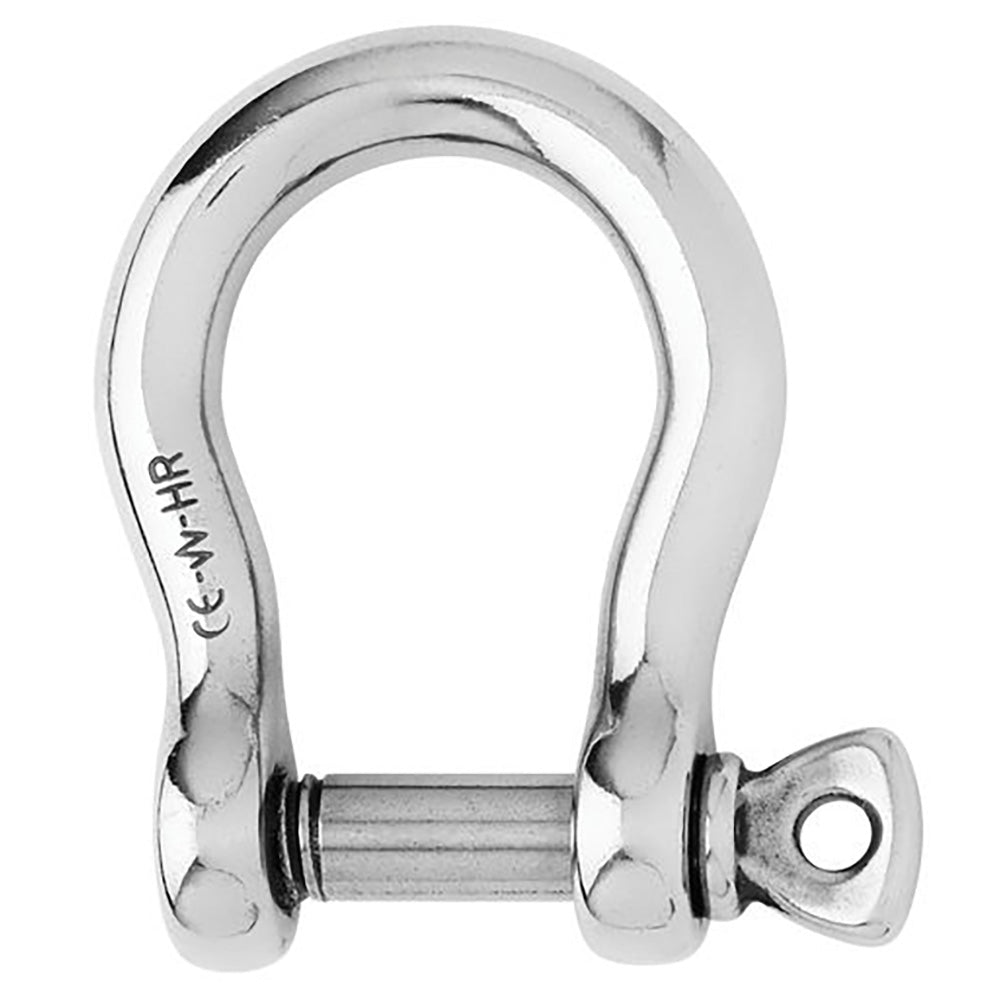

The HR Bow Shackle is engineered for demanding marine and industrial applications, delivering exceptional strength and reliability. Crafted from high-resistance 17.4 PH stainless steel, this shackle ensures superior performance in lifting and securing tasks on board your vessel.
Key Features
- Superior Material: Forged from high-resistance 17.4 PH stainless steel grade, offering enhanced durability and corrosion resistance.
- Exceptional Load Capacity: Designed to provide outstanding working and breaking loads, making it ideal for heavy-duty applications.
- High Strength: Up to 60% more resistant than standard 316L stainless steel shackles, ensuring long-lasting performance.
- Industrial-Grade WLL: Specifically rated for industrial applications such as lifting, with a Working Load Limit (WLL) calculated at one-fifth of the breaking load.
- CE Marked: Complies with European safety standards, guaranteeing quality and reliability.
Ideal Applications
- High Load Requirements: Perfect for scenarios demanding high load capacity, such as securing heavy equipment on boats and ships.
- Ample Space Utilization: The bow shackle design provides ample room for attaching large lines or multiple cables without interference.
- Versatile Attachment: Capable of connecting several lines or cables simultaneously, enhancing operational flexibility.
- Not for Mooring: Designed for lifting and securing purposes only; unsuitable for mooring applications.
Technical Specifications
| Property | Value |
|---|---|
| Material | HR 17.4 PH Stainless Steel Grade |
| Working Load | 19,400 lbs (8,800 kg) |
| Working Load Limit (WLL) | 12,340 lbs (5,600 kg) |
| Breaking Load | 61,720 lbs (28,000 kg) |
| Weight | 2.229 lbs (1.011 kg) |

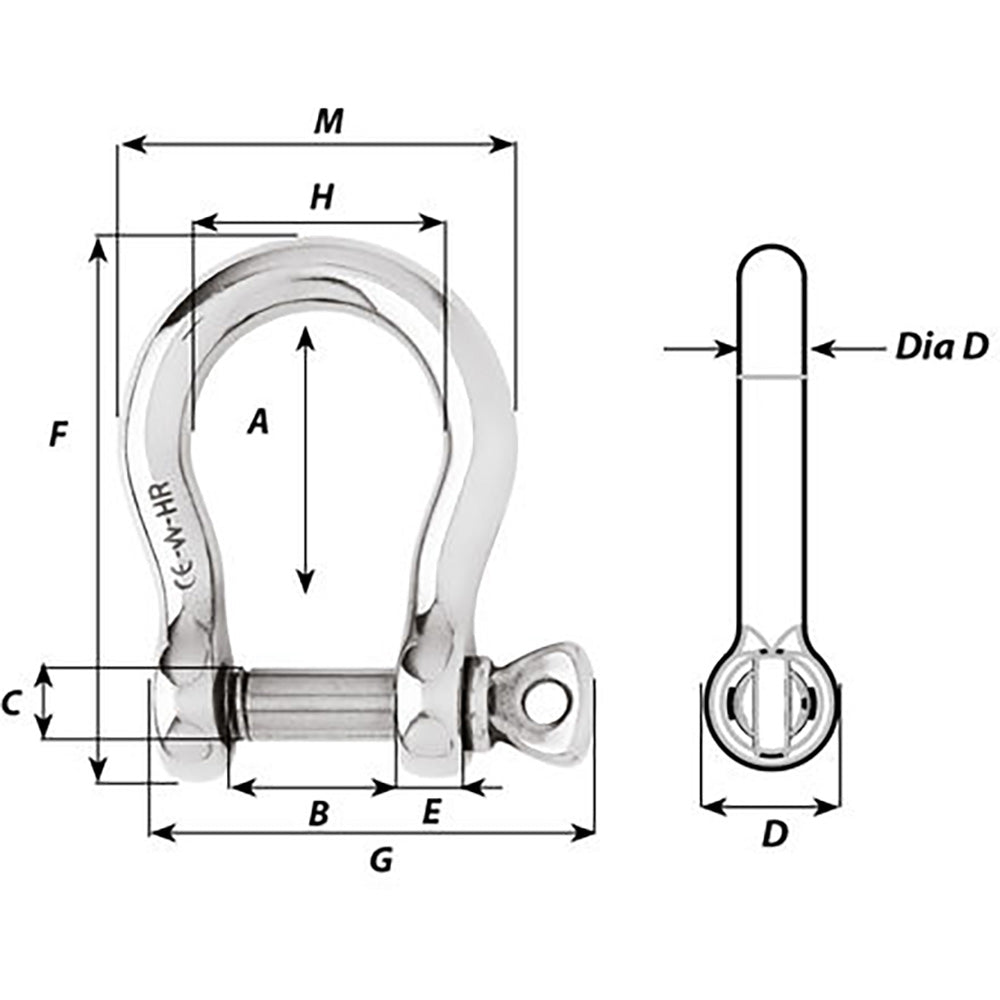

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 3 5/32" | 80 mm |
| B | 1 37/64" | 40 mm |
| C | 25/32" | 20 mm |
| D | 1 37/64" | 40 mm |
| D Diameter | 25/32" | 20 mm |
| E | 45/64" | 18 mm |
| M | 3 15/16" | 100 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications requiring robust load-bearing capabilities.
- Working Load Limit (WLL): Intended exclusively for industrial applications such as lifting. Calculated with a safety factor of five times the breaking load (WLL = Breaking Load / 5).
- High Resistance (HR): Ensures superior performance and longevity under harsh marine conditions.
*Sold as an individual unit.
Download the Quick Guide (PDF)
