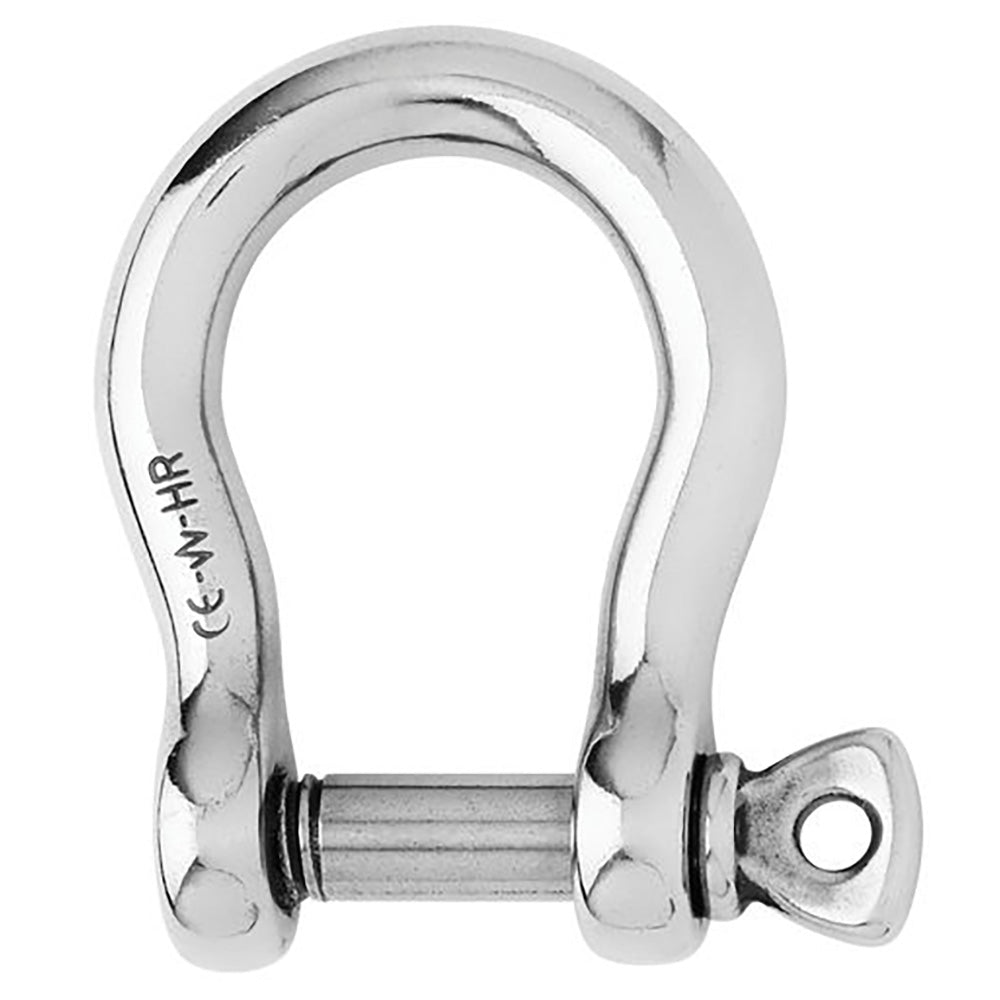

Wichard HR Bow Shackle - 16mm Diameter - 5/8"
Wichard HR Bow Shackle - 16mm Diameter - 5/8" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HR Bow Shackle, boasting a 16mm diameter (5/8"), is engineered for high-performance maritime applications. Constructed from HR 17.4 PH stainless steel, this bow shackle delivers exceptional strength and durability, making it an ideal choice for boating enthusiasts and professionals who demand reliability in demanding conditions.
Key Features
- Premium Construction: Forged from HR 17.4 PH stainless steel grade, ensuring longevity and resistance to corrosion in marine environments.
- Superior Strength: Offers outstanding working and breaking loads, providing enhanced safety and reliability.
- Enhanced Durability: HR shackles are up to 60% more resistant than those made from 316L stainless steel, delivering superior performance.
- Industrial Grade WLL: Working Load Limit (WLL) is designated for industrial applications such as lifting and heavy-duty tasks.
- Certified Quality: Comes with CE marking, ensuring compliance with European safety standards.
Ideal Applications
- High-Load Requirements: Perfect for applications that demand handling of substantial loads.
- Spacious Connections: Designed to be used in scenarios where ample room is necessary for maneuvering.
- Multi-Line Attachments: Capable of accommodating several lines or cables simultaneously.
- Not for Mooring: Specifically not recommended for mooring applications to ensure optimal performance and safety.
Technical Specifications
| Attribute | Details |
|---|---|
| Material | HR 17.4 PH Stainless Steel Grade |
| Working Load | 14,990 lb / 6,800 kg |
| Working Load Limit (WLL) | 8,370 lb / 3,800 kg |
| Breaking Load | 41,880 lb / 19,000 kg |
| Weight | 1.16 lb / 526 g |

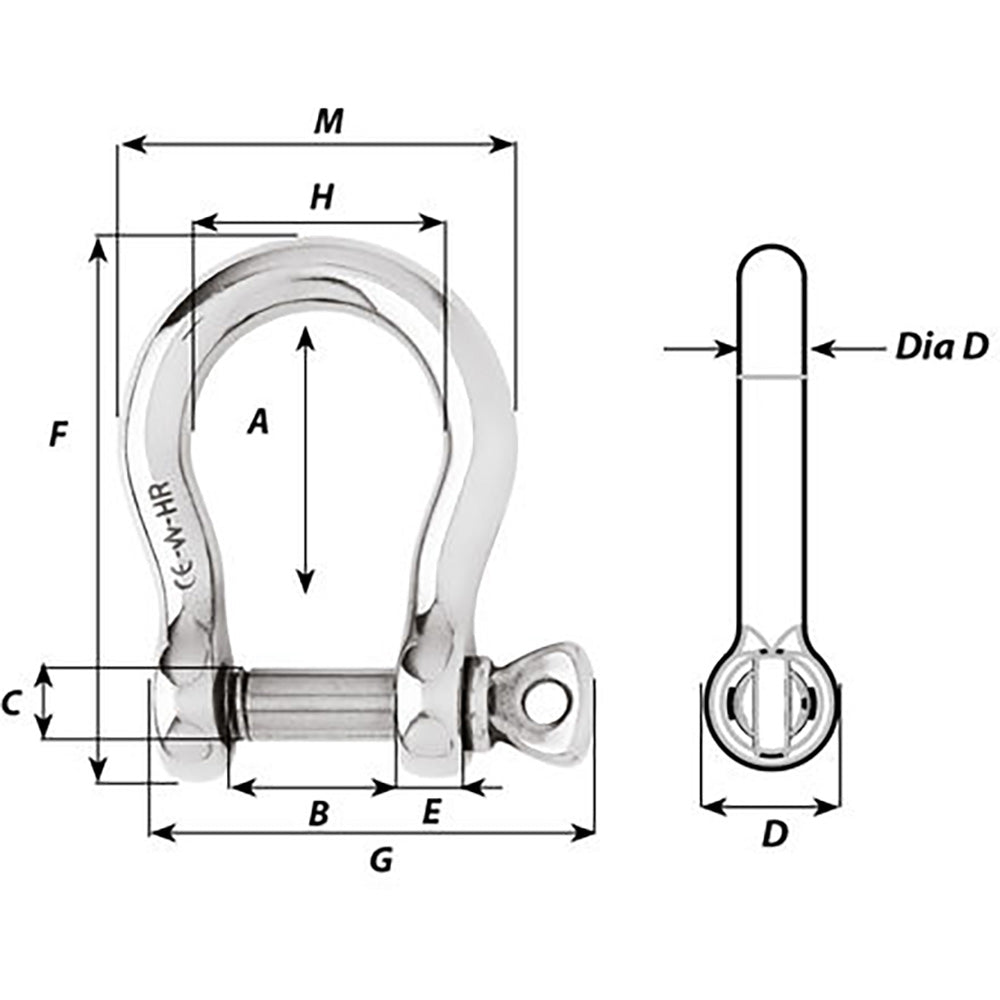

Product Dimensions
| Dimension | Size |
|---|---|
| A | 2 3/4" / 70 mm |
| B | 1 17/64" / 32 mm |
| C | 5/8" / 16 mm |
| D | 1 17/64" / 32 mm |
| D Diameter | 5/8" / 16 mm |
| E | 19/32" / 15 mm |
| M | 3 17/64" / 83 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications, ensuring safe handling of loads during marine operations.
- Working Load Limit (WLL): Intended for industrial use only, with a safety factor of five times the breaking load. Calculated as WLL = Breaking Load / 5.
- High Resistance (HR): Indicates the shackle's enhanced resistance properties compared to standard models.
*Sold as an individual unit.
