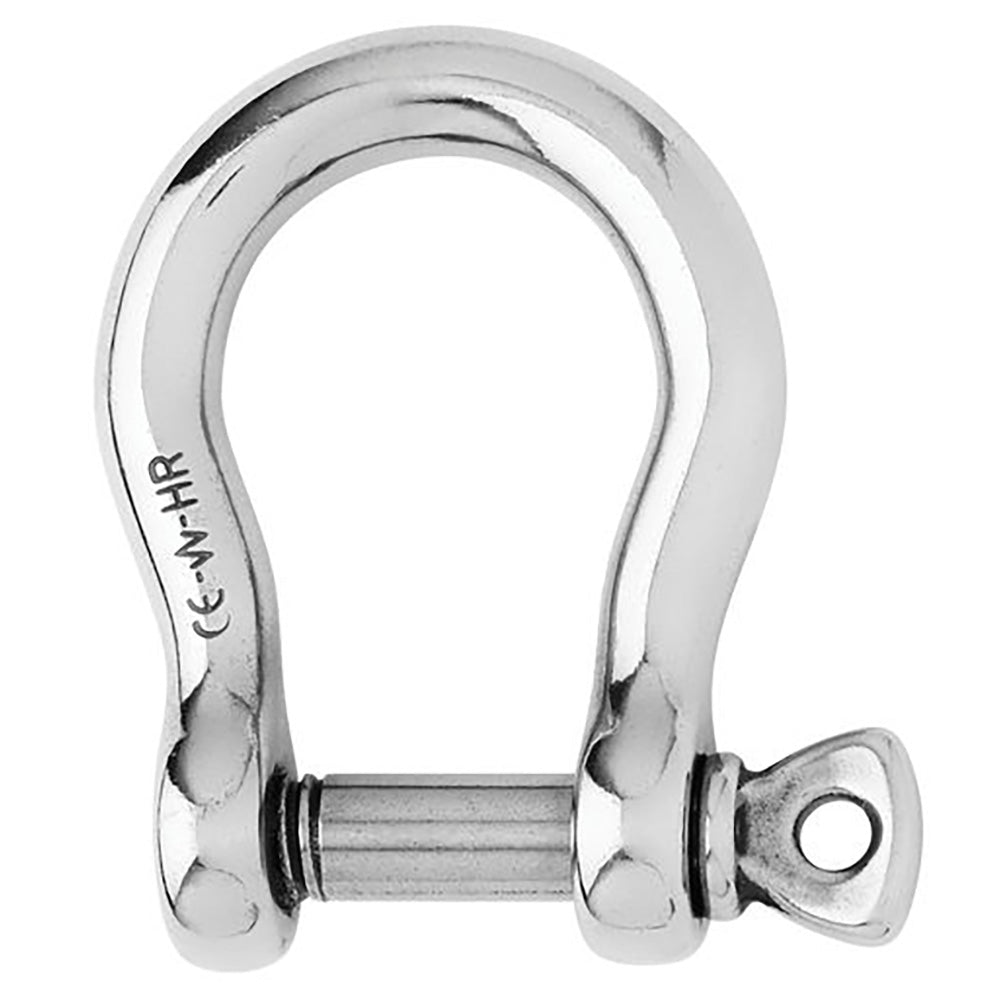

Wichard HR Bow Shackle - 12mm Pin Diameter
Wichard HR Bow Shackle - 12mm Pin Diameter is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HR Bow Shackle with a 12mm pin diameter is meticulously engineered for marine enthusiasts and professionals who demand exceptional strength and reliability in their boating applications. Crafted from high-resistance 17-4 PH stainless steel, this shackle delivers superior performance and durability, ensuring safety and efficiency on every voyage.
Features
- Forged from high-resistance (HR) 17-4 PH stainless steel, providing outstanding durability and corrosion resistance in marine environments
- Exceptional working and breaking load capacities designed to handle heavy-duty marine and industrial applications
- Up to 60% more resistant than standard 316L stainless steel shackles, ensuring a longer lifespan and enhanced safety
- Working Load Limit (WLL) specifically rated for industrial lifting applications, ensuring reliable performance under stress
- Certified with CE marking, adhering to stringent European safety and quality standards
Applications
- Ideal for high-load applications such as towing, lifting, and securing heavy marine equipment
- Perfect for scenarios where ample space is required to maneuver and attach multiple lines or cables
- Supports the attachment of several ropes or cables simultaneously, enhancing versatility in boating setups
- Note: Not recommended for mooring applications
Specifications
| Specification | Details |
|---|---|
| Material | High-Resistance 17-4 PH Stainless Steel Grade |
| Pin Diameter | 12mm |
| Working Load | 7,930 lbs / 3,600 kg |
| Working Load Limit (WLL) | 4,400 lbs / 2,000 kg |
| Breaking Load | 22,040 lbs / 10,000 kg |
| Weight | 0.494 lbs / 224 g |

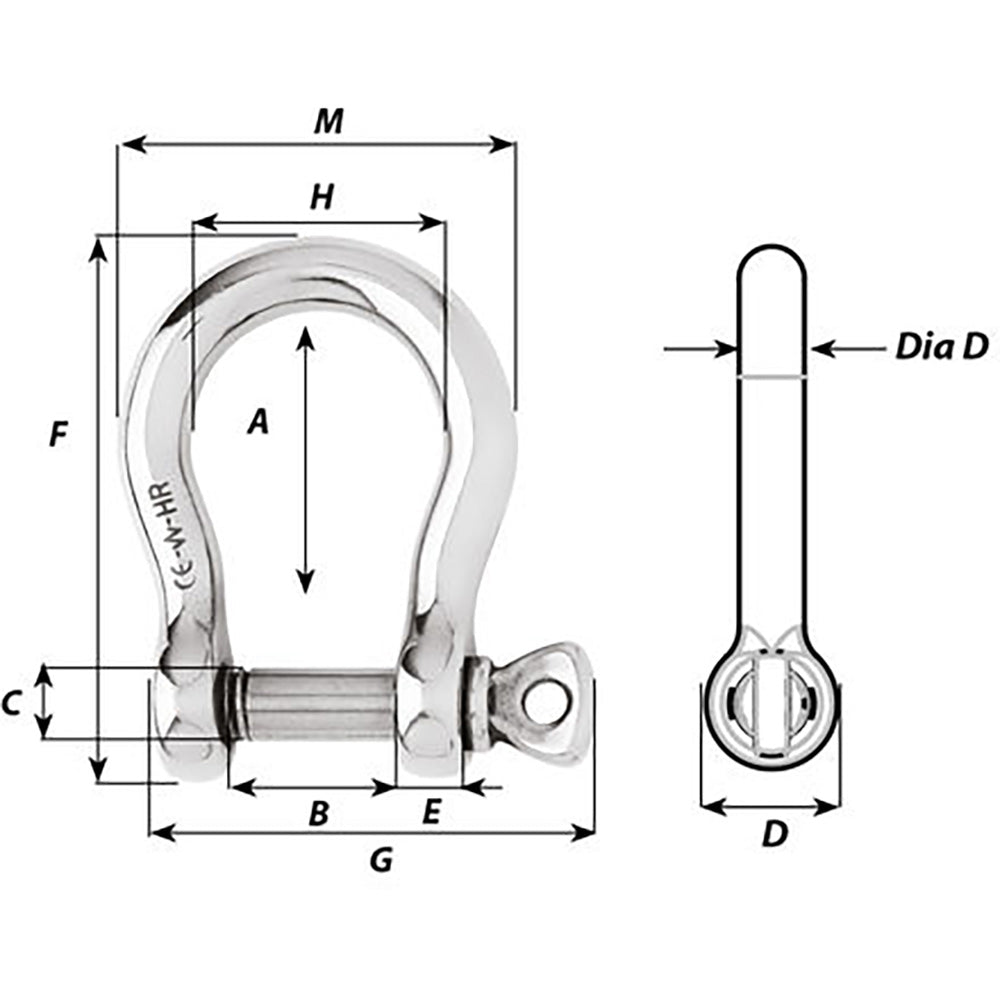

Dimensions
| Dimension | Size |
|---|---|
| A | 2 11/64" / 55 mm |
| B | 15/16" / 24 mm |
| C | 15/32" / 12 mm |
| D | 15/16" / 24 mm |
| D Diameter | 35/64" / 14 mm |
| E | 25/64" / 10 mm |
| M | 2 31/64" / 63 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications where high strength is essential
- Working Load Limit (WLL): Designed exclusively for industrial lifting applications. The safety factor is five times the breaking load. WLL = Breaking load / 5
- High Resistance (HR): Enhanced durability and strength for long-term use in marine environments
