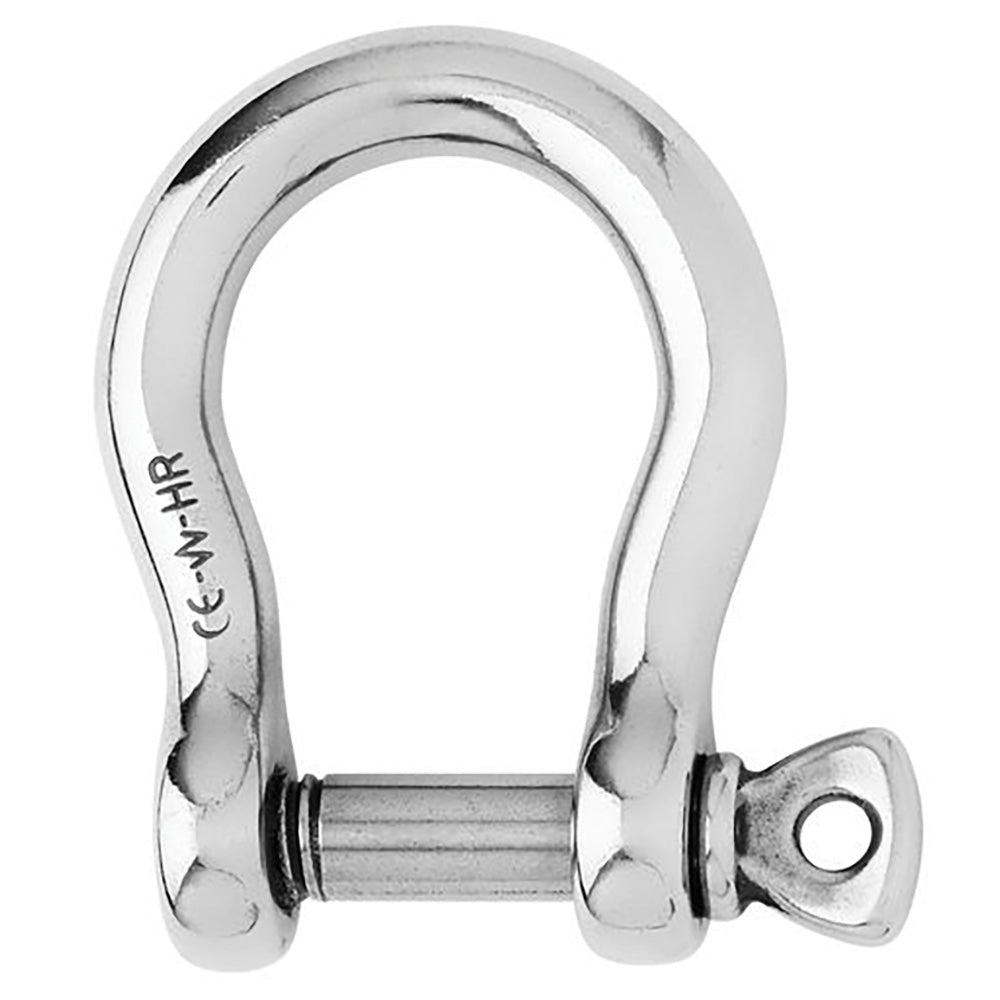

Wichard HR Bow Shackle - 10mm Pin Diameter
Wichard HR Bow Shackle - 10mm Pin Diameter is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The HR Bow Shackle with a 10mm pin diameter is engineered for demanding marine and industrial applications. Crafted from high-resistance stainless steel, this bow shackle ensures exceptional durability and reliability, making it an essential component for boating enthusiasts and professionals alike.
Features
- Premium Construction: Forged from HR stainless steel grade (17-4 PH), providing superior strength and longevity.
- High Load Capacity: Outstanding working and breaking load ratings ensure safe and effective performance under heavy stress.
- Enhanced Durability: HR shackles are up to 60% more resistant than those made from 316L stainless steel, offering extended service life.
- Industrial Grade: Designed specifically for industrial applications such as lifting and rigging tasks.
- Certified Quality: CE marked, guaranteeing adherence to European safety and performance standards.
Applications
- High-Load Requirements: Ideal for applications that demand handling of substantial weights and forces.
- Spacious Connections: Suitable for scenarios where ample space is necessary for maneuvering lines or cables.
- Multi-Line Attachment: Allows the connection of multiple lines or cables simultaneously, enhancing versatility.
- Not for Mooring: Specifically designed for lifting and industrial tasks, not recommended for mooring applications.
Specifications
| Property | Measurement |
|---|---|
| Material | HR 17-4 PH Stainless Steel Grade |
| Working Load | 5,820 lbs / 2,640 kg |
| Working Load Limit (WLL) | 2,640 lbs / 1,200 kg |
| Breaking Load | 13,220 lbs / 6,000 kg |
| Weight | 0.3 lbs / 136 g |

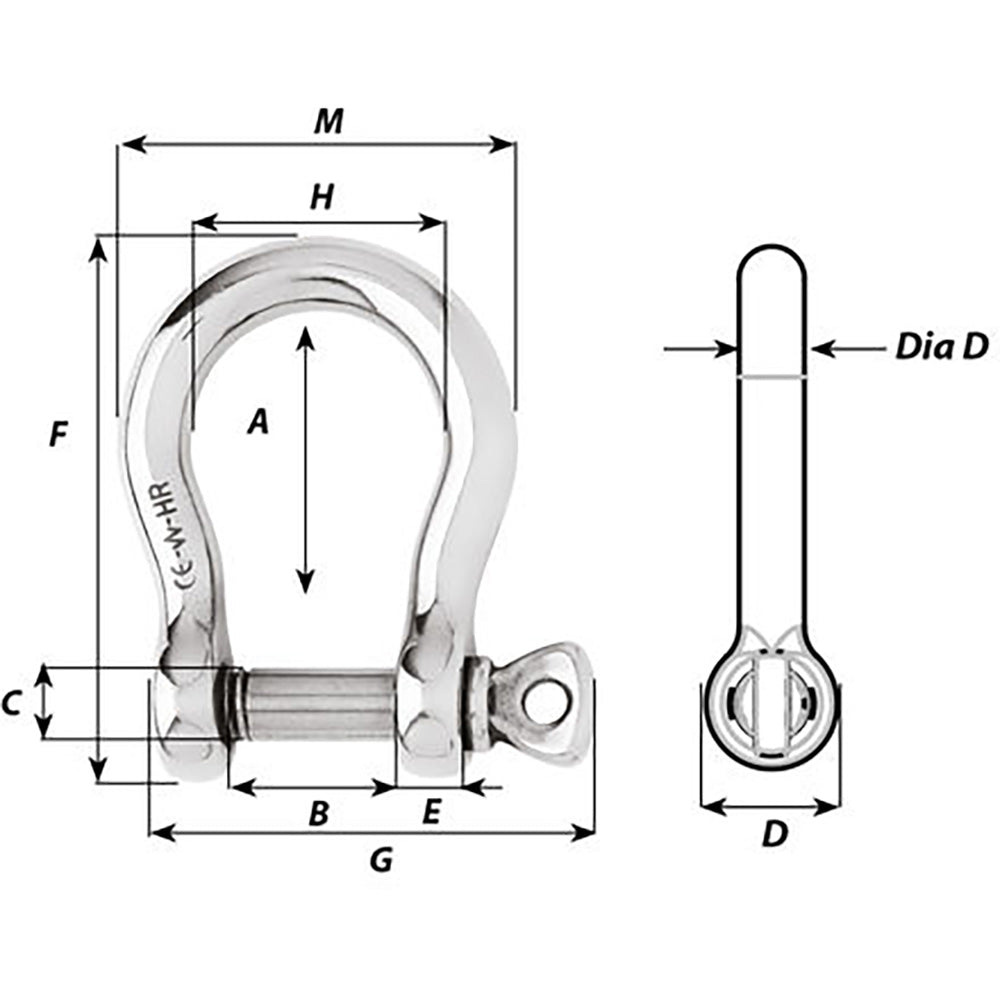

Dimensions
| Dimension | Measurement |
|---|---|
| A | 1 27/32" / 47 mm |
| B | 55/64" / 22 mm |
| C | 25/64" / 10 mm |
| D | 25/32" / 20 mm |
| D Diameter | 15/32" / 12 mm |
| E | 23/64" / 9 mm |
| M | 2 3/64" / 52 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications requiring robust load handling.
- Working Load Limit (WLL): Intended exclusively for industrial applications, with a safety factor of 5 times the breaking load (WLL = Breaking Load / 5).
- High Resistance (HR): Ensures enhanced performance and longevity in demanding environments.
*Sold individually
