Wichard Double Folding Pad Eye - 6mm Diameter - 15/64"
Wichard Double Folding Pad Eye - 6mm Diameter - 15/64" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

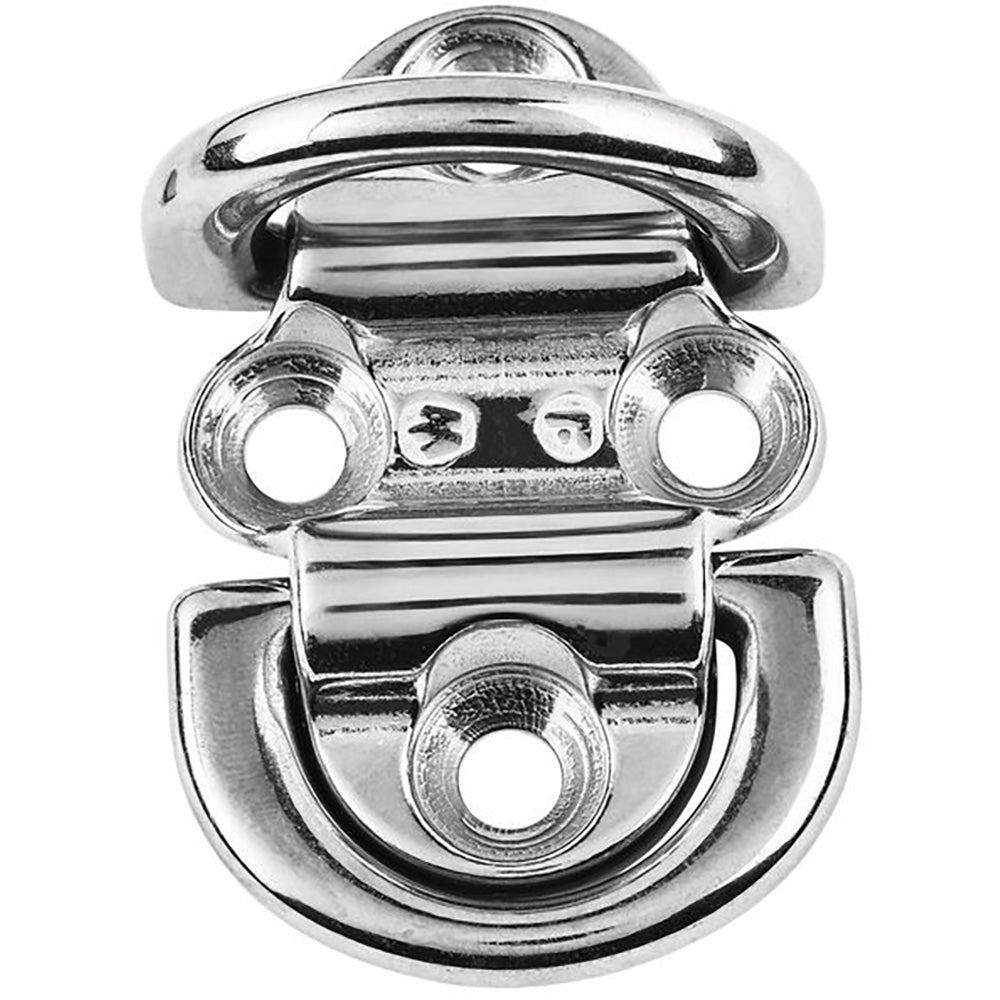

The Double Folding Pad Eye is a robust and versatile hardware solution designed specifically for modern marine and boating applications. Crafted from high-grade 316L stainless steel, this pad eye ensures exceptional strength and durability, making it ideal for securing stays, blocks, and jib tack points on your vessel. Its innovative folding design not only enhances safety by minimizing injury risks but also complements the sleek aesthetics of contemporary boats.
Features
- Fully Drop Forged Construction: Engineered for superior strength, offering outstanding working and breaking loads from any angle.
- Versatile Attachment Points: Perfect for securing stays, blocks, and jib tack points, providing multiple options for boat rigging.
- Multiple Stay Attachments: Capable of supporting several stays simultaneously, enhancing the stability of your vessel.
- Modern Aesthetic Design: Sleek and optimized to blend seamlessly with the look of modern boats.
- Foldable Mechanism: Folds down when not in use to reduce the risk of accidental injuries.
- Silicone Padding: Equipped with silicone pads to eliminate noise and reduce unpleasant vibrations during operation.
Applications
- General Fastening: Ideal for any fastening or attachment needs on your boat.
- Shroud Attachment: Enables the attachment of multiple shrouds, enhancing the overall rigging system.
Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Working Load | 3170 lbs / 1440 kg |
| Breaking Load | 5510 lbs / 2500 kg |
| Weight | 0.278 lbs / 126 g |

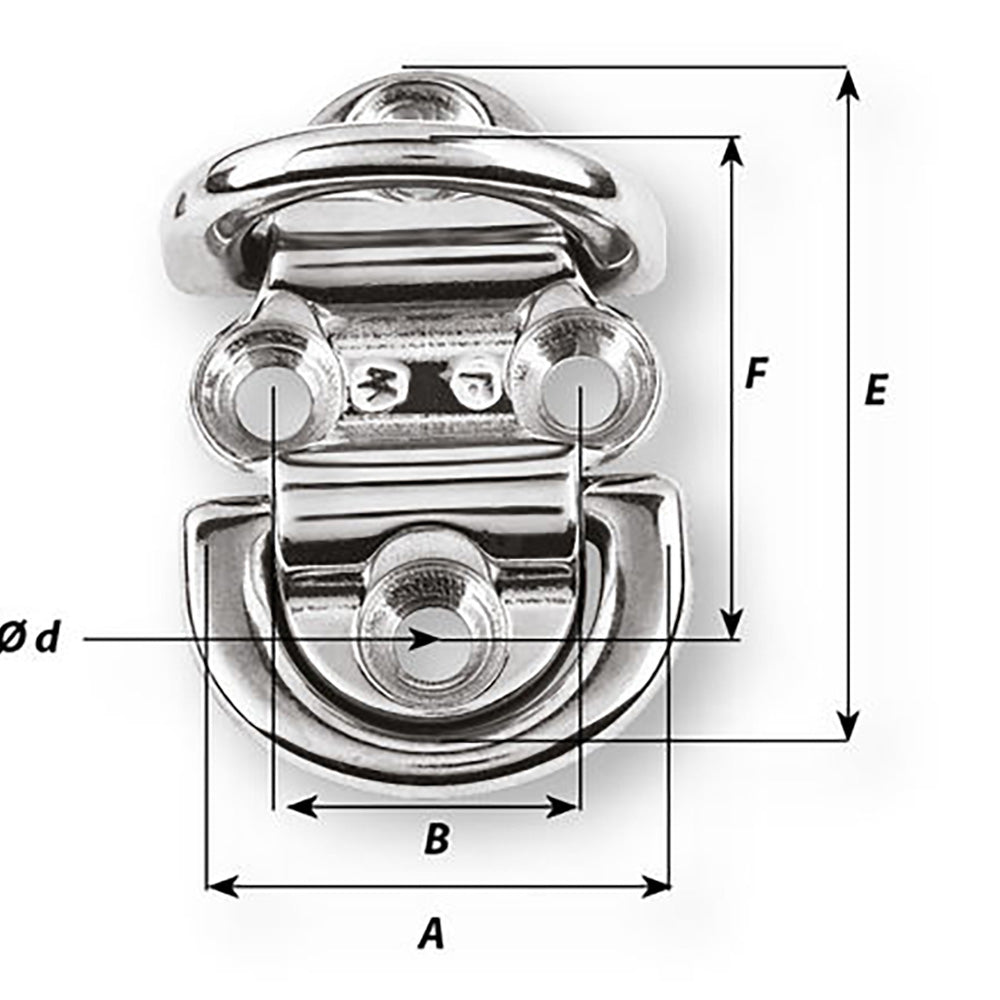

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 1 49/64" | 45 mm |
| B | 1 1/16" | 27 mm |
| C | 35/64" | 14 mm |
| D Diameter | 15/64" | 6 mm |
| d Diameter | 1/4" | 6.4 mm |
| E | 2 61/64" | 75 mm |
| F | 2 21/64" | 59 mm |
Load Information
- Working Load (WL): Suitable for nautical applications, ensuring reliable performance under regular use.
-
Working Load Limit (WLL): Intended for industrial applications only. Calculated by dividing the breaking load by a safety factor of 5.
WLL = Breaking Load / 5
Note: *Sold individually*
