Wichard Double Folding Pad Eye - 10mm Diameter - 25/64"
Wichard Double Folding Pad Eye - 10mm Diameter - 25/64" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Double Folding Pad Eye is a premium marine hardware solution engineered for reliable and versatile attachment points on modern boats. Crafted from high-grade 316L stainless steel, this pad eye offers exceptional strength and durability, ensuring secure connections for a variety of boating applications while maintaining aesthetic appeal.
Features
- Superior Strength: Fully drop-forged construction provides outstanding working and breaking loads, maintaining performance regardless of the load angle.
- Versatile Attachment: Ideal for securing stays, blocks, and jib tack points, offering flexibility in rigging configurations.
- Multiple Attachment Points: Capable of accommodating several stays simultaneously, enhancing setup versatility.
- Modern Design: Sleek and optimized aesthetics complement the look of contemporary boats.
- Safety-Oriented: Features a fold-down design to minimize injury risks when not in use.
- Noise Reduction: Equipped with a silicone pad that eliminates noise and unpleasant vibrations, ensuring a quieter sailing experience.
Applications
- Suitable for any fastening or attachment needs on boats and marine vessels.
- Enables the attachment of multiple shrouds, enhancing rigging strength and stability.
Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Working Load | 10,050 lbs / 4,560 kg |
| Breaking Load | 19,840 lbs / 9,000 kg |
| Weight | 1.089 lbs / 494 g |

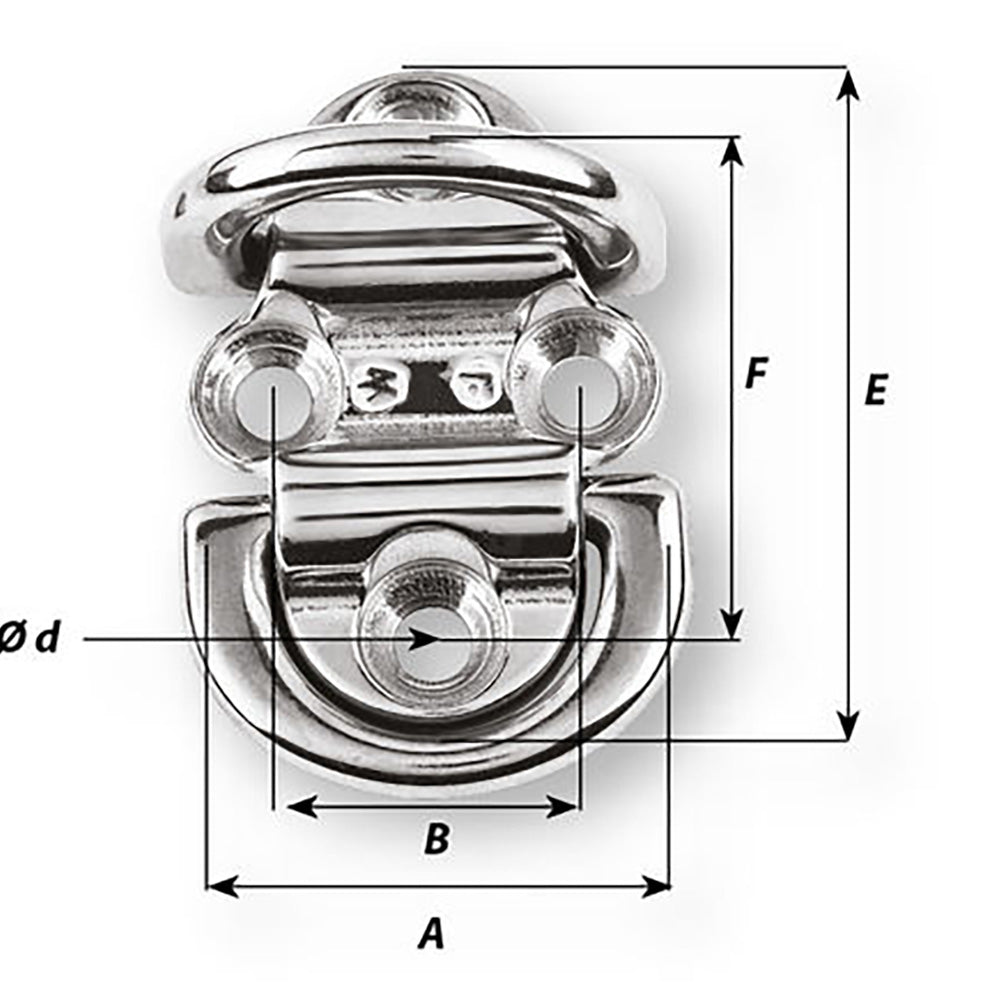

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 2 61/64" | 75 mm |
| B | 1 49/64" | 45 mm |
| C | 29/32" | 23 mm |
| d Diameter | 13/32" | 10.5 mm |
| D Diameter | 25/64" | 10 mm |
| E | 4 3/32" | 104 mm |
| F | 3 5/64" | 78 mm |
Safety and Loading Information
- Working Load (WL): Designed for nautical applications, ensuring safe operation under typical marine conditions.
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is set at 5 times the breaking load, calculated as WLL = Breaking Load / 5.
*Sold Individually
