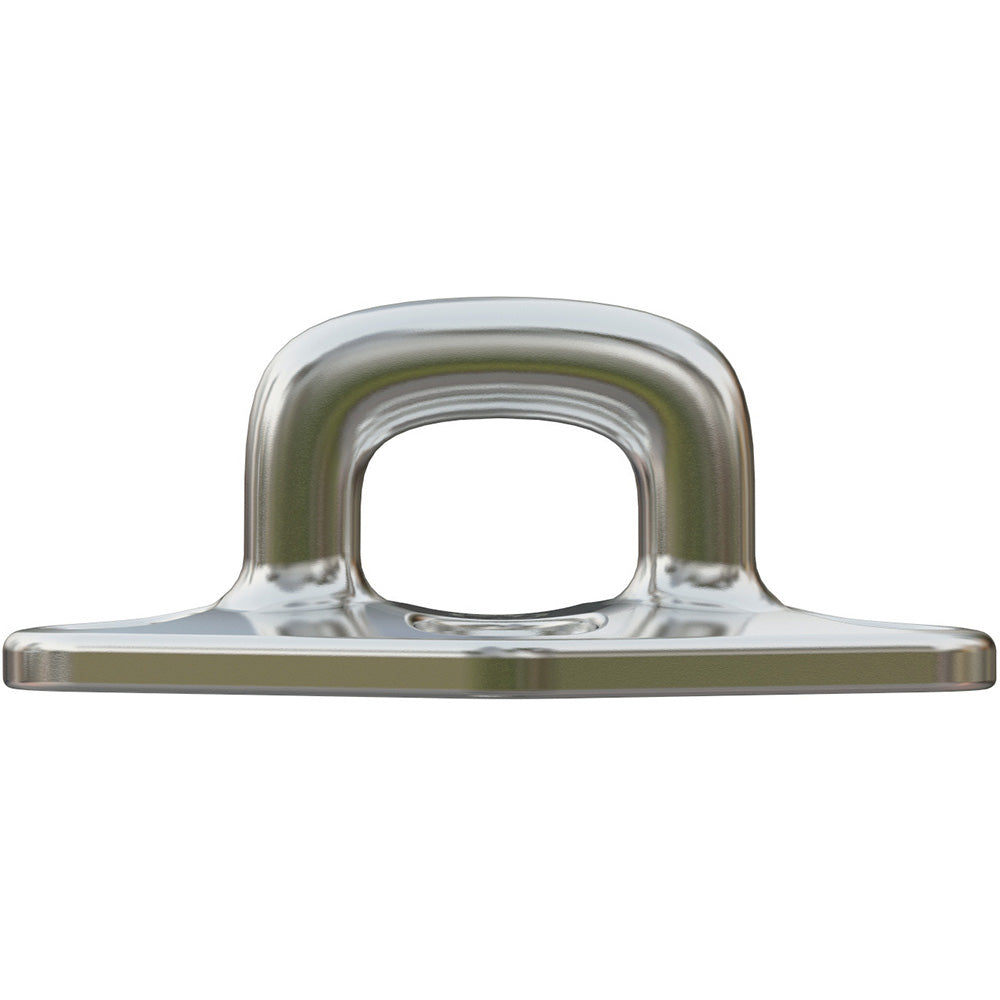

Wichard Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw
Wichard Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Diamond Pad Eye Square, with a length of 98mm (3-55/64"), is engineered for superior strength and durability in marine and boating environments. Crafted from high-grade duplex stainless steel, it offers an optimal balance of mechanical resistance and corrosion resistance, ensuring reliable performance even in the harshest conditions. Designed to accommodate M8 screws, this pad eye is perfect for a variety of fastening applications on your vessel.
Features
- Exceptional mechanical and corrosion resistance due to duplex stainless steel construction
- Optimized dimensions for versatile marine applications
- Compatible with M8 screws for secure fastening
Applications
- Mast foot blocks for secure mast attachment
- Reefing blocks to aid in sail handling
- Various other fastening needs on boats and marine equipment
Specifications
| Material | Duplex Stainless Steel Grade |
|---|---|
| Working Load (WL) | 9,479.8 lb (4,300 kg) |
| Breaking Load (BL) | 25,573.6 lb (11,600 kg) |
| Weight | 0.562 lb (255 g) |
Working Load Details
| Angle | Working Load (lb) | Working Load (kg) |
|---|---|---|
| 90 degrees | 9,479.8 | 4,300 |
| 45 degrees | 9,479.8 | 4,300 |
| 0 degrees | 9,038.9 | 4,100 |
Breaking Load Details
| Angle | Breaking Load (lb) | Breaking Load (kg) |
|---|---|---|
| 90 degrees | 25,573.6 | 11,600 |
| 45 degrees | 25,573.6 | 11,600 |
| 0 degrees | 24,250.8 | 11,000 |

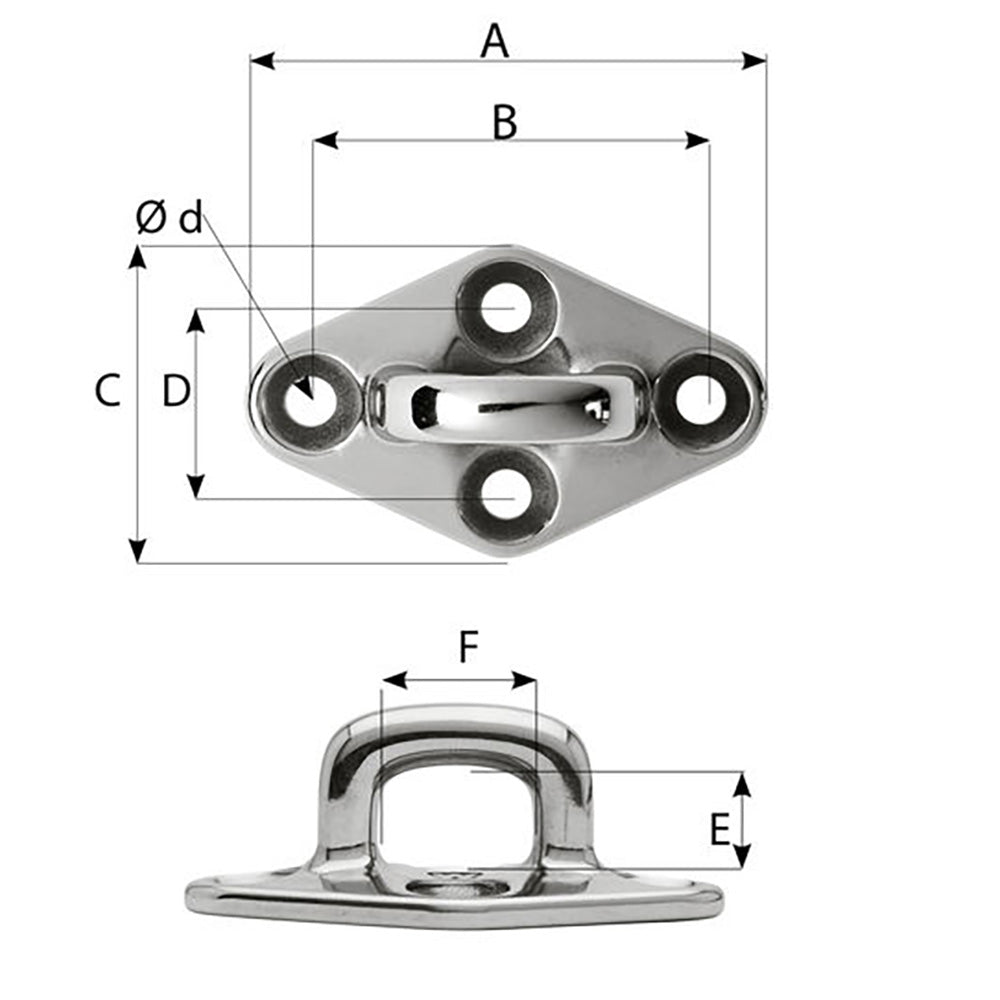

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 3 55/64" | 98 mm |
| B | 2 7/8" | 73 mm |
| C | 2 21/64" | 59 mm |
| D | 1 3/8" | 35 mm |
| E | 49/64" | 19.5 mm |
| F | 1 1/16" | 27 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications, ensuring safe and reliable use on your vessel.
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is five times the breaking load (WLL = Breaking Load / 5).
Sold individually.
