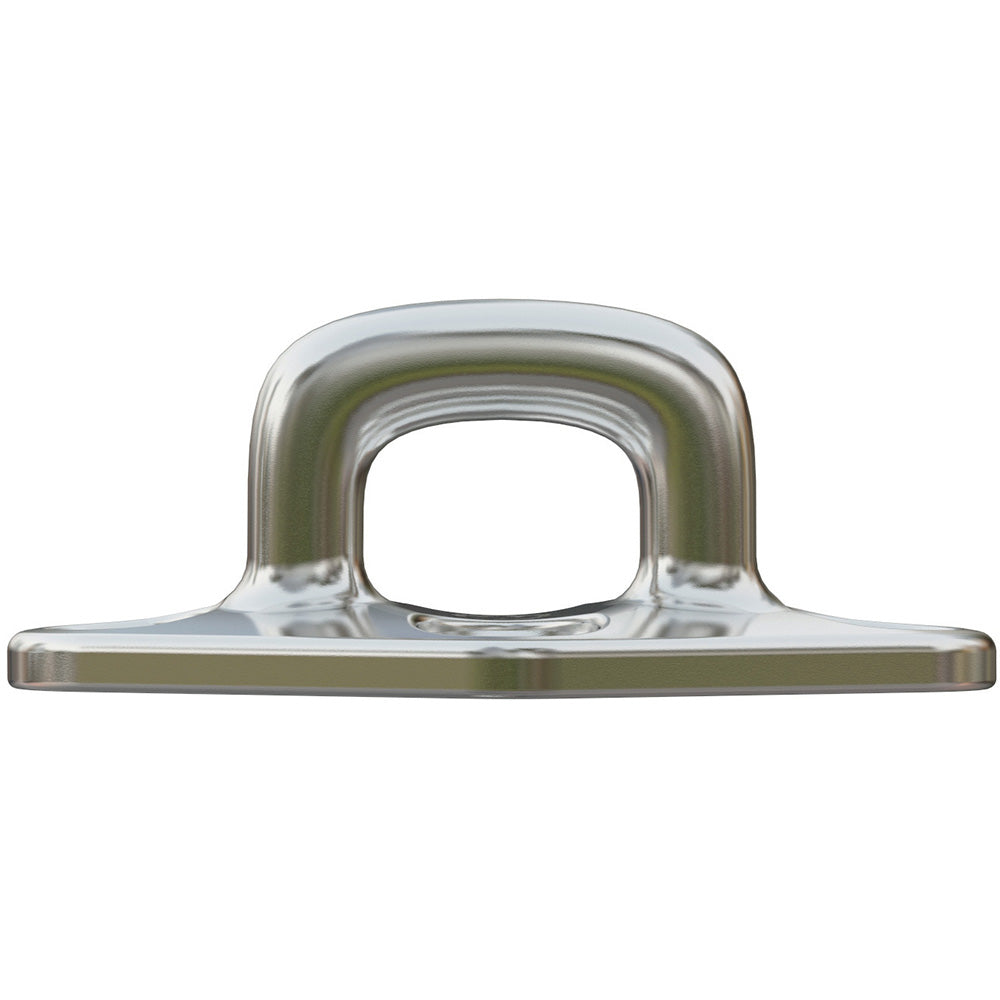

Wichard Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw
Wichard Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Secure your vessel with our premium Diamond Pad Eye, meticulously engineered for marine and boating applications. Crafted from high-grade duplex stainless steel, this square pad eye offers exceptional durability and resistance to corrosion, ensuring reliable performance even in the harshest maritime environments. Its optimized dimensions make it the perfect fit for M5 screws, providing a steadfast anchoring solution for various marine fastening needs.
Features
- Optimal balance between mechanical strength and corrosion resistance
- Precision-engineered dimensions for seamless installation
- Compatible with M5 screws for versatile fastening options
Applications
- Mast foot blocks for secure mast placement
- Reefing blocks to ensure efficient sail management
- Various fastening needs across marine and boating structures
Specifications
| Material | Duplex Stainless Steel Grade |
|---|---|
| Working Load | 2645.5 lb (1200 kg) |
| Breaking Load | 7054.7 lb (3200 kg) |
| Weight | 0.13 lb (59 g) |
Load Ratings
| Load Type | 90 Degrees | 45 Degrees | 0 Degrees |
|---|---|---|---|
| Working Load (WL) | 2645.5 lb (1200 kg) | 2425 lb (1100 kg) | 2425 lb (1100 kg) |
| Breaking Load (BL) | 7054.7 lb (3200 kg) | 6613.8 lb (3000 kg) | 6613.8 lb (3000 kg) |

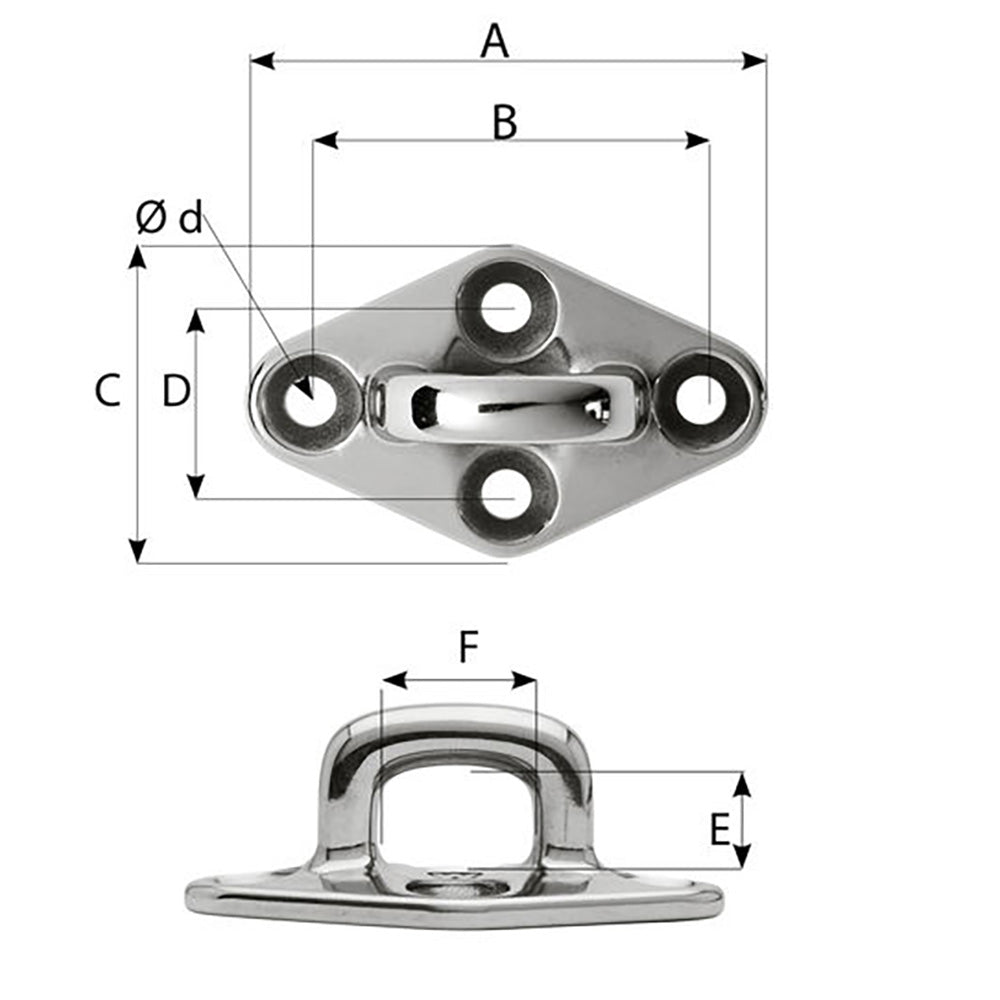

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 2 23/64" | 60 mm |
| B | 1 13/16" | 46 mm |
| C | 1 1/2" | 38 mm |
| D | 15/16" | 24 mm |
| E | 15/32" | 12 mm |
| F | 3/4" | 19 mm |
Additional Information
- Working Load (WL): Suitable for nautical applications, ensuring safe and reliable usage on your vessel.
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is five times the breaking load. WLL = Breaking Load / 5.
Sold individually
Download Quick Guide (PDF)
