Wichard Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw
Wichard Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

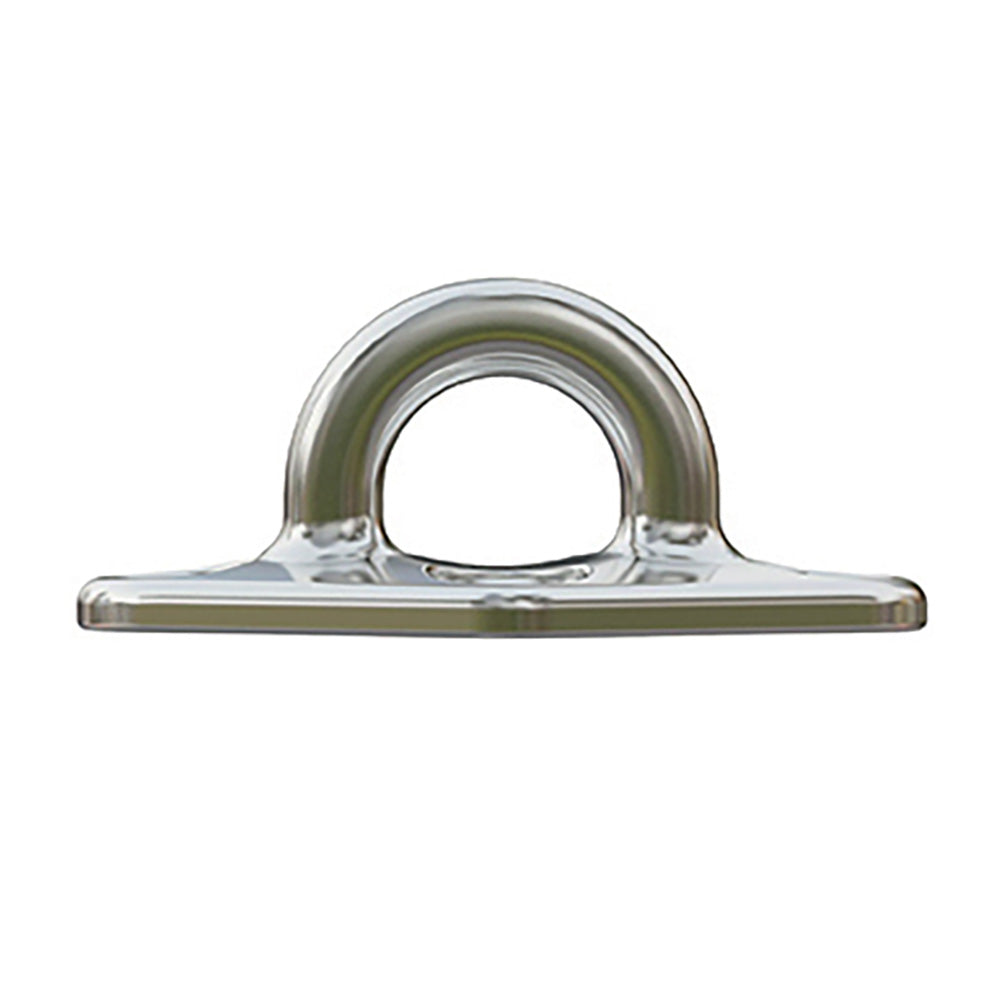

The Diamond Pad Eye is a premium-grade stainless steel pad eye designed specifically for marine and boating applications. With its robust construction and optimized dimensions, it provides reliable attachment points for various rigging needs, ensuring safety and durability on the water.
Features- Exceptional mechanical strength combined with superior corrosion resistance
- Precisely optimized dimensions for secure fittings
- Compatible with M8 screws for versatile installation
- Mast foot blocks for stable mast installation
- Reefing blocks to manage sails efficiently
- Various fastening solutions for deck gear and hardware
| Property | Details |
|---|---|
| Material | Duplex Stainless Steel Grade |
| Working Load | 9,259.4 lb / 4,200 kg |
| Breaking Load | 24,691.7 lb / 11,200 kg |
| Weight | 0.551 lb / 250 g |
| Working Load 1 (90°) | 9,259.4 lb / 4,200 kg |
| Working Load 2 (45°) | 9,259.4 lb / 4,200 kg |
| Working Load 3 (0°) | 9,038.9 lb / 4,100 kg |
| Breaking Load 1 (90°) | 24,691.7 lb / 11,200 kg |
| Breaking Load 2 (45°) | 24,691.7 lb / 11,200 kg |
| Breaking Load 3 (0°) | 24,250.8 lb / 11,000 kg |

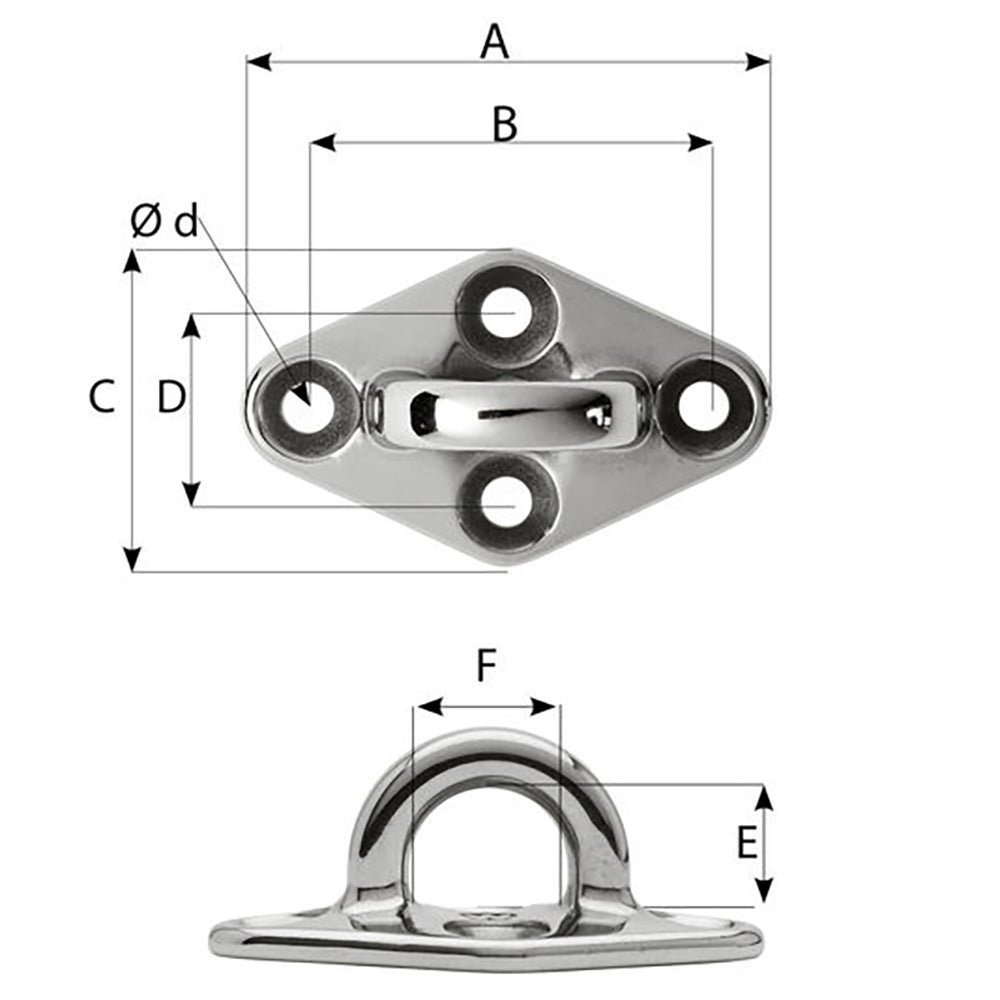

| Dimension | Inches | Millimeters |
|---|---|---|
| A | 3 55/64" | 98 mm |
| B | 2 7/8" | 73 mm |
| C | 2 21/64" | 59 mm |
| D | 1 3/8" | 35 mm |
| E | 55/64" | 22 mm |
| F | 1 1/16" | 27 mm |
- Working Load (WL): Suitable for nautical applications, ensuring safe and reliable performance
- Working Load Limit (WLL): Designed for industrial applications with a safety factor of 5 times the breaking load. Calculated as WLL = Breaking Load / 5
Sold individually
Download the Quick Guide (PDF)
