Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw
Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

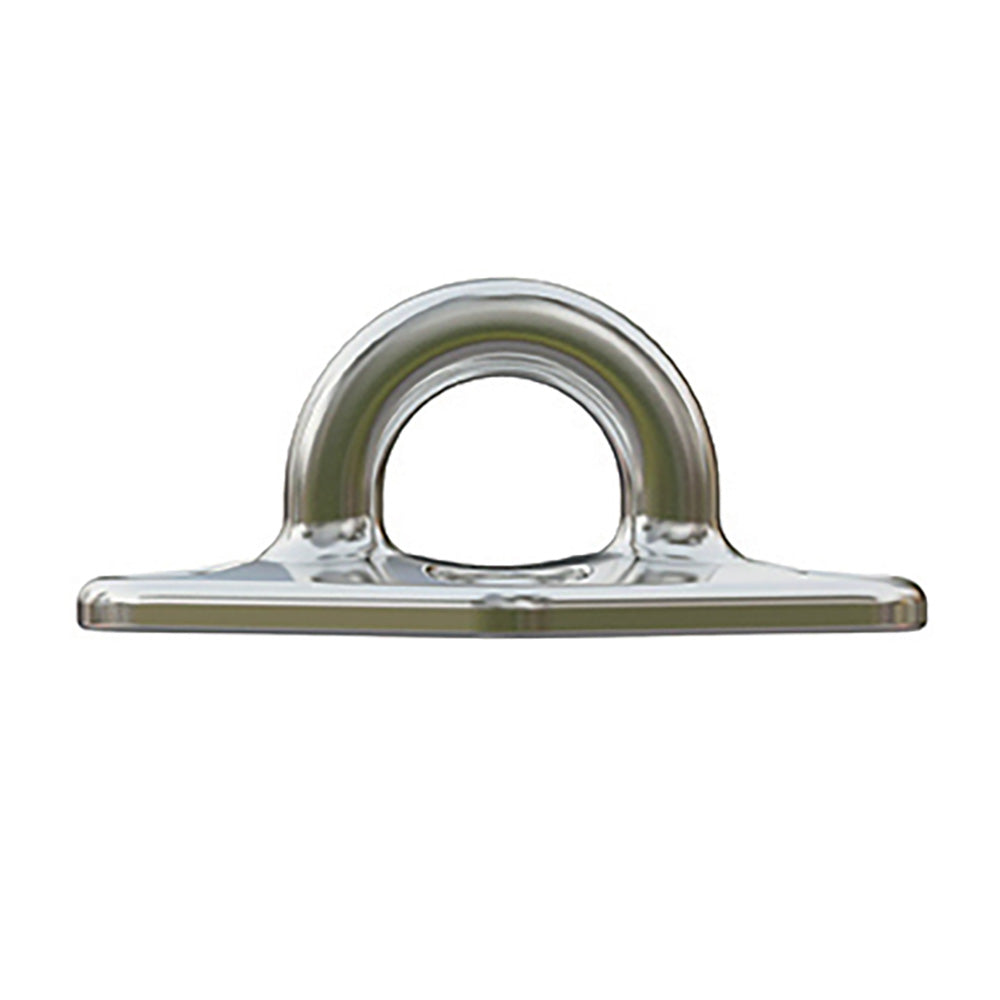

The Diamond Pad Eye Round is an essential hardware component for marine and boating applications. Crafted from high-grade duplex stainless steel, this pad eye offers exceptional strength and resistance to corrosion, ensuring reliable performance in harsh marine environments. With optimized dimensions for M6 screws, it is perfect for securing various fittings and attachments on your vessel.
Features
- Excellent balance of mechanical strength and corrosion resistance
- Optimized dimensions for seamless installation
- Designed for use with M6 screws
Applications
- Mast foot blocks
- Reefing blocks
- Various fastening needs on boats and yachts
- Deck fittings and rigging
Specifications
| Material | Duplex Stainless Steel Grade |
|---|---|
| Working Load | 6393.4 lb (2900 kg) |
| Breaking Load | 17196 lb (7800 kg) |
| Weight | 0.315 lb (143 g) |
| Working Load 1 (90°) | 6393.4 lb (2900 kg) |
| Working Load 2 (45°) | 5732 lb (2600 kg) |
| Working Load 3 (0°) | 5291 lb (2400 kg) |
| Breaking Load 1 (90°) | 17196 lb (7800 kg) |
| Breaking Load 2 (45°) | 15211.9 lb (6900 kg) |
| Breaking Load 3 (0°) | 13889 lb (6300 kg) |

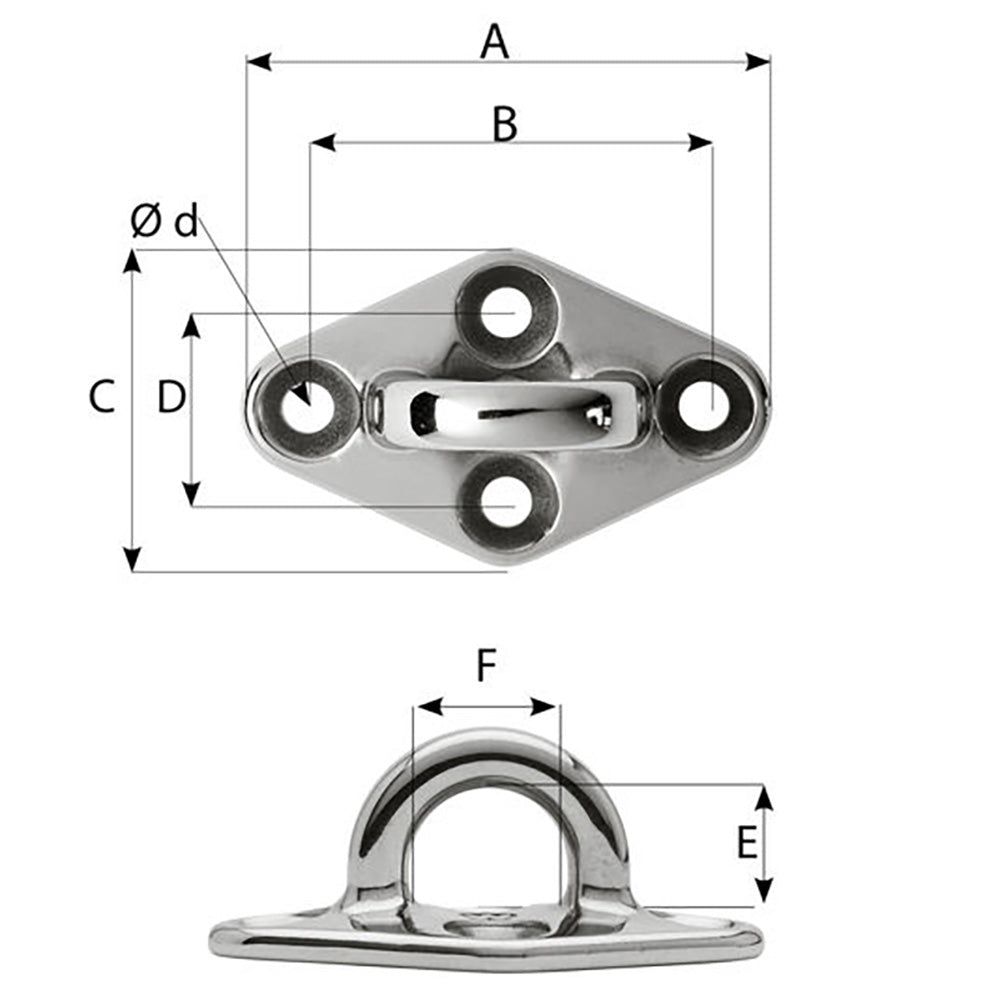

Dimensions
| Dimension | Size |
|---|---|
| A | 3 7/64" / 79 mm |
| B | 2 23/64" / 60 mm |
| C | 1 31/32" / 50 mm |
| D | 1 17/64" / 32 mm |
| E | 47/64" / 18.5 mm |
| F | 55/64" / 22 mm |
Notes
- Working Load (WL): Suitable for nautical applications
- Working Load Limit (WLL): Intended for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an individual item
