Wichard Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw
Wichard Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

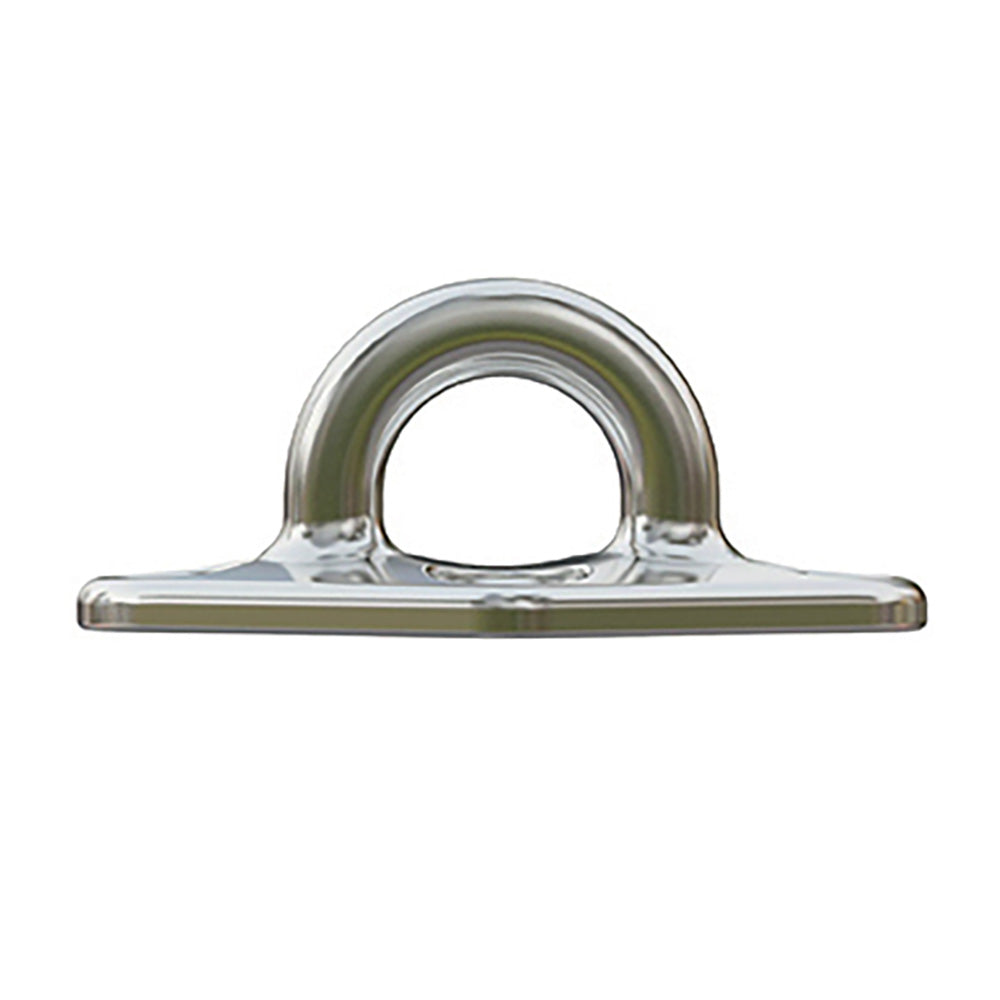

The Diamond Pad Eye Round is a durable and dependable hardware component designed specifically for marine and boating applications. Made from high-quality duplex stainless steel, this pad eye offers exceptional mechanical strength and corrosion resistance, ensuring longevity and reliable performance in harsh marine environments.
Features
- Superior mechanical resistance combined with excellent corrosion resistance
- Optimized dimensions for versatile installation
- Compatible with M5 screws for secure fastening
Applications
- Mast foot blocks
- Reefing blocks
- Various fastening needs on boats and other marine equipment
Specifications
| Material | Duplex stainless steel grade |
|---|---|
| Working Load | 2,645.5 lb / 1,200 kg |
| Breaking Load | 7,054.7 lb / 3,200 kg |
| Weight | 0.13 lb / 59 g |
| Working Load at 90° | 2,645.5 lb / 1,200 kg |
| Working Load at 45° | 2,425 lb / 1,100 kg |
| Working Load at 0° | 2,425 lb / 1,100 kg |
| Breaking Load at 90° | 7,054.7 lb / 3,200 kg |
| Breaking Load at 45° | 6,613.8 lb / 3,000 kg |
| Breaking Load at 0° | 6,613.8 lb / 3,000 kg |

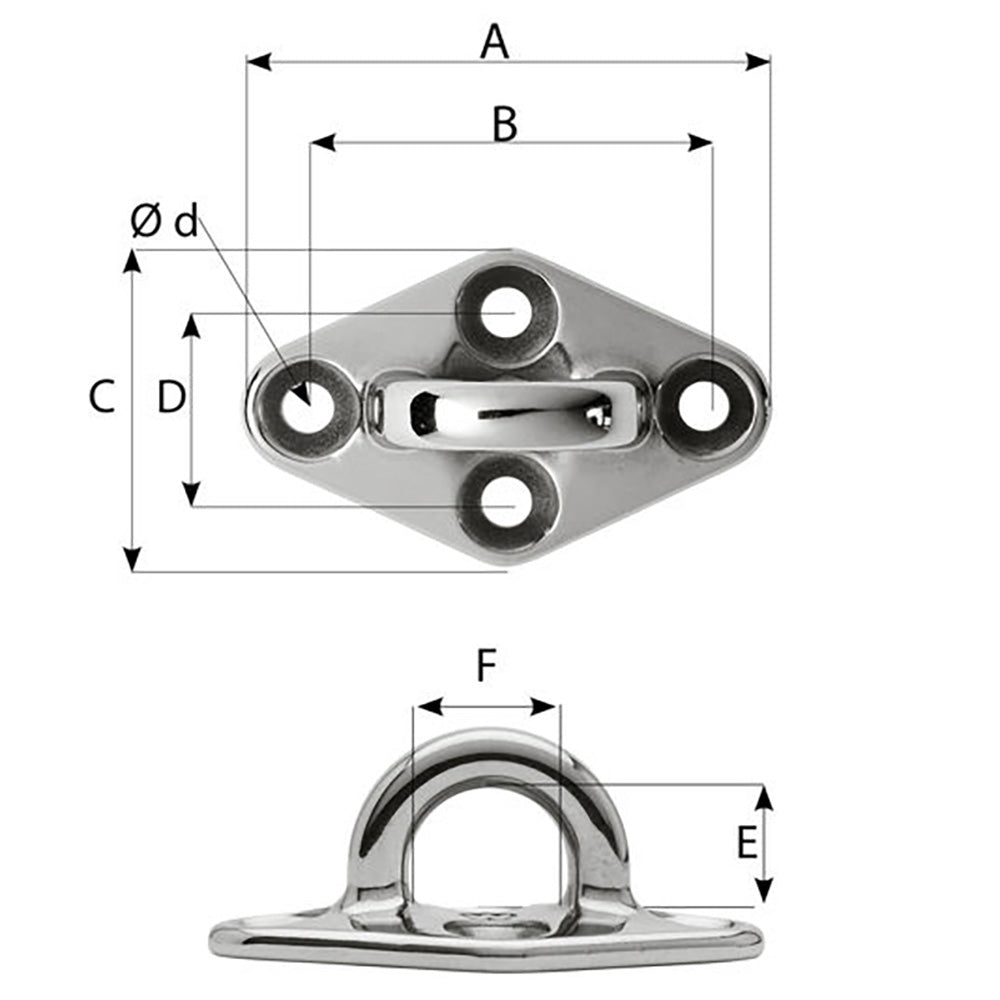

Dimensions
| Dimension A | 2 23/64" / 60 mm |
|---|---|
| Dimension B | 1 13/16" / 46 mm |
| Dimension C | 1 1/2" / 38 mm |
| Dimension D | 15/16" / 24 mm |
| Dimension E | 37/64" / 14.5 mm |
| Dimension F | 3/4" / 19 mm |
Load Ratings
- Working Load (WL): Suitable for nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Sold individually.
