Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16"
Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Enhance the safety and reliability of your marine rigging with our Captive Pin Long D Shackle. Crafted from premium grade 316L stainless steel, this shackle is designed to withstand the harshest marine environments, ensuring long-lasting performance for all your boating and marine applications.
Features
- Constructed from high-grade 316L stainless steel for exceptional durability and corrosion resistance
- Captive pin design ensures the pin remains attached to the shackle at all times, even when open
- Secure pin locking mechanism with multiple indentations to prevent accidental release
- Engineered to resist loosening from vibrations, maintaining a secure connection
- High working and breaking loads suitable for demanding marine applications
Applications
- Ideal for marine rigging where extended shackle length is required
- Perfect for attachment points on blocks, boat heads, and other critical mooring systems
- Suitable for securing sails, anchors, and other essential boating equipment
Specifications
| Material | 316 Stainless Steel Grade |
|---|---|
| Working Load | 2,200 lbs |
| WLL (Working Load Limit) | 1,580 lbs |
| Breaking Load | 7,930 lbs |
| Weight | 0.203 lbs |

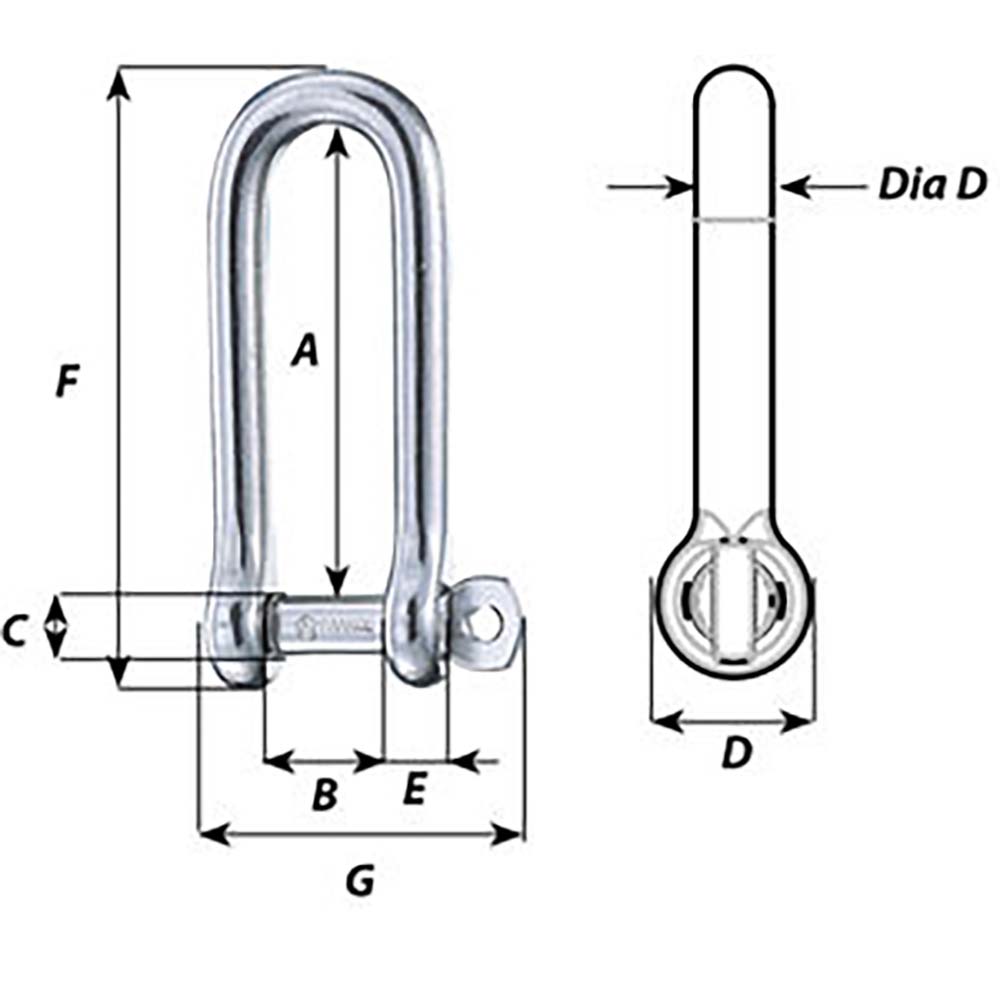

Dimensions
| Dimension | Measurement (inches) |
|---|---|
| A | 2-7/16" |
| B | 5/8" |
| C | 23/64" |
| D | 43/64" |
| D Diameter | 5/16" |
| E | 5/16" |
| F | 3-15/64" |
| G | 1-11/16" |
Why Choose Our Captive Pin Long D Shackle?
When it comes to marine hardware, reliability and strength are paramount. Our Captive Pin Long D Shackle offers unmatched performance for boaters, sailors, and marine professionals. The robust construction and secure pin mechanism provide peace of mind, knowing that your rigging and attachments are safe and secure, even in challenging sea conditions.
Installation Tips
- Ensure all connections are tight and secure before use
- Regularly inspect the shackle for signs of wear or corrosion
- Use appropriate lubrication to maintain smooth operation of the pin
- Always adhere to the specified working load limits to prevent overloading
Upgrade your marine setup with our high-performance Captive Pin Long D Shackle and experience the difference in quality and reliability that seasoned boaters trust.
