Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32"
Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

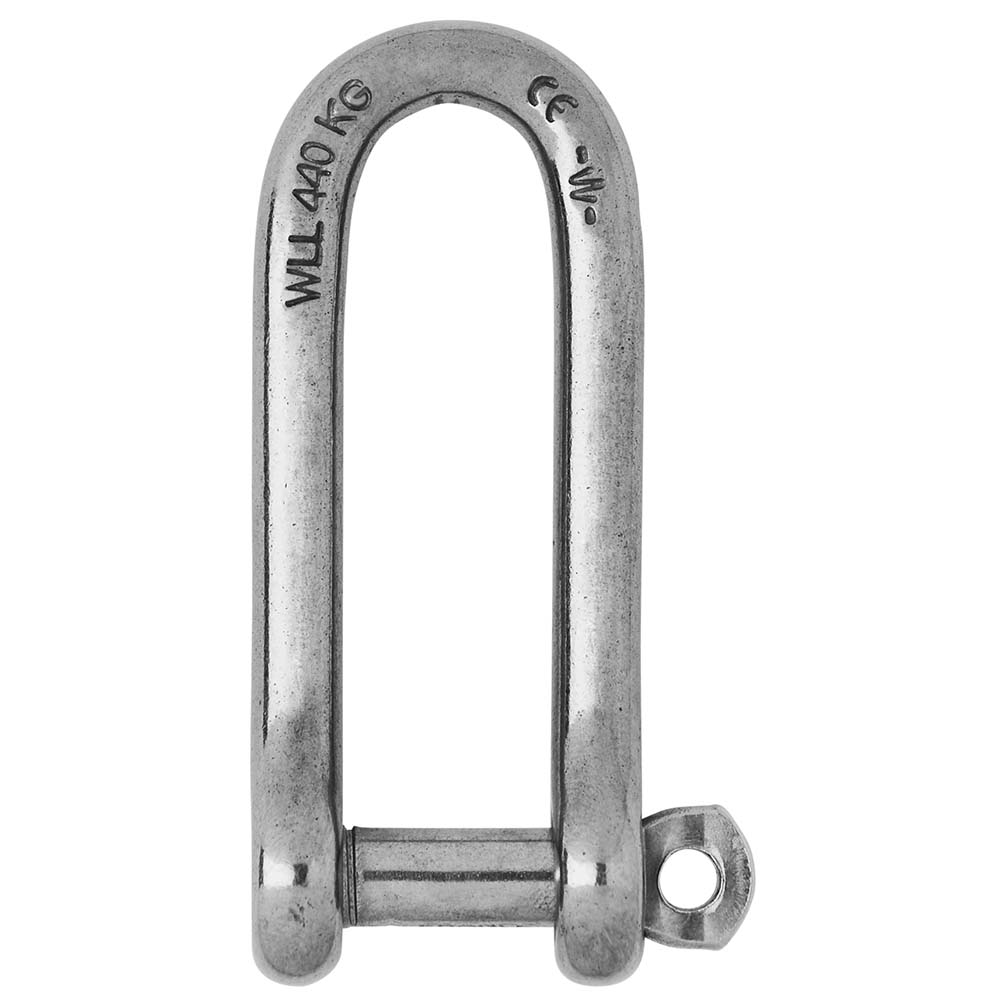

The Captive Pin Long D Shackle is an essential hardware component for marine and boating applications, designed to provide reliable performance and durability in demanding environments. Crafted from high-grade stainless steel, this shackle ensures secure connections and long-lasting use, making it ideal for a variety of marine tasks.
Features
- Premium Construction: Forged from grade 316L stainless steel, offering excellent corrosion resistance suitable for marine conditions.
- Captive Pin Design: The pin remains attached to the shackle at all times, even when open, preventing loss and ensuring safety.
- Secure Locking Mechanism: The pin locks into one of the indentations, providing a secure hold and reducing the risk of accidental release.
- Vibration Resistant: Engineered to prevent loosening caused by vibrations, ensuring consistent performance.
- High Load Capacity: Capable of handling outstanding working and breaking loads, making it suitable for heavy-duty applications.
Applications
Ideal for a wide range of marine and boating applications, the Captive Pin Long D Shackle is perfect for:
- Standard Shackle Uses: When a longer shackle is required for secure connections in various marine settings.
- Attachment Points: Connecting blocks, heads, and other essential components on boats and marine vessels.
- Rigging: Enhancing the strength and reliability of rigging systems on yachts and boats.
Specifications
| Material | 316 Stainless Steel Grade |
|---|---|
| Working Load (lb) | 3,350 |
| Safe Working Load (WLL) (lb) | 2,290 |
| Breaking Load (lb) | 11,460 |
| Weight (lb) | 0.388 |
Dimensions

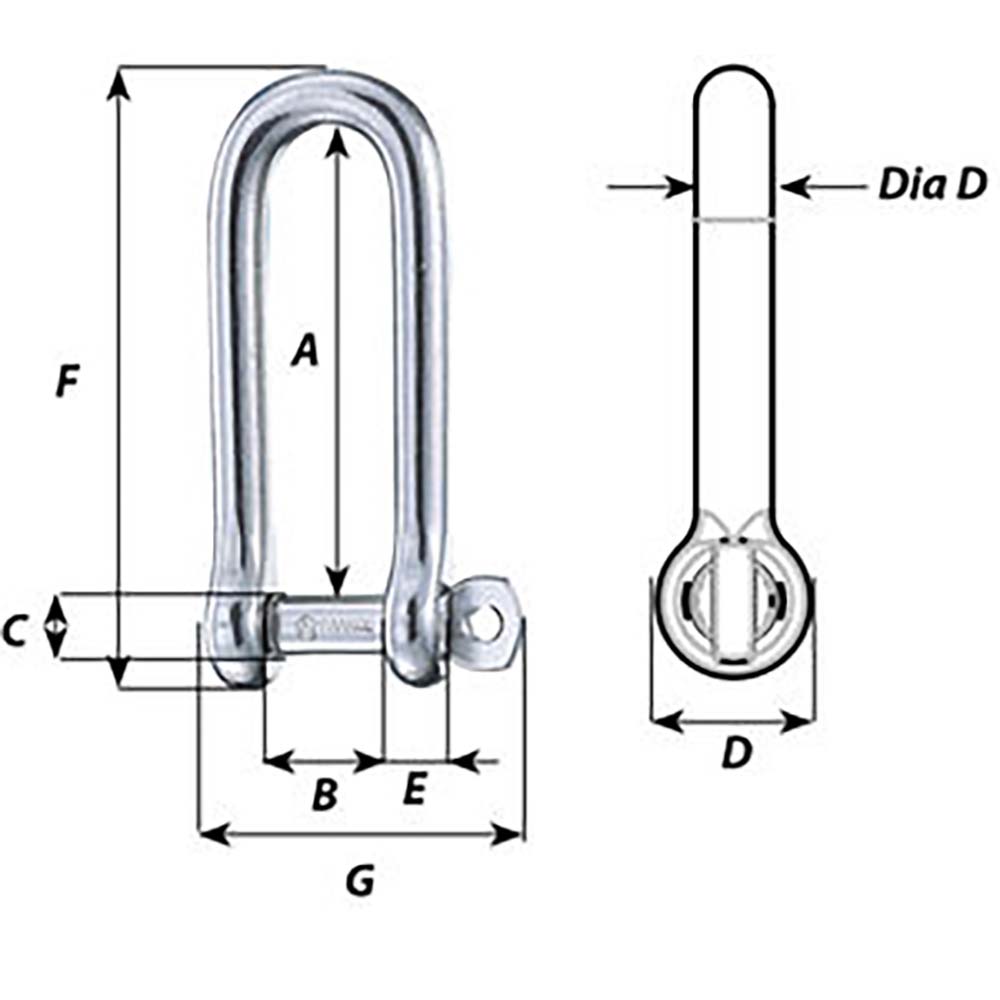

For detailed measurements, please refer to the second image in the product gallery.
| Dimension | Size (inch) |
|---|---|
| A | 3-5/64" |
| B | 25/32" |
| C | 7/16" |
| D | 53/64" |
| D Diameter | 25/64" |
| E | 25/64" |
| F | 4-1/16" |
| G | 2-1/8" |
Enhance the safety and efficiency of your marine operations with the Captive Pin Long D Shackle, a dependable choice for boaters and marine professionals alike.
