Wichard Marine  |  SKU: LOS-93128  |  Barcode: 768536014433

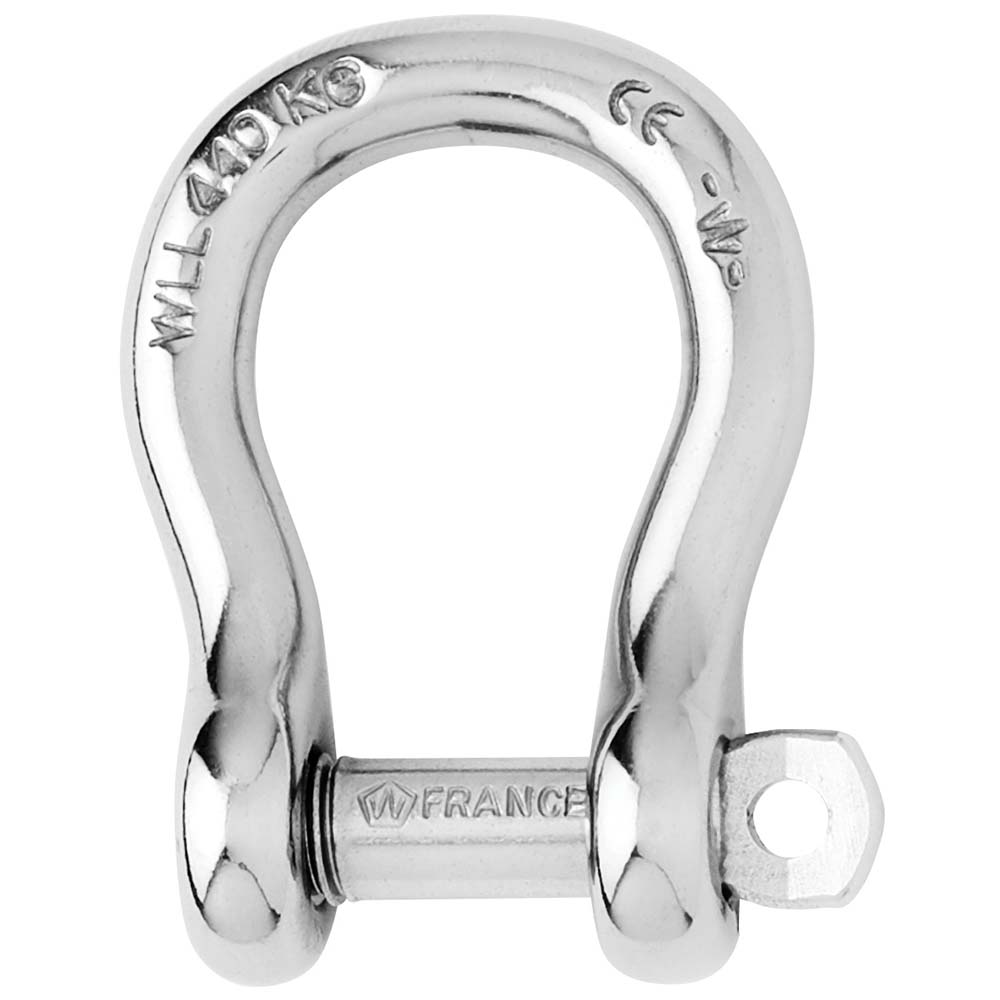

Wichard Captive Pin Bow Shackle - Diameter 6mm - 1/4"

$32.60 USD $44.10

Product Description

The Captive Pin Bow Shackle - Diameter 6mm - 1/4" is an essential component for marine and boating applications, offering superior strength and reliability even in the harshest marine environments. Crafted from high-grade 316L stainless steel, this bow shackle ensures longevity and performance for all your boating needs.

Features:

  • Forged from grade 316L stainless steel for exceptional corrosion resistance
  • Captive pin design keeps the pin connected to the body at all times, even when open
  • Secure pin locking into one of the indentations prevents accidental opening
  • Vibration-resistant construction eliminates the risk of loosening
  • High working and breaking loads for robust performance
  • Single-handed operation enhances safety during use
  • Rated WLL for industrial lifting applications
  • Complies with CE marking standards and includes a batch number for traceability

Applications:

  • Ideal for situations requiring ample space for connections
  • Allows the attachment of multiple lines or cables simultaneously

Specifications:

Material 316 stainless steel grade
Working Load 1320 lb
WLL 970 lb
Breaking Load 4850 lb
Weight 0.073 lb

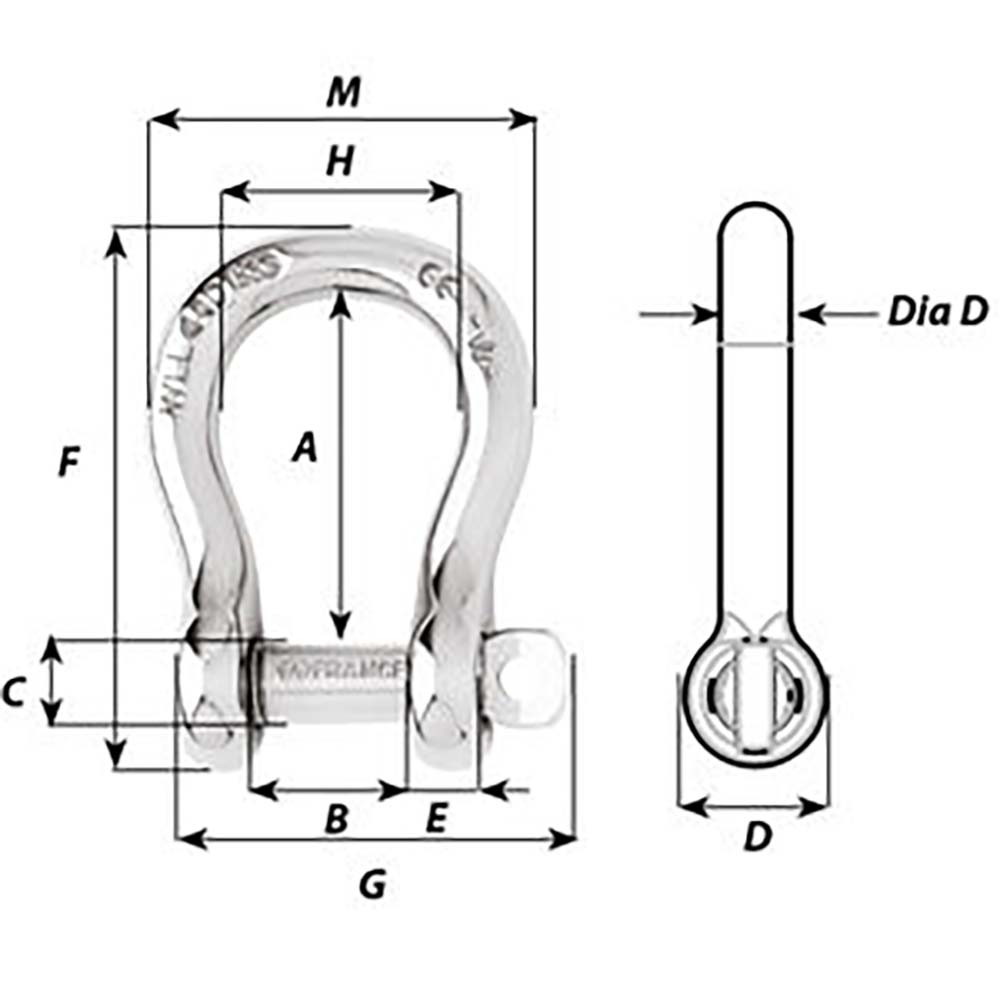

Dimensions:

Dimension Size
A (inch) 1-1/16"
B (inch) 15/32"
C (inch) 9/32"
D (inch) 35/64"
D Diameter (inch) 15/64"
E (inch) 15/64"
M (inch) 1-7/32"
