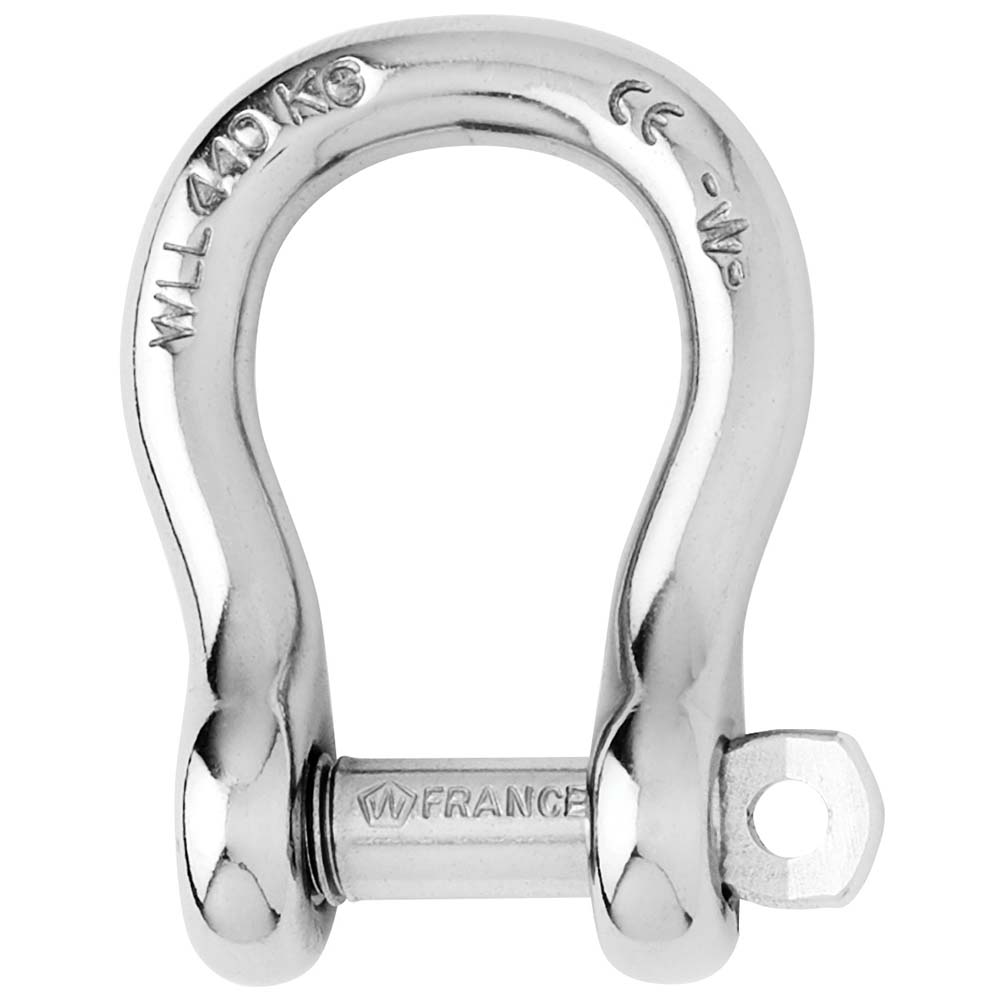

Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32"
Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Enhance the safety and reliability of your marine rigging with our premium Captive Pin Bow Shackle. Crafted specifically for the demanding marine environment, this bow shackle ensures secure connections for all your boating needs, providing peace of mind whether you're docking, anchoring, or handling sails.
Top-Notch Features
- Marine-Grade Construction: Forged from grade 316L stainless steel, offering exceptional resistance to corrosion and saltwater exposure.
- Secure Captive Pin: The pin remains connected to the shackle body at all times, even when opened, preventing loss during critical operations.
- Locking Mechanism: The pin locks securely into one of the indentations, ensuring a stable and safe connection.
- Vibration Resistant: Designed to eliminate the risk of loosening caused by constant vibrations, maintaining integrity in all conditions.
- High Load Capacity: Exceptional working and breaking loads, suitable for heavy-duty marine applications.
- Single-Handed Operation: Allows for safe and efficient handling, enhancing ease of use on board.
- Compliance and Traceability: CE marked with a batch number for quality assurance and traceability.
Perfect for Various Marine Applications
- Spacious Design: Ideal for situations where ample room is required, providing flexibility in your setup.
- Multiple Attachment Points: Enables the attachment of several lines or cables simultaneously, streamlining your rigging process.
Technical Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Working Load | 700 lbs |
| Working Load Limit (WLL) | 440 lbs |
| Breaking Load | 2200 lbs |
| Weight | 0.022 lbs |

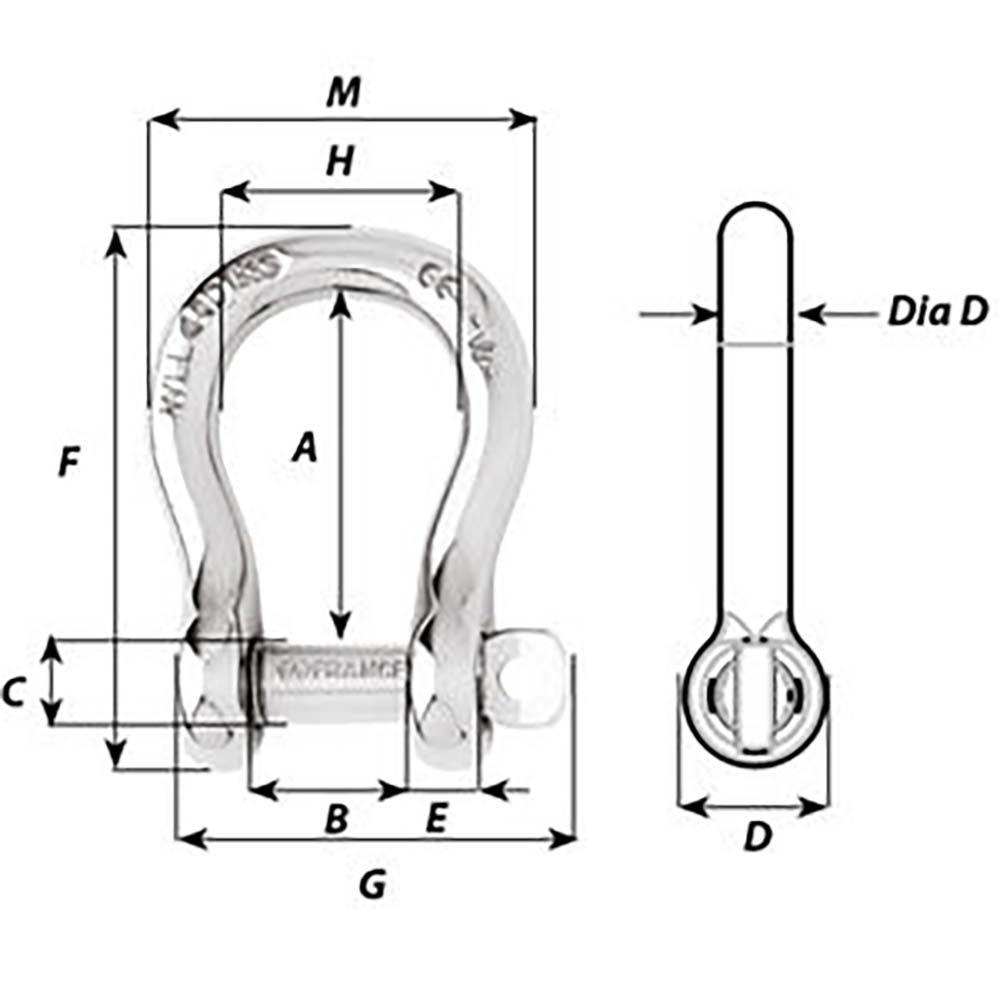

Detailed Dimensions
| Dimension | Size (inches) |
|---|---|
| A | 45/64" |
| B | 5/16" |
| C | 13/64" |
| D | 23/64" |
| D Diameter | 5/32" |
| E | 5/32" |
| M | 53/64" |
Upgrade your marine equipment with our reliable Captive Pin Bow Shackle, designed to meet the highest standards of durability and performance on the water.
