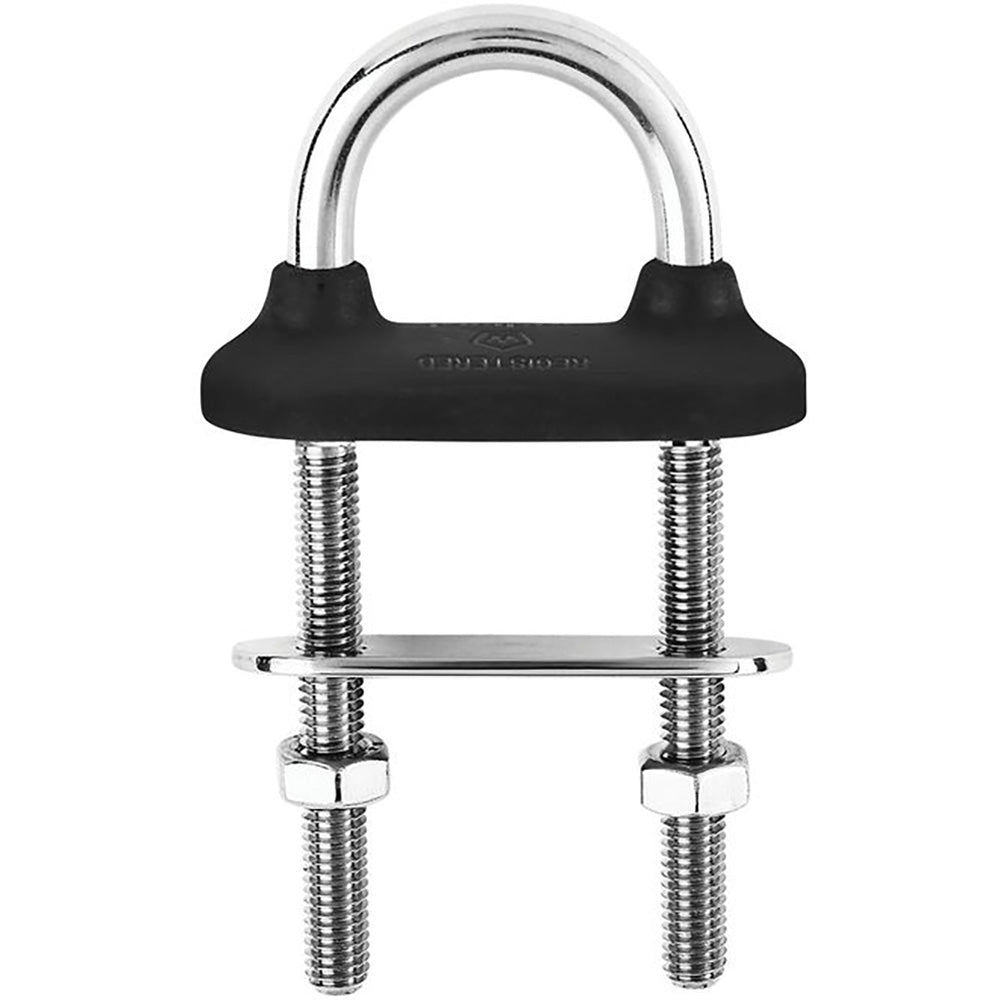

Wichard Black Watertight U-Bolt - 8mm Diameter - 5/16" - 100mm Length - 3-5/16"
Wichard Black Watertight U-Bolt - 8mm Diameter - 5/16" - 100mm Length - 3-5/16" is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Black Watertight U-Bolt is expertly designed for marine and boating applications, providing secure and reliable fastening solutions in harsh marine environments. Crafted from high-quality 316L stainless steel, this U-bolt ensures durability and resistance against corrosion, making it an essential component for your vessel's rigging and fastening needs.
Features
- High-Quality Construction: Fully drop-forged from premium 316L stainless steel for exceptional strength and longevity.
- Superior Load Capacity: Offers outstanding working and breaking loads, ensuring safe and reliable performance.
- Water-Tight Design: Equipped with a resistant rubber collar in black, providing complete water-tightness without the need for additional sealants.
- Easy Installation: Simplifies the installation process, allowing for quick and hassle-free setup on your boat.
- Complete Hardware Package: Delivered with bolts and a counter-plate for immediate use.
- Optimal Torque: Maximum tightening torque of 18 Nm ensures secure fastening without over-tightening.
Applications
Ideal for a wide range of marine and boating applications, including but not limited to:
- Securing shrouds and lifelines
- Attaching blocks and other rigging components
- Fastening deck hardware and fittings
- General-purpose marine fastening needs
Specifications
| Material | 316L Stainless Steel Grade |
|---|---|
| Color | Black |
| Working Load | 5290 lb / 2400 kg |
| Breaking Load | 10580 lb / 4800 kg |
| Weight | 0.3 lb / 136 g |

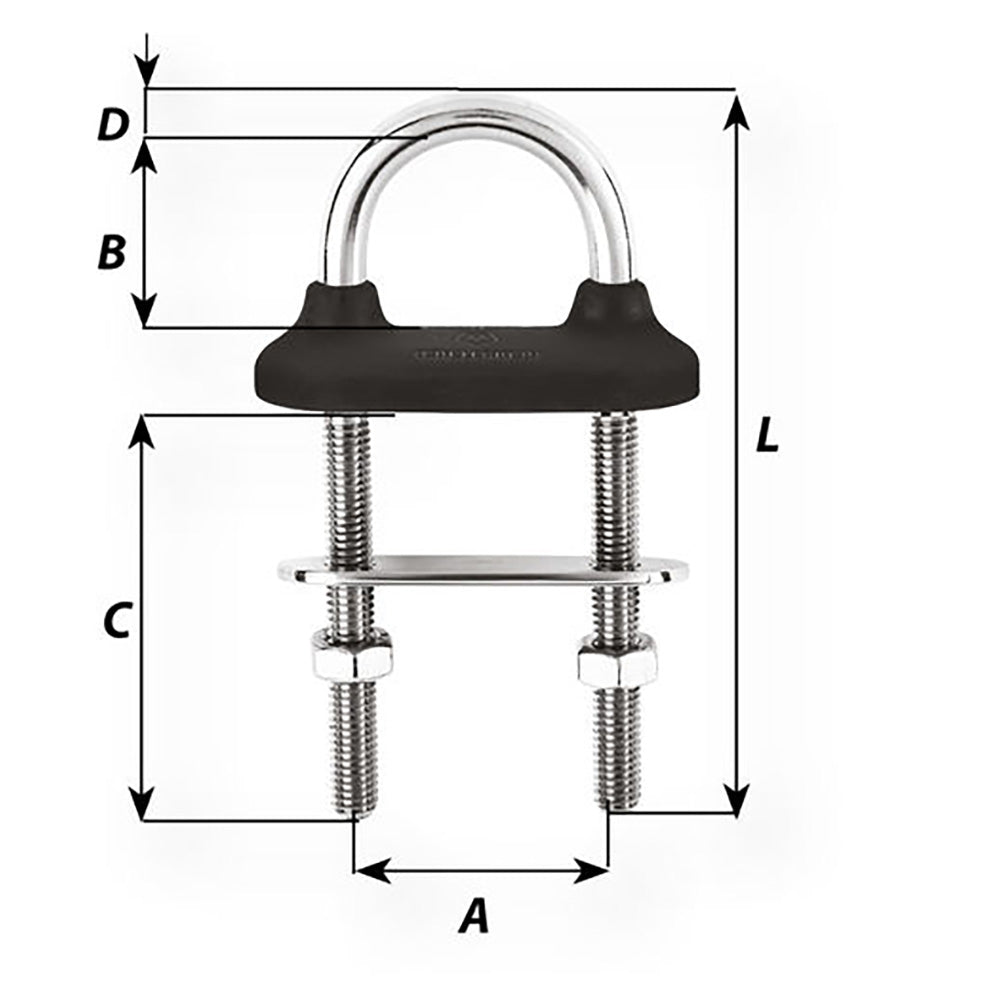

Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| Length | 3 15/16" | 100 mm |
| A | 1 27/64" | 36 mm |
| B | 63/64" | 25 mm |
| C | 2 23/64" | 60 mm |
| D Diameter | 5/16" | 8 mm |
Load Ratings
- Working Load (WL): Suitable for various nautical applications, ensuring safe and reliable performance under typical usage conditions.
- Working Load Limit (WLL): Intended for industrial applications only. Calculated as the breaking load divided by a safety factor of 5, providing an added layer of safety.
Note: Sold as an individual unit.
