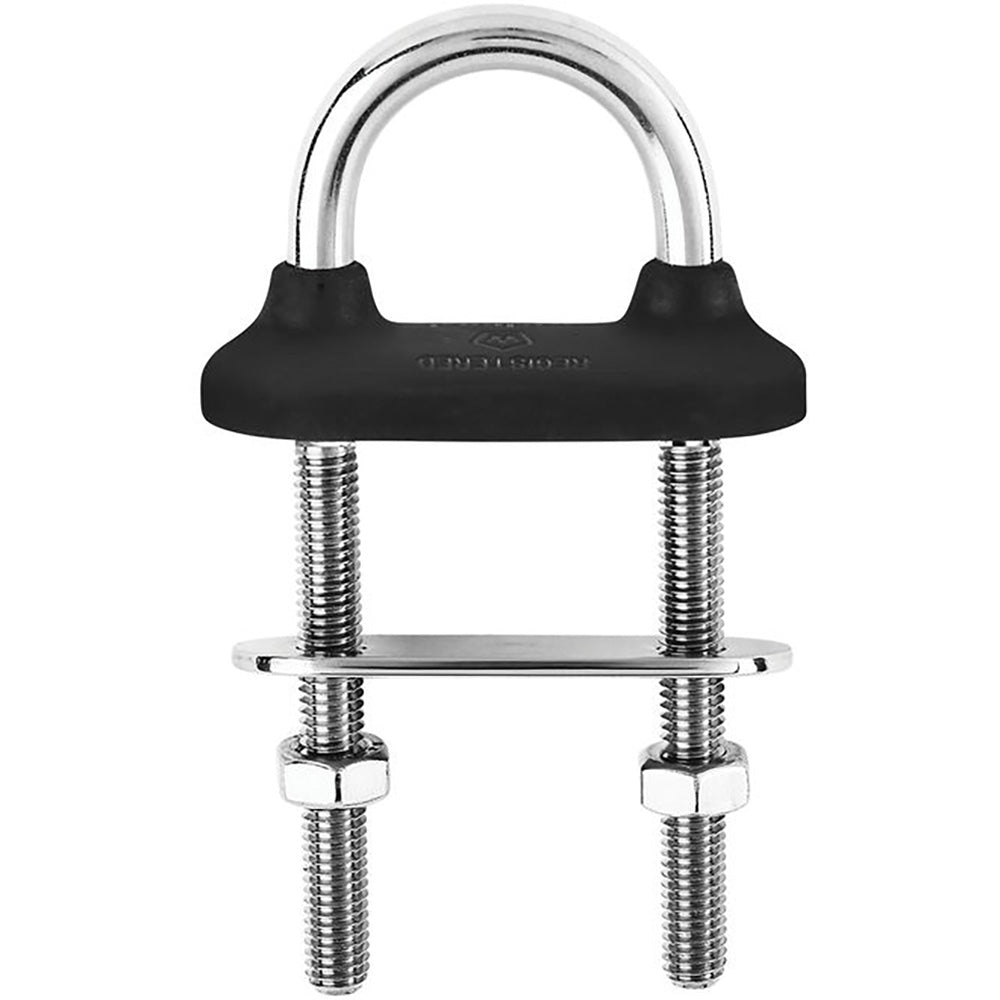

Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

Secure your marine equipment with our Black Watertight U-Bolt, expertly crafted to provide reliable fastening solutions for all your boating needs. Designed with durability and functionality in mind, this U-Bolt ensures a watertight seal, protecting your installations from the harsh marine environment.

Features

• Fully drop-forged using high-quality 316L stainless steel for superior corrosion resistance
• Exceptional working and breaking loads, ensuring maximum safety and reliability
• Enhanced water-tightness with a durable rubber collar in sleek black finish
• Simple and quick installation process without the need for additional waterproof sealants
• Comes complete with bolts and a counter-plate for immediate use
• Maximum tightening torque: 60 Nm for secure fastening

Specifications

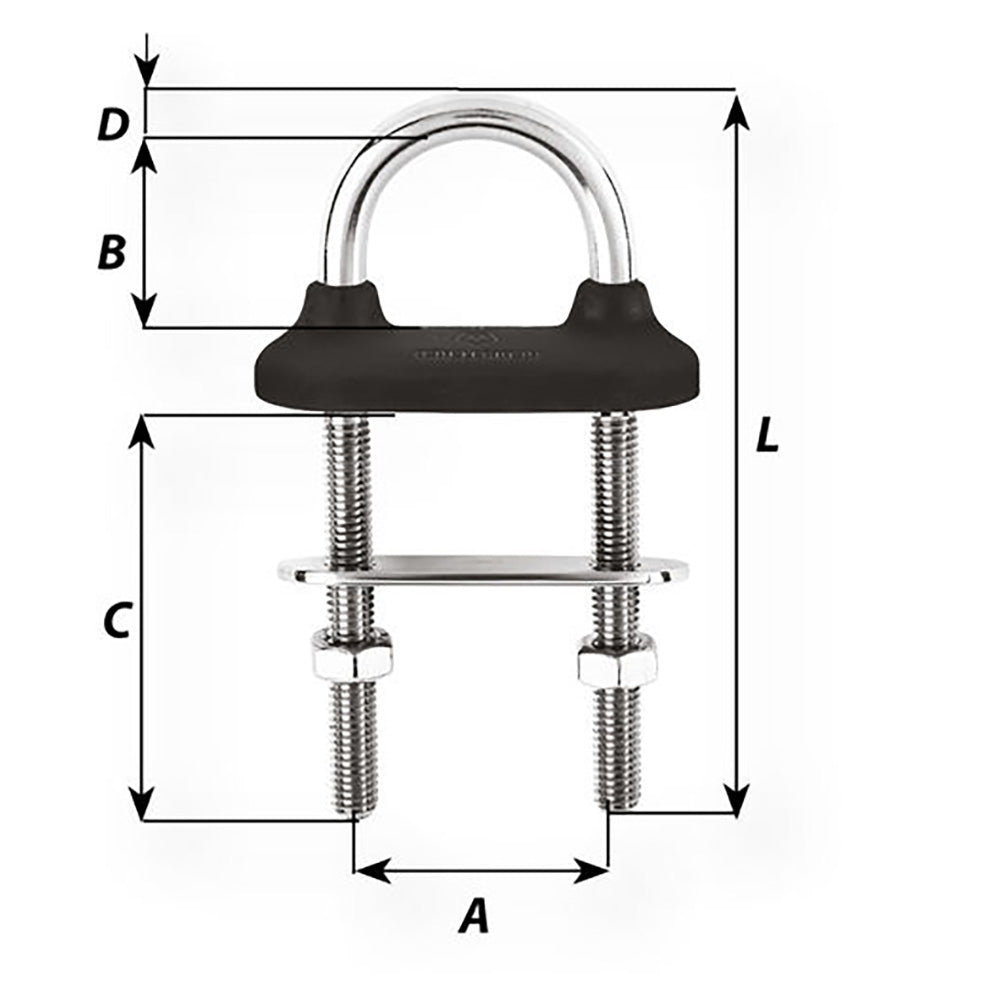

Dimensions

Applications

• Securing shrouds and lifelines for enhanced safety on deck
• Mounting blocks and other marine hardware with confidence
• General fastening tasks where a strong, water-resistant connection is required

Installation

Installing the Black Watertight U-Bolt is straightforward and efficient. Thanks to its robust design and included hardware, you can secure your marine components without the need for additional waterproof sealants. Follow these simple steps for a secure installation:

1. Position the U-Bolt around the desired equipment or fixture.
2. Insert the provided bolts through the U-Bolt and the mounting point.
3. Attach the counter-plate to evenly distribute the load.
4. Tighten the bolts to a maximum torque of 60 Nm to ensure a secure fit.
5. Verify the water-tightness provided by the rubber collar to prevent any leakage.

Safety Information

• Working Load (WL): Suitable for various nautical applications, ensuring safe and reliable performance.
• Working Load Limit (WLL): Intended for industrial applications only. Calculated as the breaking load divided by 5, providing a substantial safety factor.

*Sold as an individual unit.

Download the Quick Guide (PDF)
