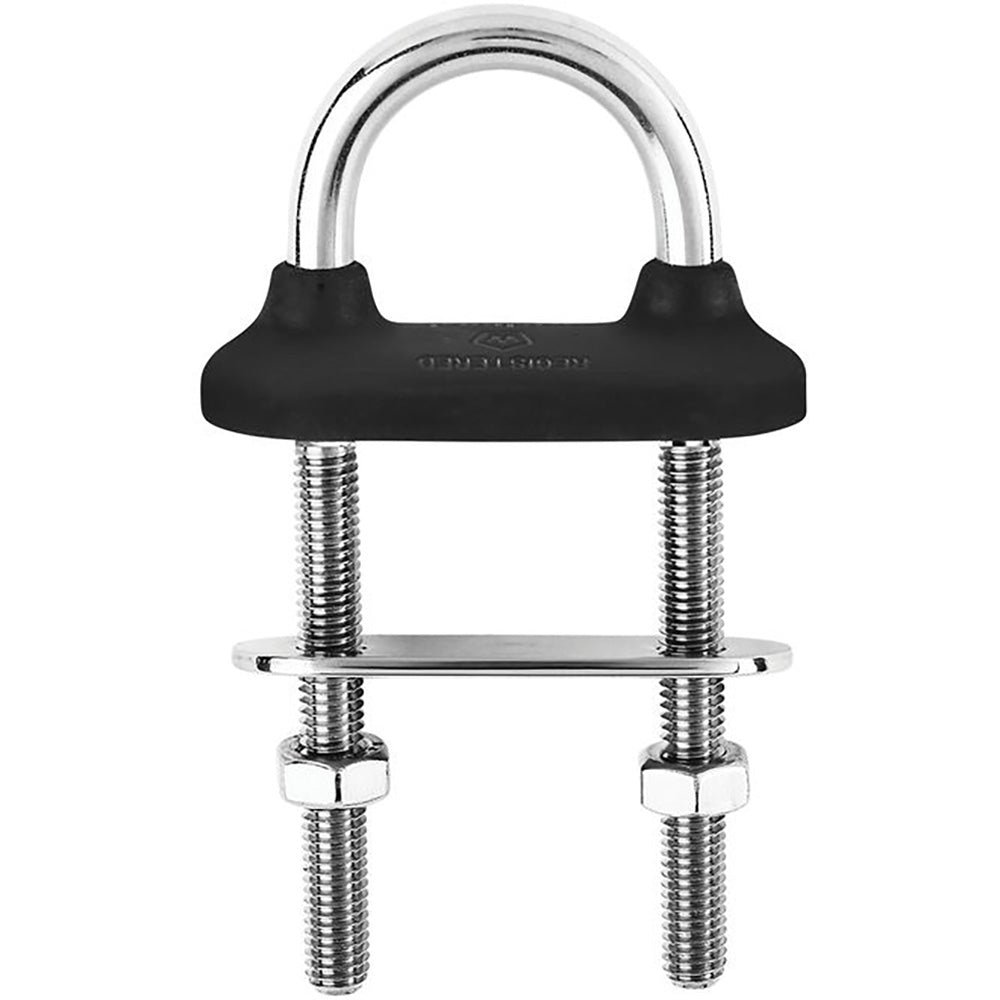

Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"

Black Watertight U-Bolt is engineered for marine and boating applications, providing secure and reliable fastening solutions. Crafted from premium 316L stainless steel through a fully drop-forged process, this U-Bolt offers exceptional strength and durability in harsh marine environments. Its water-tight design, featuring a resilient black rubber collar, ensures complete sealing without the need for additional waterproof sealants, making installation straightforward and efficient.

Features

• Fully drop-forged from high-quality 316L stainless steel for maximum durability
• Exceptional working and breaking load capacities for demanding applications
• Water-tight design with a resistant black rubber collar, eliminating the need for waterproof sealants
• Easy installation process
• Includes bolts and counter-plate for complete setup
• Maximum tightening torque: 60 Nm

Applications

• Ideal for various marine fastening needs, including shrouds, lifelines, and blocks

Specifications

Specification	Details
Material	316L Stainless Steel
Color	Black
Working Load	14,100 lb / 6,400 kg
Breaking Load	22,040 lb / 10,000 kg
Weight	0.761 lb / 345 g

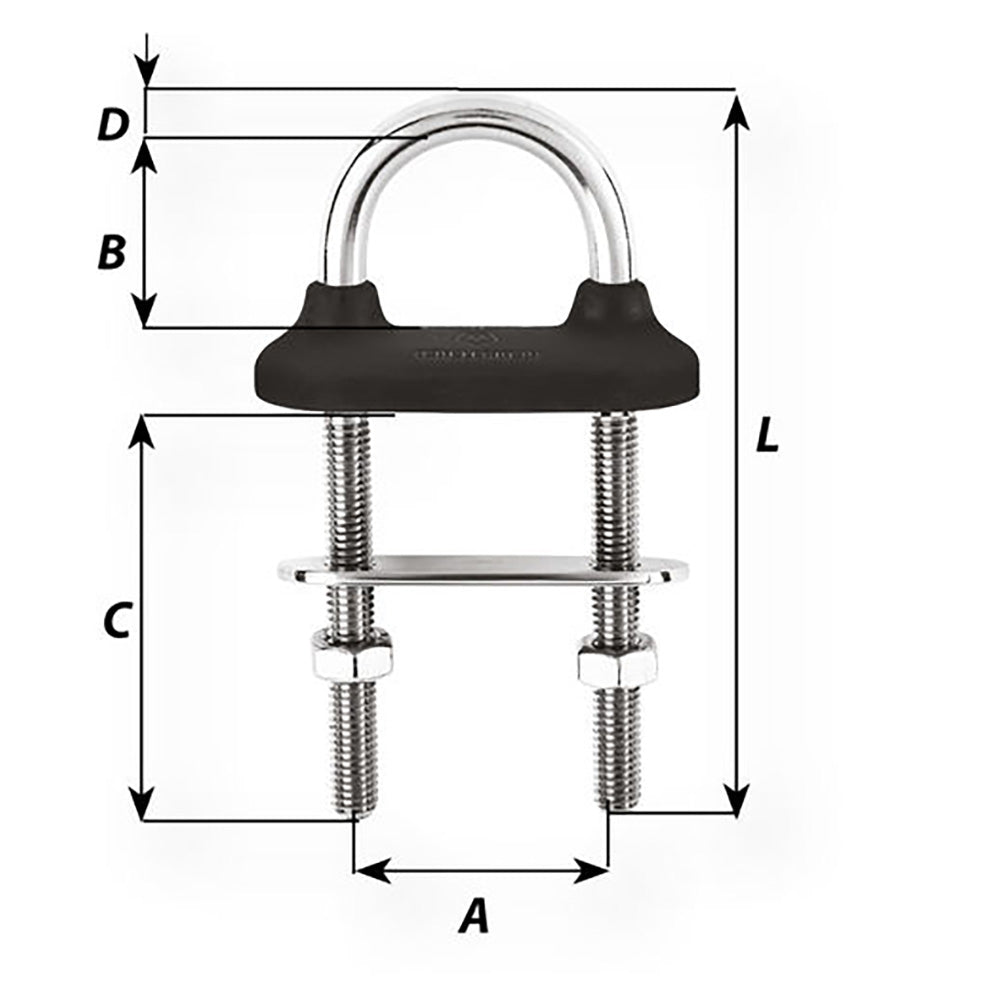

Dimensions

Dimension	Inches	Millimeters
Length	4 21/64"	110 mm
A	1 47/64"	44 mm
B	1 1/16"	27 mm
C	1 31/32"	50 mm
D Diameter	15/32"	12 mm

Additional Information

• Working Load (WL): Suitable for nautical applications
• Working Load Limit (WLL): Intended for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• *Sold as an individual item
