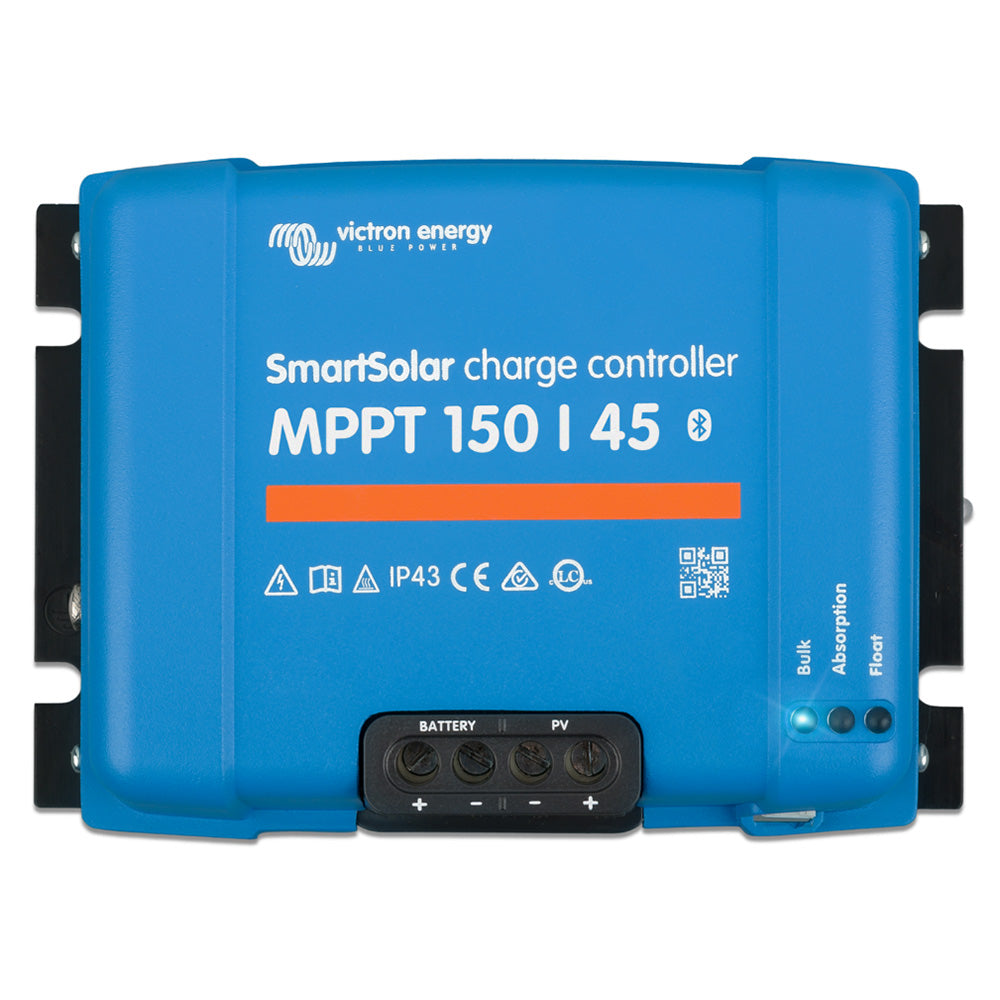

Victron SmartSolar MPPT 150/45 Solar Charge Controller

The SmartSolar MPPT 150/45 Solar Charge Controller is the perfect solution for marine enthusiasts looking to optimize their vessel’s energy system. Designed to efficiently manage and store energy from your solar panels, this charge controller ensures your boat's batteries are always charged and maintained, extending their lifespan and enhancing overall performance.

Why Choose SmartSolar MPPT 150/45 for Your Marine Power Needs

In the demanding marine environment, reliable power management is crucial. The SmartSolar MPPT 150/45 leverages cutting-edge Maximum Power Point Tracking (MPPT) technology to maximize energy harvest from your solar panels, ensuring that every ray of sunlight is converted into usable power. Whether you're navigating calm waters or facing variable weather conditions, this charge controller adapts seamlessly to provide consistent and efficient charging.

Key Features

• MPPT - Ultra Fast Maximum Power Point Tracking: Continuously monitors the voltage and current output of your solar panels to extract maximum power, especially effective under partial shading and fluctuating light conditions.
• Remote Monitoring and Control: Utilize built-in Bluetooth to pair with your smartphone or device via VictronConnect, allowing you to remotely monitor and manage your charge controller’s settings and performance.
• Advanced Maximum Power Point Detection: Optimizes performance even in partially shaded environments, ensuring reliable energy capture.
• Outstanding Conversion Efficiency: Achieves up to 98% efficiency, minimizing energy loss during the conversion process.
• Natural Convection Cooling: Maintains optimal operating temperatures without the need for additional cooling systems.
• Automatic Battery Voltage Recognition: Automatically detects and adjusts to different battery voltages (12V, 24V, 36V, 48V) for seamless integration.
• Flexible Charge Algorithm: Adapts to various battery types and charging requirements, ensuring optimal battery health.
• Over-Temperature Protection: Automatically derates power output when high temperatures are detected, protecting both the controller and your batteries.

Technical Specifications

Specification	Details
Dimensions (L x W x H)	7.3" x 5.2" x 2.8" (186 x 132 x 71mm)
Battery Voltage	12V / 24V / 36V / 48V
Rated Charge Current	45A
Max. PV Short Circuit Current	50A
Maximum Efficiency	98%
Data Communication Port	VE.Direct

What’s Included

• SmartSolar MPPT 150/45 Solar Charge Controller
• Instruction Manual

Sold individually.

Support and Resources

For any returns, repairs, or support related to this product, please contact your dealer directly.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
