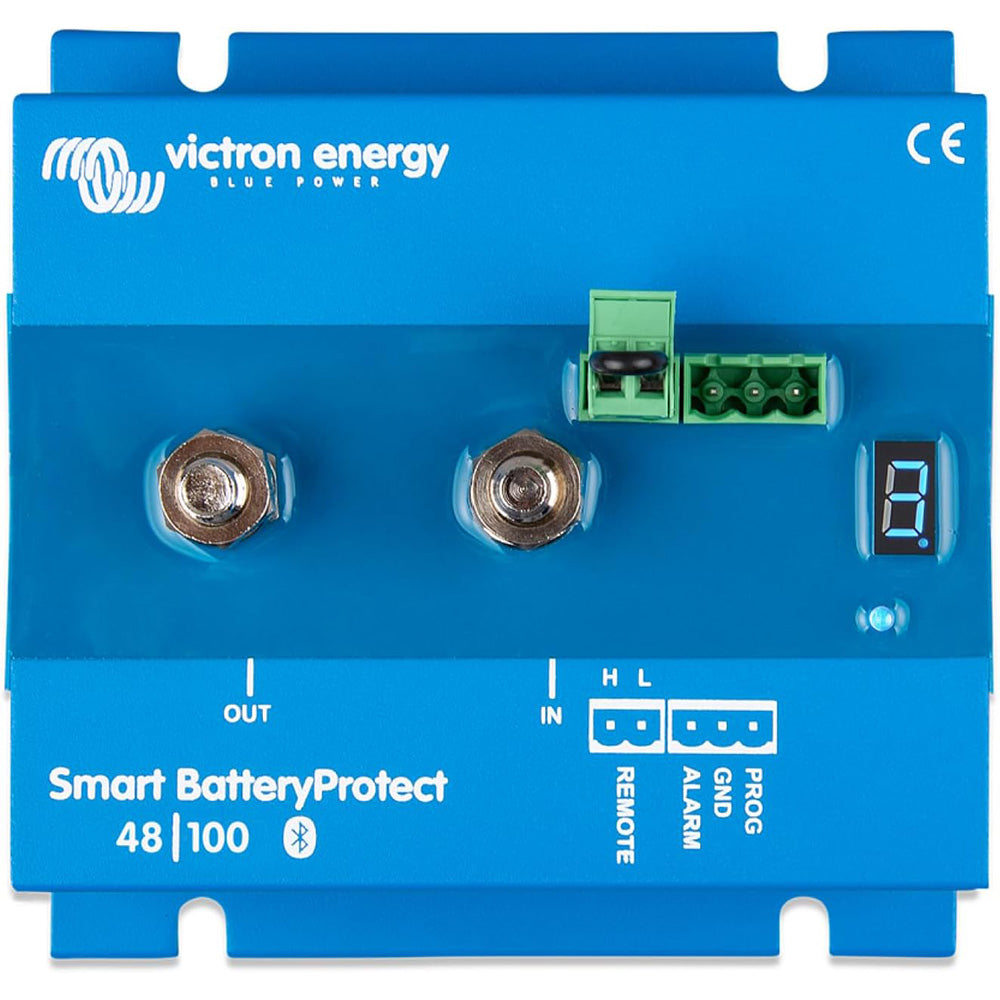

Victron Smart BatteryProtect 48V - 100A

The Smart BatteryProtect 48V - 100A is an essential device for marine and boating enthusiasts, ensuring your battery remains protected from complete discharge and maintains sufficient power to start your engine. Designed specifically for the demanding marine environment, it provides reliable battery management to keep your voyages smooth and worry-free.

Key Features

• Automatic Battery Protection: Disconnects non-essential loads before the battery is fully discharged, preventing potential battery damage and ensuring enough power is available to crank the engine.
• Bluetooth Programmable: Easily set custom engage and disengage voltage levels using the intuitive Bluetooth interface.
• Predefined Voltage Levels: Choose from nine preset engage/disengage levels using the programming pin for quick and easy setup.
• Unidirectional Current Flow: Manages current flow in one direction only, either to a load or from a charger, enhancing system reliability.
• Flexible Connection Options:
  • For Load Connections: Connect the battery to the IN terminal.
  • For Charger Connections: Connect the charger to the IN terminal.

How It Works

The Smart BatteryProtect monitors your battery's voltage levels and automatically disconnects non-essential loads when the voltage drops below a predefined threshold. This ensures that your battery does not discharge completely, which can cause irreversible damage. Additionally, it maintains enough power to start your engine, preventing situations where the boat fails to start due to low battery.

Programming and Configuration

Customize the Smart BatteryProtect settings to match your specific needs:

1. Bluetooth Programming:
   • Connect to the device via Bluetooth using the dedicated app.
   • Set your desired engage and disengage voltage levels.
   • Disable Bluetooth if preferred for your setup.
2. Predefined Levels:
   • Use the programming pin to select from nine predefined voltage levels.
   • Quick and easy setup without the need for a smartphone.

Technical Specifications

Specification	Details
Voltage	48V
Current Rating	100A
Directionality	Unidirectional (IN to OUT)
Connectivity	Bluetooth and Programming Pin
Operating Temperature	-20°C to +60°C
Dimensions	Dimensions details here
Weight	Weight details here

Installation Guidelines

Installing the Smart BatteryProtect is straightforward:

1. For Load Connections:
   • Connect the battery to the IN terminal.
   • Connect your non-essential loads to the OUT terminal.
2. For Charger Connections:
   • Connect your charger to the IN terminal.
   • Ensure proper polarity and secure connections.
3. Programming:
   • Use Bluetooth or the programming pin to set your desired voltage levels.
   • Refer to the Quick Guide for detailed programming instructions.

Support and Warranty

Please contact your dealer for any returns, repairs, or support issues related to the Smart BatteryProtect 48V - 100A.

Resources

Download the Quick Guide (PDF)
