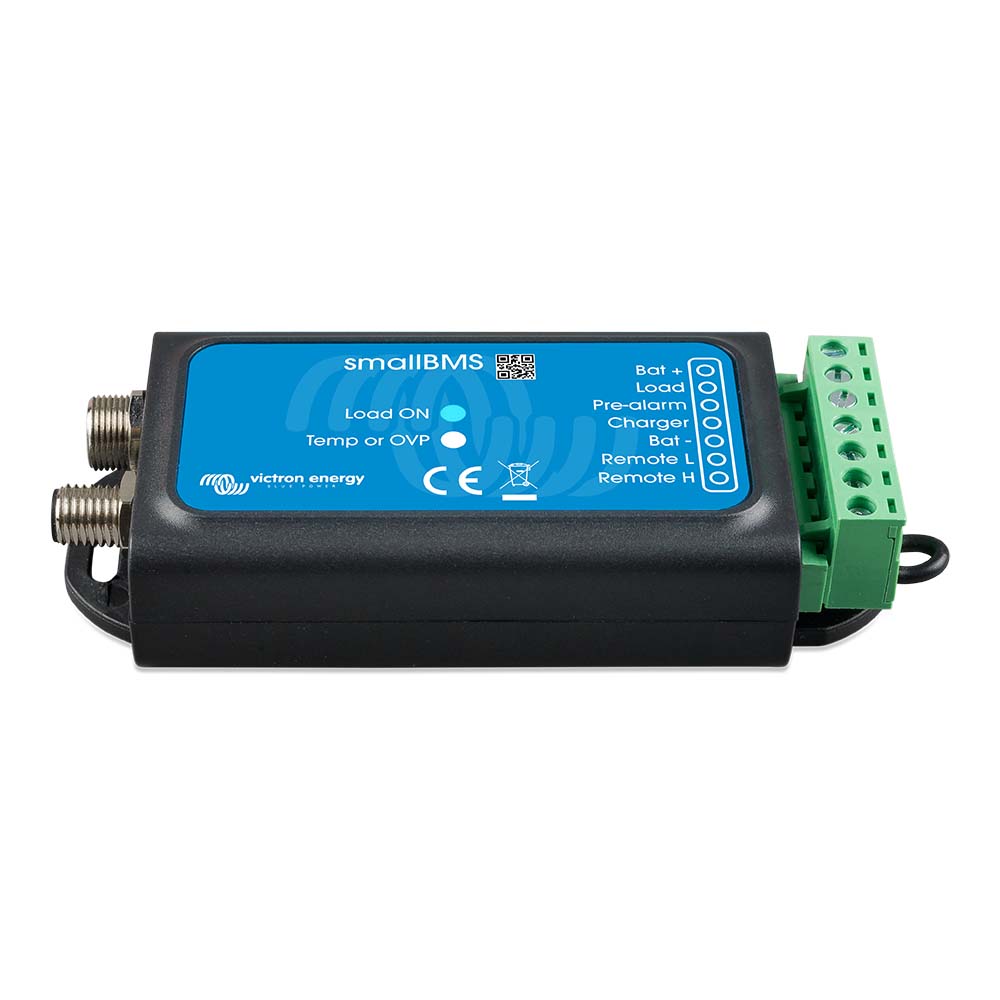

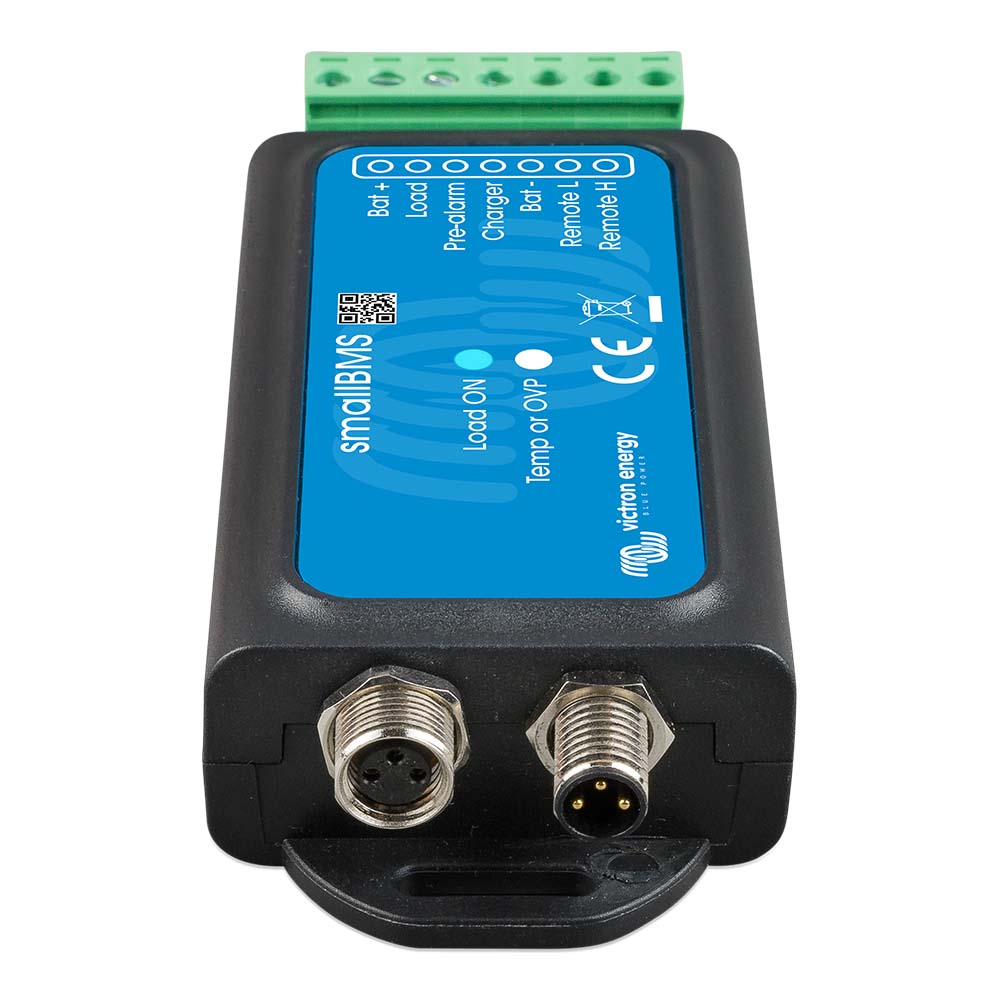

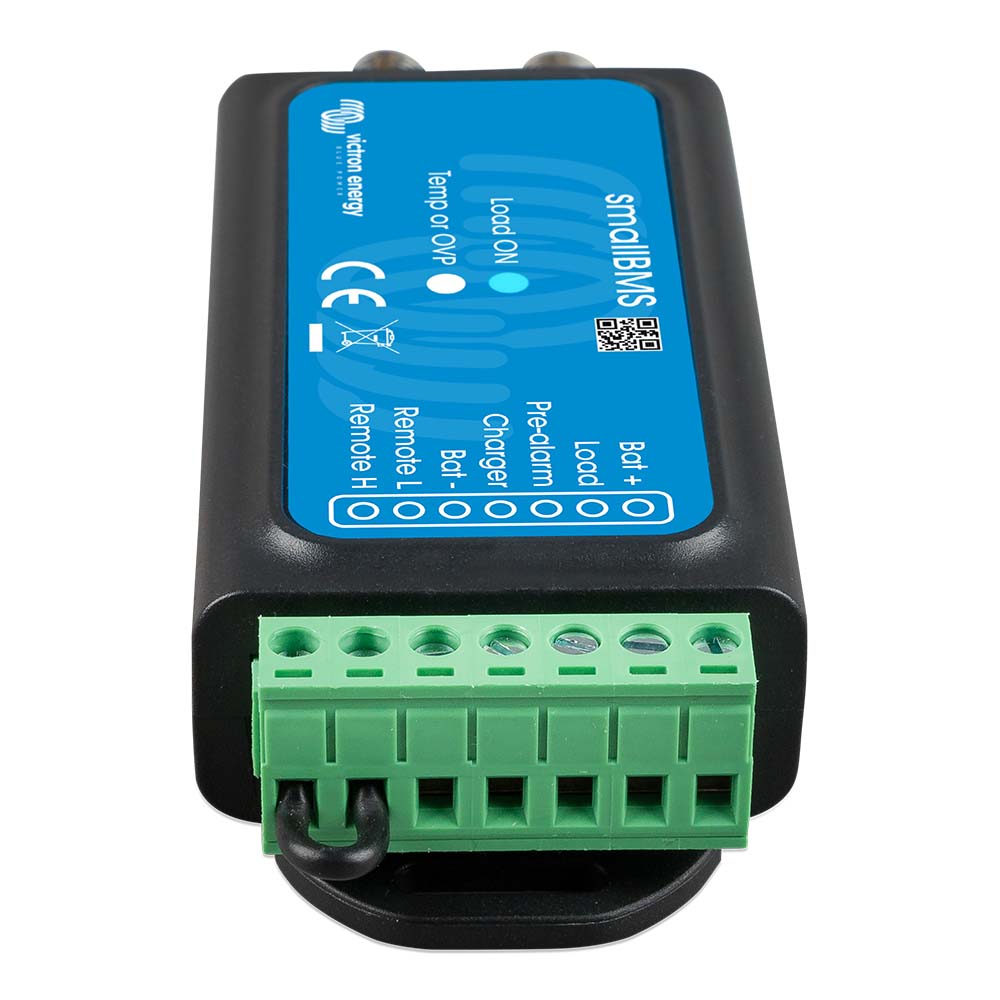

Victron SmallBMS f/Smart LiFePO4 Batteries w/M8

The smallBMS is a reliable and cost-effective Battery Management System designed specifically for Smart LiFePO4 batteries with M8 circular connectors, making it an excellent choice for marine and boating applications. It offers a seamless replacement for the VE.Bus BMS in various setups, ensuring optimal performance and safety for your marine power systems.

Key Features

• Compatible with Victron Smart LiFePO4 batteries using M8 connectors
• Supports 12V, 24V, and 48V systems with an operating voltage range of 8 to 70V DC
• Three versatile output ports for enhanced control and monitoring
• LED indicators for easy status monitoring
• Simple installation and integration with existing marine setups

Output Ports

The smallBMS is equipped with three distinct outputs, each serving a specific function to ensure comprehensive management of your battery system:

Load Disconnect Output

The Load Disconnect output is normally in a high state and becomes free-floating if the cell voltage drops below the set threshold (default 2.8V per cell, adjustable between 2.6V and 2.8V). This output can handle a maximum current of 1A and is not short-circuit protected.

Applications:

• Control a high current relay or contactor
• Manage the remote on/off for Battery Protect units, inverters, DC-DC converters, or other connected loads

Pre-Alarm Output

The Pre-Alarm output remains free-floating under normal conditions and activates to a high state when cell voltage approaches the under-voltage threshold (default 3.1V per cell, adjustable between 2.85V and 3.15V). It supports a maximum current of 1A without short-circuit protection. A minimum delay of 30 seconds exists between the pre-alarm activation and load disconnect.

Charge Disconnect Output

The Charge Disconnect output is normally high and becomes free-floating in the event of imminent cell overvoltage or over-temperature conditions. It supports a maximum current of 10mA and is not suitable for driving inductive loads like relay coils.

Applications:

• Control the remote on/off of a charger
• Operate a Cyrix-Li-Charge relay
• Manage a Cyrix-Li-ct Battery Combiner

System On/Off Input

The System On/Off input manages both the Load and Charger outputs. When turned off, both outputs become free-floating, effectively disconnecting loads and chargers. This input consists of two terminals: Remote L and Remote H. You can connect a remote on/off switch or relay contact between these terminals, or alternatively, switch terminal H to battery positive or terminal L to battery negative.

Compatibility

The smallBMS is versatile and suitable for use with 12V, 24V, and 48V marine and boating power systems. Its broad operating voltage range of 8 to 70V DC ensures compatibility with a wide array of battery setups commonly found in marine environments.

LED Indicators

Installation and Support

Installing the smallBMS in your marine setup is straightforward, thanks to its compatibility with existing Victron Smart LiFePO4 batteries and standard M8 connectors. For detailed installation instructions, refer to the provided Quick Guide.

Need Assistance? Please contact your dealer for any returns, repairs, or support issues related to the smallBMS.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
