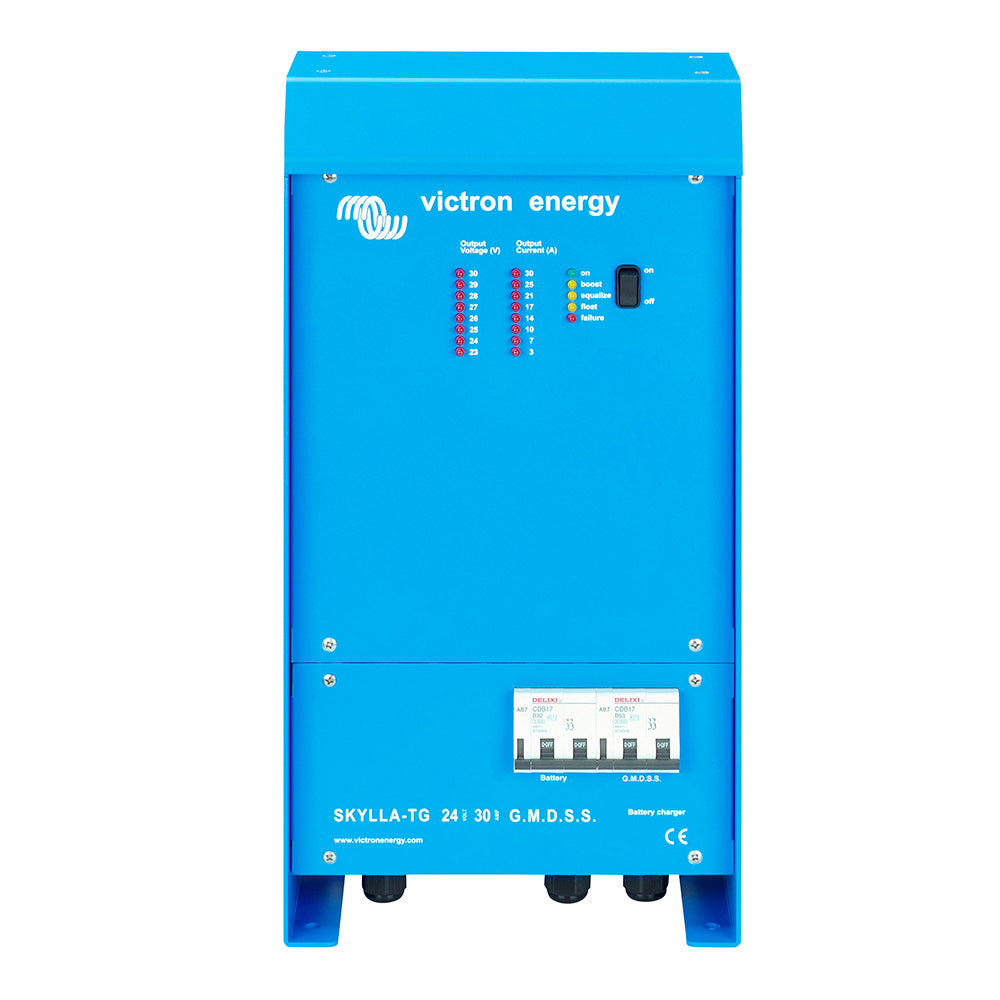

Victron Skylla-TG Charger - 24/30 GMDSS

The Victron Skylla-TG 24/30 GMDSS Charger is a reliable and efficient power solution tailored for marine and boating applications. Designed to seamlessly integrate with your vessel's battery and GMDSS system, this charger ensures optimal battery performance while providing essential monitoring and alarm functionalities to enhance maritime safety.

Key Features

• Designed specifically for GMDSS applications
• Integrated battery and GMDSS system connections
• Digital monitoring and alarm display via VE.Net GMDSS panel
• Simple installation with standard eight-wire UTP cable
• Precision charge voltage adjustment for various battery types
• Built-in battery controller with 'Time To Go' feature
• Robust protection mechanisms including output short circuit and temperature safeguards

Global Maritime Distress & Safety System (GMDSS)

The GMDSS, developed by the International Maritime Organisation (IMO), revolutionizes maritime distress and safety communications. Integrating the Skylla-TG Charger with your GMDSS system ensures reliable power management and real-time monitoring, critical for maintaining safety at sea.

Power Supply & Performance

The Skylla-TG Charger excels as both a battery charger and a power supply for GMDSS systems. Unlike standard chargers, it eliminates the need for additional monitoring equipment by incorporating all necessary GMDSS functionalities directly into the unit.

Easy Installation: Seamless Integration

Installing the Skylla-TG Charger is straightforward. Connect both your battery and GMDSS system directly to the charger, and use the standard eight-wire UTP cable to link to the VE.Net GMDSS digital panel (available separately). This plug-and-play setup minimizes installation time and complexity.

User-Friendly Settings: No Adjustments Needed

The charger is pre-programmed for GMDSS operations, allowing for immediate use upon installation. An intuitive menu interface provides the flexibility to modify settings as needed, ensuring the system adapts to your specific requirements without hassle.

Advanced Battery Monitoring: Battery Time To Go

Equipped with a built-in battery controller, the Skylla-TG Charger continuously monitors battery capacity. In the event of a power supply blackout, the connected panel can display the estimated 'Time To Go,' providing crucial information for managing power usage during emergencies.

Compatibility: Perfect for Any Battery Type

Whether you use VRLA or flooded battery systems, the Skylla-TG Charger offers precise charge voltage adjustments to match your battery's specifications. This versatility ensures optimal charging performance and extends battery life across various marine battery types.

Technical Specifications

Parameter	Specification
Input Voltage (AC)	120 / 230 V
Input Voltage Range (AC)	90-265 V
Frequency	45-65 Hz
Power Factor	1
Charge Voltage ‘Absorption’ (DC)	28.5 V
Charge Voltage 'Float' (DC)	26.5 V
Charge Current	30 A (limited to 22 A at 110 V AC)
Charge Characteristic	IUoUo (three-step)
Temperature Sensor	Yes
Power Supply Mode	Yes
Forced Cooling	Yes
Protection Features	a) Output short circuit; b) Battery reverse polarity detection; c) Battery voltage too high; d) Temperature too high
Operating Temperature Range	-40 to +50 °C (-40 – 122 °F)
Humidity (non-condensing)	Max 95%

Enclosure Specifications

Feature	Specification
Material & Color	Aluminium (blue RAL 5012)
Battery Connection	Two 1.5 m cables
GMDSS Connection	One 1.5 m cable (directly from the battery)
230 V AC Connection	Three wire 2.5 mm² (AWG 6); Cable Length: 2 m
Protection Category	IP 21
Weight	6 kg (13 lbs)
Dimensions (H x W x D)	485 x 250 x 147 mm (19.1 x 9.9 x 5.8 in)

Included Accessories

• VE.Net GMDSS Panel: Available for separate purchase
• UTP Cable: Available for separate purchase

Compliance & Standards

• Safety: EN 60335-1, EN 60335-2-29
• Emission Immunity: EN 55014-1, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-3-3
• Maritime Navigation & Radiocomm: IEC 60945

Support & Service

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Specifications

Charger Input Voltage	120/230 V
Box Dimensions	9" H x 13" W x 23" L
Weight	19.2 lbs
UPC	8719076025726

Download Quick Guide (PDF)

Download Brochure (PDF)
