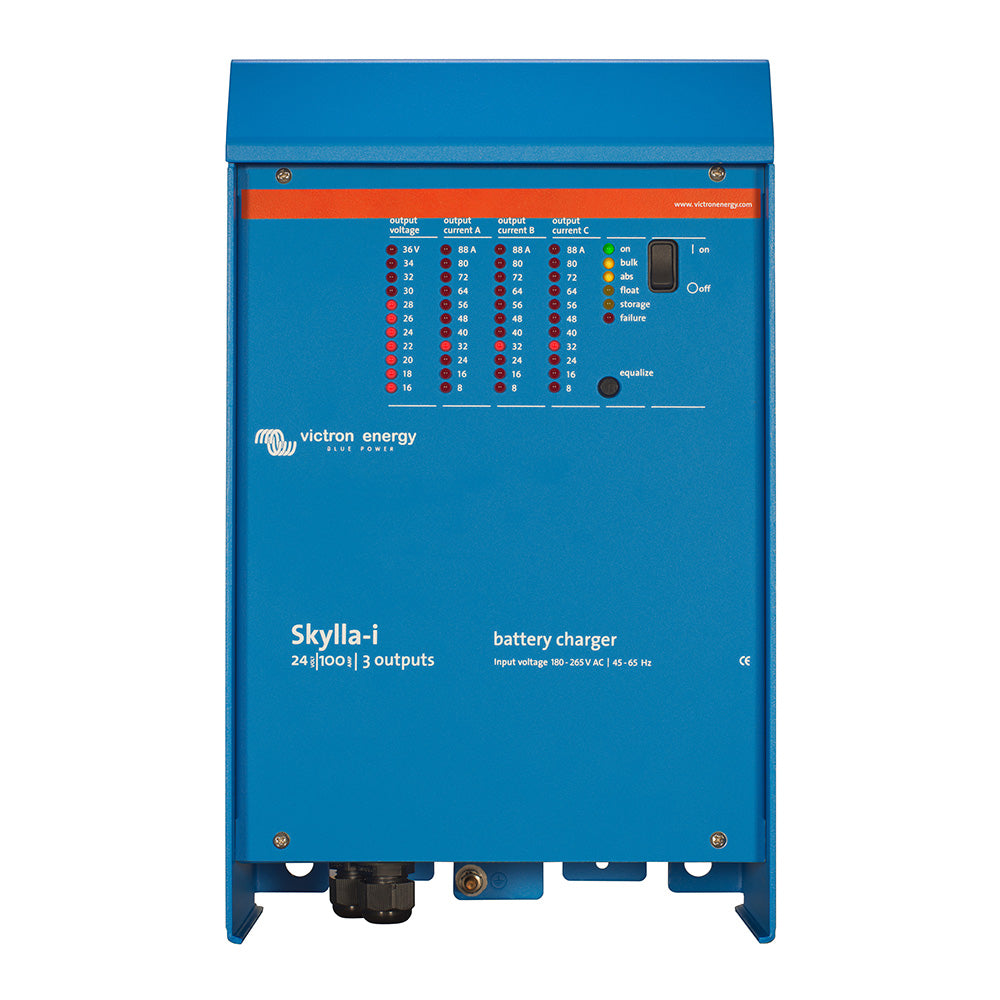

Victron Skylla-i Battery Charger 24/100 (3) 230V Battery Charger

The Skylla-i Battery Charger 24/100 (3) 230V is the ultimate charging solution tailored for marine and boating enthusiasts. Engineered with three isolated outputs, each capable of delivering the full rated output current, this charger ensures your boat’s batteries remain charged and ready, even in the most demanding conditions.

Key Features

• Rugged Construction: Built with aluminum epoxy powder-coated cases, drip shields, and stainless steel fixings, the Skylla-i withstands harsh marine environments including heat, humidity, and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Integrated temperature sensors automatically reduce output current to keep power components operating within safe limits.
• Flexible Charging Options: Equipped with a CAN bus (NMEA2000) interface, rotary switches, DIP switches, and potentiometers, allowing you to customize the charge algorithm to suit your specific battery type and usage conditions. Refer to the manual for comprehensive configuration options.
• Synchronized Parallel Operation: Link multiple chargers seamlessly via the CAN bus interface using RJ45 UTP cables. Note that two-output and three-output chargers are not compatible for paralleling. Detailed instructions are available in the manual.
• Optimized Charging for Lead-Acid Batteries: Features variable absorption time to prevent overcharging during shallow discharges and ensures complete recharging after deep discharges.
• BatterySafe Mode: Prevents damage from excessive gassing by automatically limiting the voltage increase rate when high charge currents and absorption voltages are used.
• Storage Mode: Minimizes battery maintenance and aging by reducing float voltage when the battery hasn’t been discharged for 24 hours. Periodically refreshes the battery to prevent electrolyte stratification and sulphation.
• Temperature Compensation: Includes a battery temperature sensor that adjusts charge voltage based on battery temperature, enhancing battery life, especially for sealed lead-acid and environments with fluctuating temperatures.
• Battery Voltage Sense: Compensates for voltage loss due to cable resistance, ensuring the battery always receives the correct charge voltage.
• Versatile Power Supply Options: Compatible with both AC and DC supplies, allowing for AC-DC and DC-DC operation. Can also function as a stable power supply when batteries or large buffer capacitors are unavailable.
• Li-Ion (LiFePO4) Ready: Supports simple on-off control via relay or optocoupler connected to a Li-Ion BMS, or complete voltage and current control through the isolated CAN bus port.

Technical Specifications

Parameter	Specification
Input Voltage (VAC)	230V
Input Voltage Range (VAC)	185-265V
Input Voltage Range (VDC)	180-350V
Maximum AC Input Current @ 180 VAC	20A
Frequency (Hz)	45-65Hz
Charge Voltage 'Absorption' (VDC)	28.8V
Charge Voltage 'Float' (VDC)	27.6V
Charge Voltage 'Storage' (VDC)	26.4V
Charge Current (A)	3 x 100A (Max Total Output: 100A)
Charge Algorithm	7-Stage Adaptive
Battery Capacity	500-1000Ah
Charge Algorithm (LiFePO4)	3 Stages with On-Off or CAN Bus Control
Temperature Sensor	Yes
Power Supply Mode	Yes
Remote On-Off Port	Yes (Compatible with Li-Ion BMS)
VE.Can Communication Port	Two RJ45 Connectors, NMEA2000 Protocol, Galvanically Isolated, Integrated 12V CAN-Bus Power Supply, Max 30V DC
Synchronized Parallel Operation	Yes, with VE.Can
Forced Cooling	Yes
Protection Features	Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
Operating Temperature Range	-20°C to 60°C (Full Output Current up to 40°C)
Material & Color	Aluminum (Blue RAL 5012)
Battery Connection	M8 Bolts
230 VAC Connection	Screw-Clamp 10mm² (AWG 7)
Protection Category	IP21
Weight	16 lbs (7 kg)
Dimensions (HxWxD)	405 x 250 x 150 mm (16.0 x 9.9 x 5.9 in)

Additional Specifications

• Charger Input Voltage: 230V
• Charger Output Amperage: 100A
• Charger Output Voltage: 24V
• Charging Banks: 3
• Portability: Not Portable
• Box Dimensions: 10"H x 14"W x 20"L
• Weight: 19.85 lbs
• UPC: 8719076026259

Note: Please contact your dealer for any returns, repairs, or support issues related to this product.

Download the Quick Guide (PDF)
